Tractor · 2010Unverified

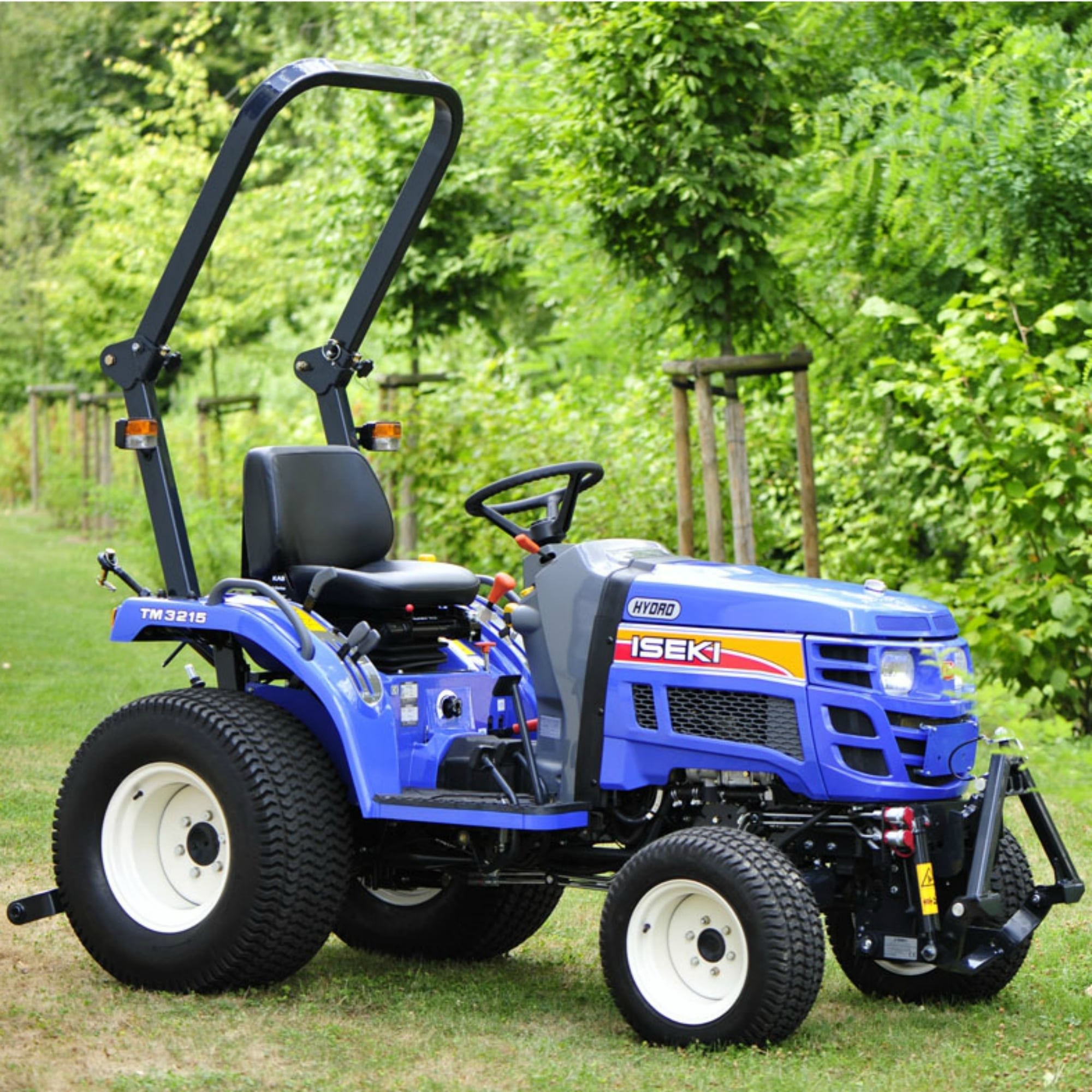

Iseki TM3215
Iseki TM3215 — TM Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1808 to 1830 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine14.3 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
hydrostaticReference
TypegearReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Pump flow20.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift600 kgReference
Rear PTOindependent (hydro)Reference
Clutchmechanical (gear)Reference
Clutchelectro-hydraulic (hydro)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM545@2500 (gear)Reference
Engine RPM550@2500 (hydro)Reference
Mid PTO Type2000Reference
Engine RPM2032@2500 (gear)Reference
Engine RPM2047@2500 (hydro)Reference
Dimensions
Wheelbase156 cmReference
Weight1808 to 1830 poundsReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12Reference
Ag rear9.5-16Reference
Lawn/turf front22x8.00-12Reference
Lawn/turf rear31x13.50-15Reference
Length280 cmReference
Width110 cmReference
Weight820 kgReference
Weight830 kgReference
Ground clearance23 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
