Tractor · 2019Unverified

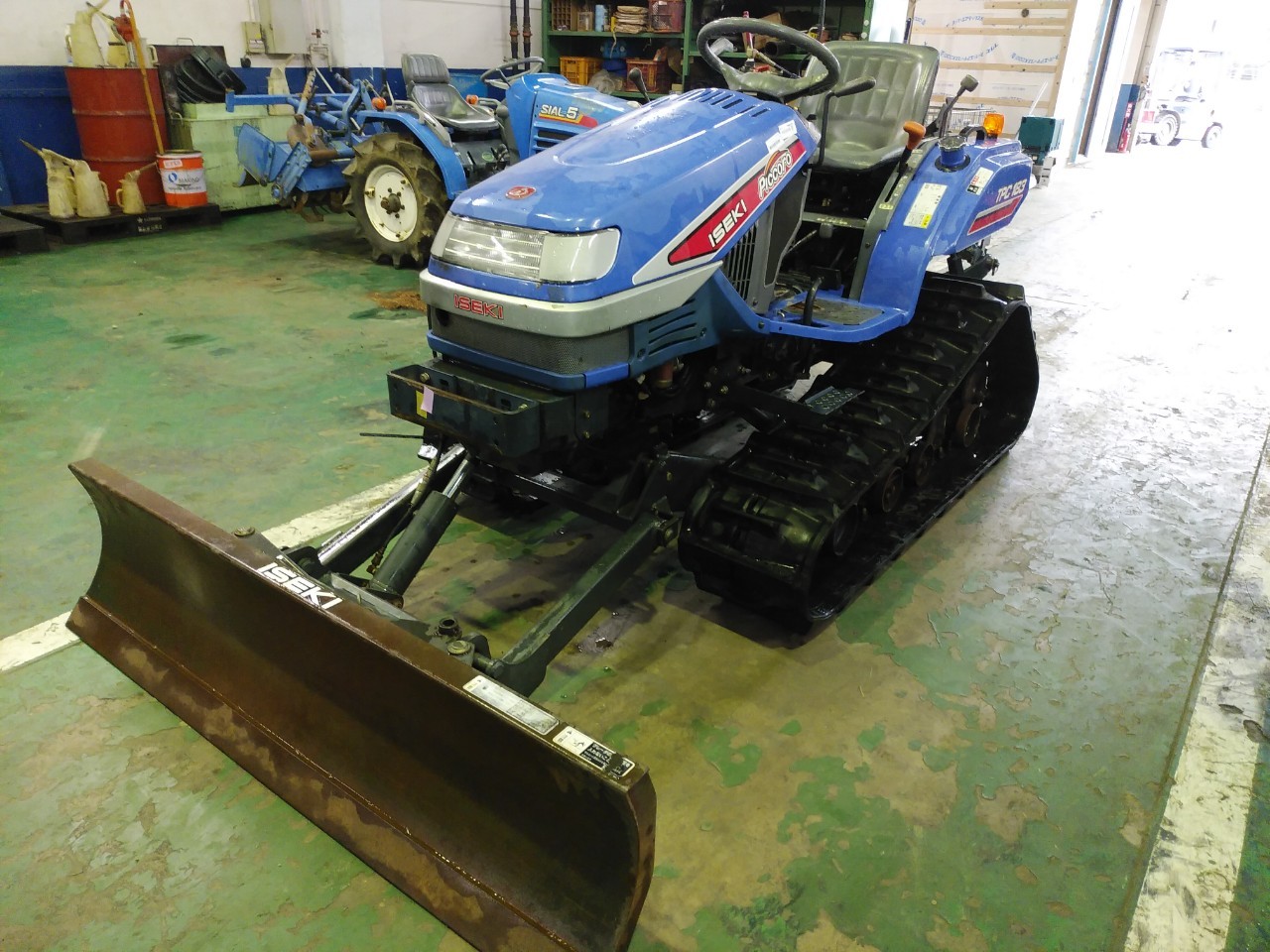

Iseki TPC183
Iseki TPC183 — TPC Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
889 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Two-post ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank21.2 LReference
Engine12.7 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power12.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
Four speeds in two ranges with shuttle.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM456@2500Reference
Engine RPM555@2500Reference
Engine RPM652@2500Reference
Dimensions
Weight889 kgReference
TracksReference
Length245 cmReference
Width120 cmReference
Height195 cmReference
Ground clearance32 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
