Tractor · 2000Unverified

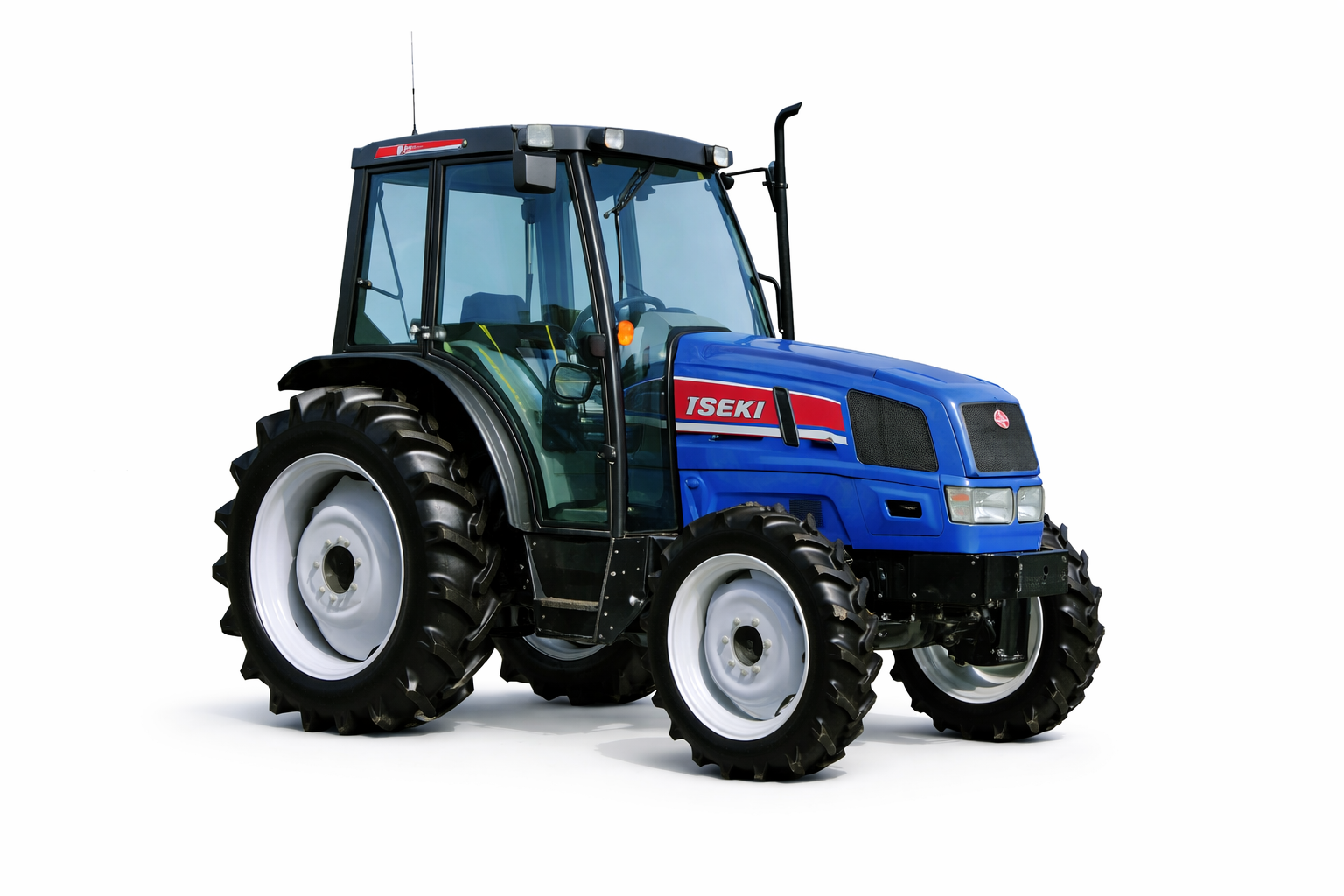

Iseki TR633
Iseki TR633 — TR Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
2459 kg
Hover a source tag to verify
Overview
DistributorIsekiReference
ManufacturerLandiniReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Variants
TR633Fwheeled tractorReference
TR633CFhalf-trackReference
Engine
Perkins 3.0L 4-cyl dieselReference
Fuel tank84.0 LReference
Engine46.3 kWReference
Perkins 704-30Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power46.3 kWReference
Compression17.5:1Reference
Rated RPM2600Reference
Torque210.0 NmReference
Torque RPM1600Reference
StarterelectircReference
Starter volts12Reference
Transmission
20-speedReference
Gears20 forward and reverseReference
Four in three standard ranges, plus two creeper ranges, with shuttle.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM580@2600Reference
Engine RPM827@2600Reference
Engine RPM1090@2600Reference
Engine RPM-545@2600Reference
Dimensions
Wheelbase200 cmReference
Weight2459 kgReference
Front tire8.3/8R24Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3/8R24. Rear: 12.4-32Reference
Length366 cmReference
Width167 cmReference
Height235 cmReference
Ground clearance40 cmReference
Front tread121 to 161 cmReference
Rear tread122 to 186 cmReference
Speeds
With 12.4-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
