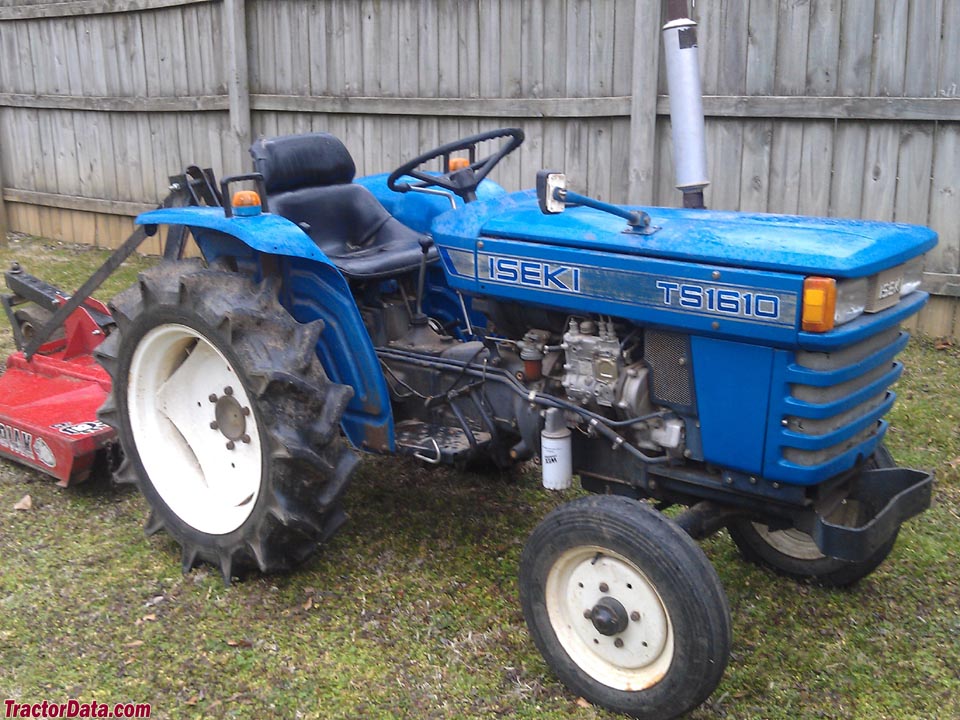

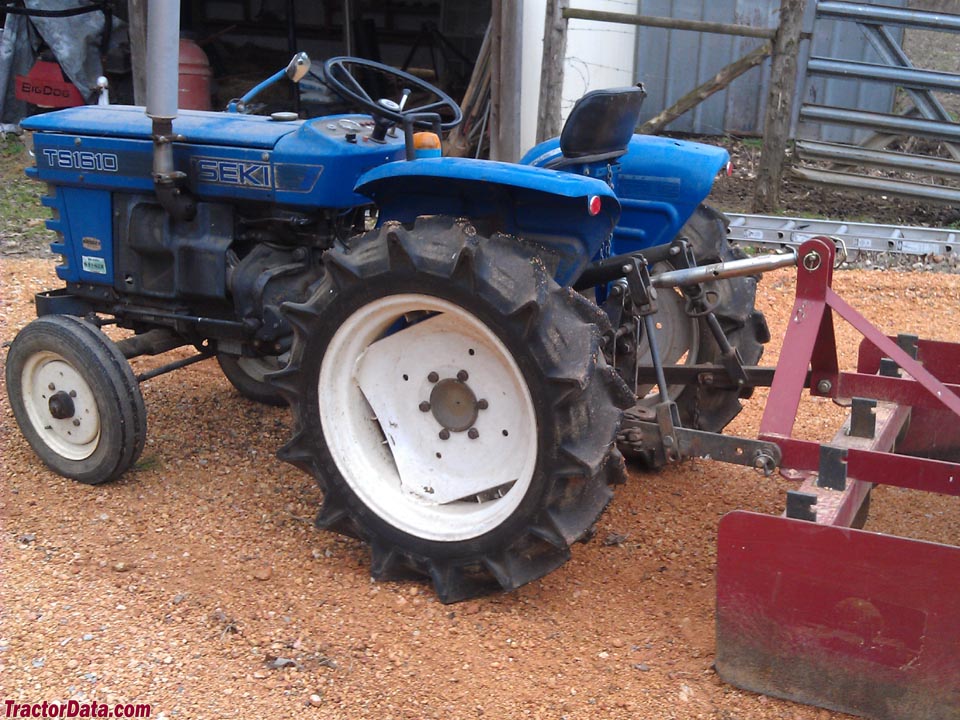

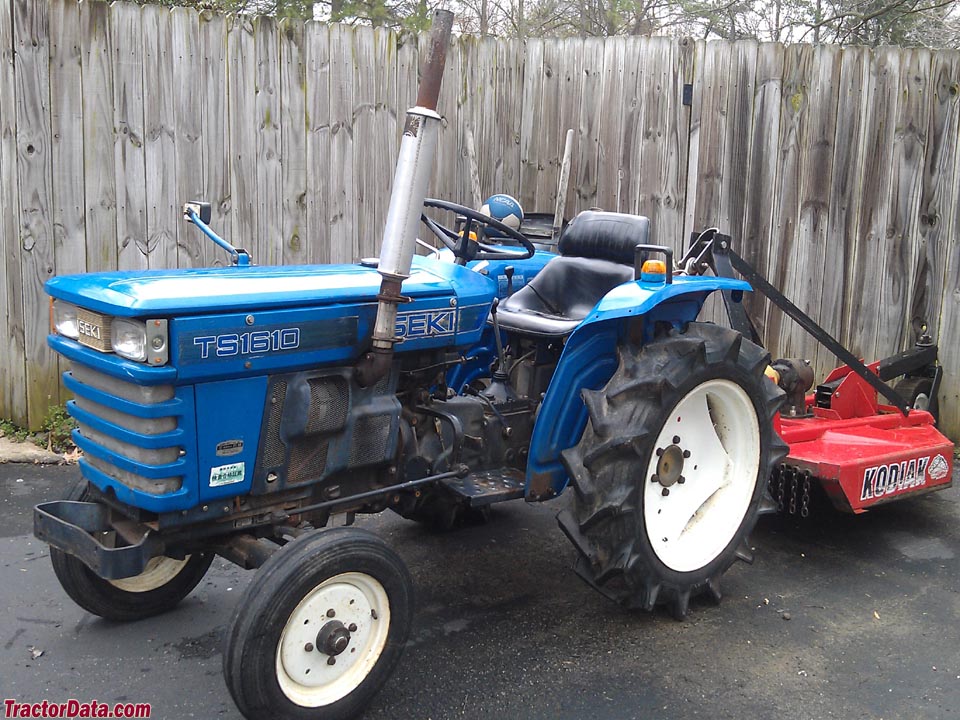

Iseki TS1610
Iseki TS1610 — TS SeriesCompact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1653 to 1863 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TS1610F4WDReference
Engine
Isuzu 1.0L 2-cyl dieselReference
Fuel tank15.9 LReference
Engine11.8 kWReference
Isuzu 2AA1Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke86 x 84 mmReference
Power11.8 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.6 LReference
Transmission
9-speed gearReference
18-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges. Additional creeper range available on four-wheel drive models.Reference
TypecreeperReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM2300@537Reference
Engine RPM2300@711Reference
Engine RPM2300@890Reference
Engine RPM2300@1274Reference
Dimensions
2WD Wheelbase134 cmReference
4WD Wheelbase137 cmReference
Weight1653 to 1863 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 8.3/8-22Reference
2WD Length226 cmReference
4WD Length227 cmReference
2WD Width108 cmReference
4WD Width112 cmReference
2WD Height191 cmReference
4WD Height193 cmReference
2WD Weight749 kgReference
4WD Weight845 kgReference
2WD Ground clearance28 cmReference
4WD Ground clearance25 cmReference
Front tread85 to 94 cmReference
Rear tread85 to 100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
