Tractor · 1984Unverified

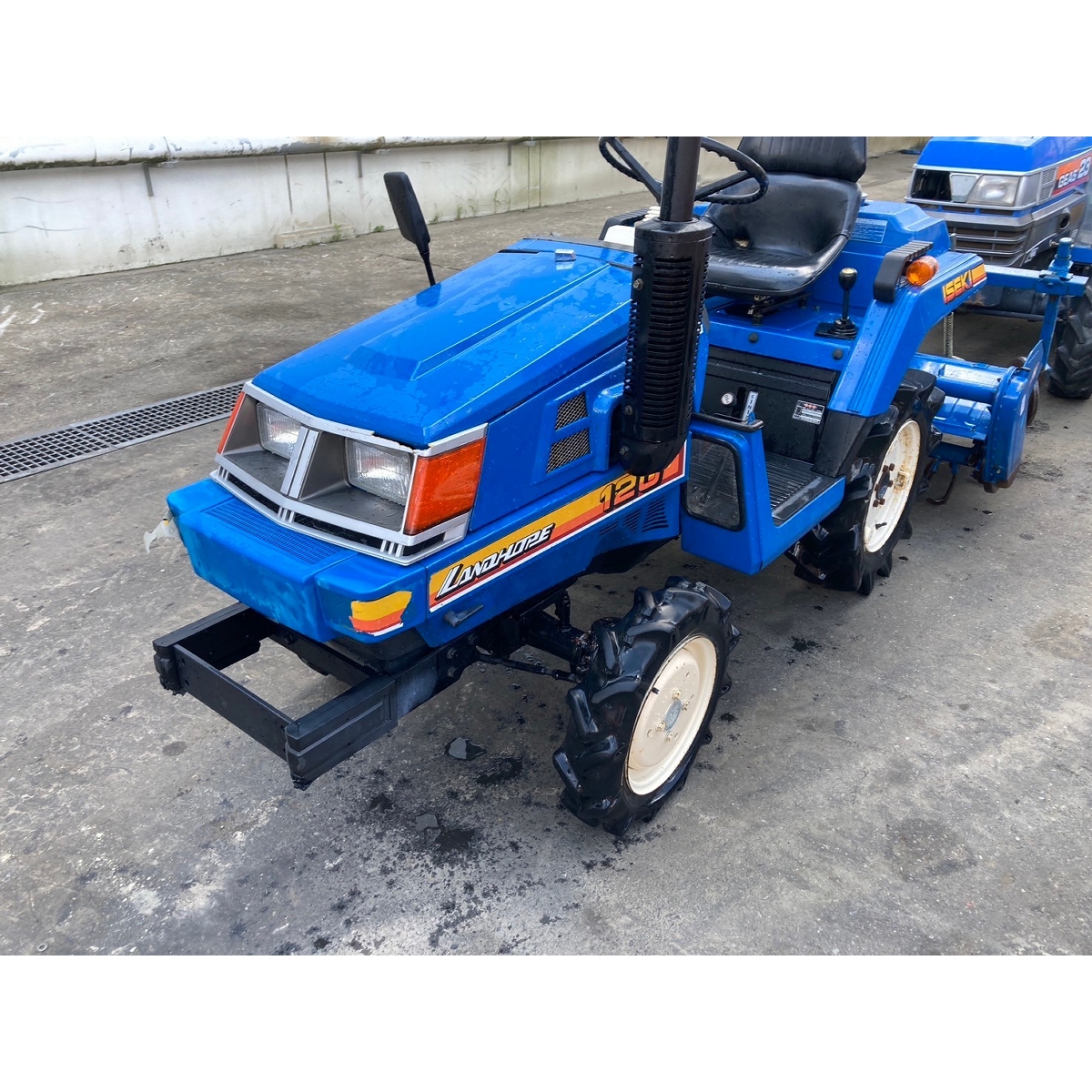

Iseki TU120
Iseki TU120 — Landhope TU Series · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
1268 to 1356 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU120F4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine8.8 kWReference
Mitsubishi K3AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke65 x 78 mmReference
Power8.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity5.5 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity13.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM437@2500Reference
Engine RPM696@2500Reference
Engine RPM1140@2500Reference
Dimensions
Wheelbase119 cmReference
Weight1268 to 1356 poundsReference
Front tire4.50-10Reference
2WD Rear tire7-14Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 7-14Reference
4WD Standard tires (ag)Front: 5-12. Rear: 7-14Reference
Length227 cmReference
Width100 cmReference
2WD Height168 cmReference
4WD Height168 cmReference
2WD Weight575 kgReference
4WD Weight615 kgReference
Ground clearance21 cmReference
2WD Front tread75/80 cmReference
4WD Front tread80 cmReference
Rear tread76/93 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
