Tractor · 1986Unverified

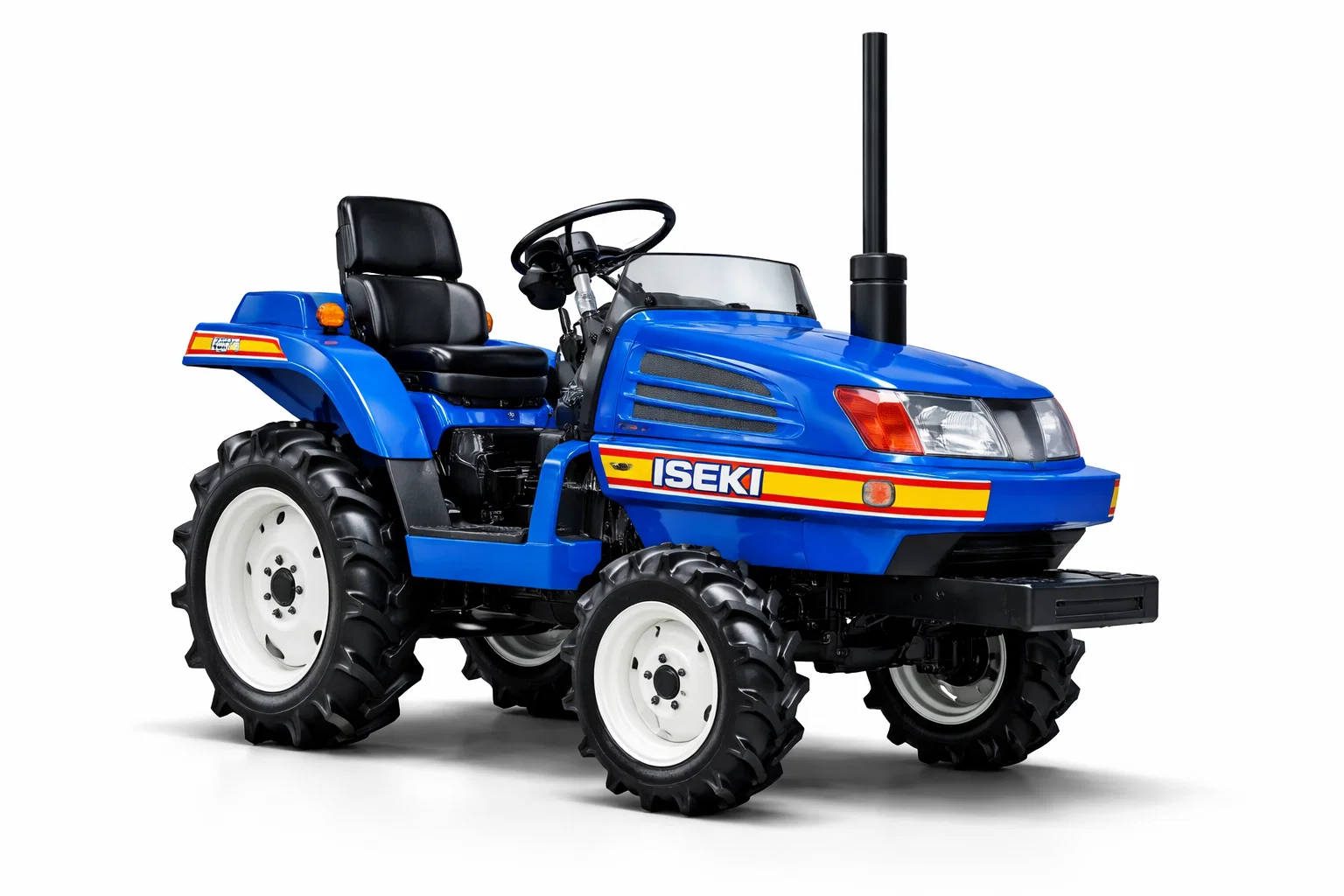

Iseki TU135F
Iseki TU135F — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
575 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine10.1 kWReference
Mitsubishi L3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Power10.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM437@2500Reference
Engine RPM696@2500Reference
Engine RPM1140@2500Reference
Dimensions
Wheelbase119 cmReference
Weight575 kgReference
Front tire5-12Reference
Rear tire7-16Reference
Ag front5-12Reference
Ag rear7-16Reference
Length211 cmReference
Width100 cmReference
Height (steering wheel)133 cmReference
Ground clearance23 cmReference
Front tread78 cmReference
Rear tread76 to 86 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
