Tractor · 1981Unverified

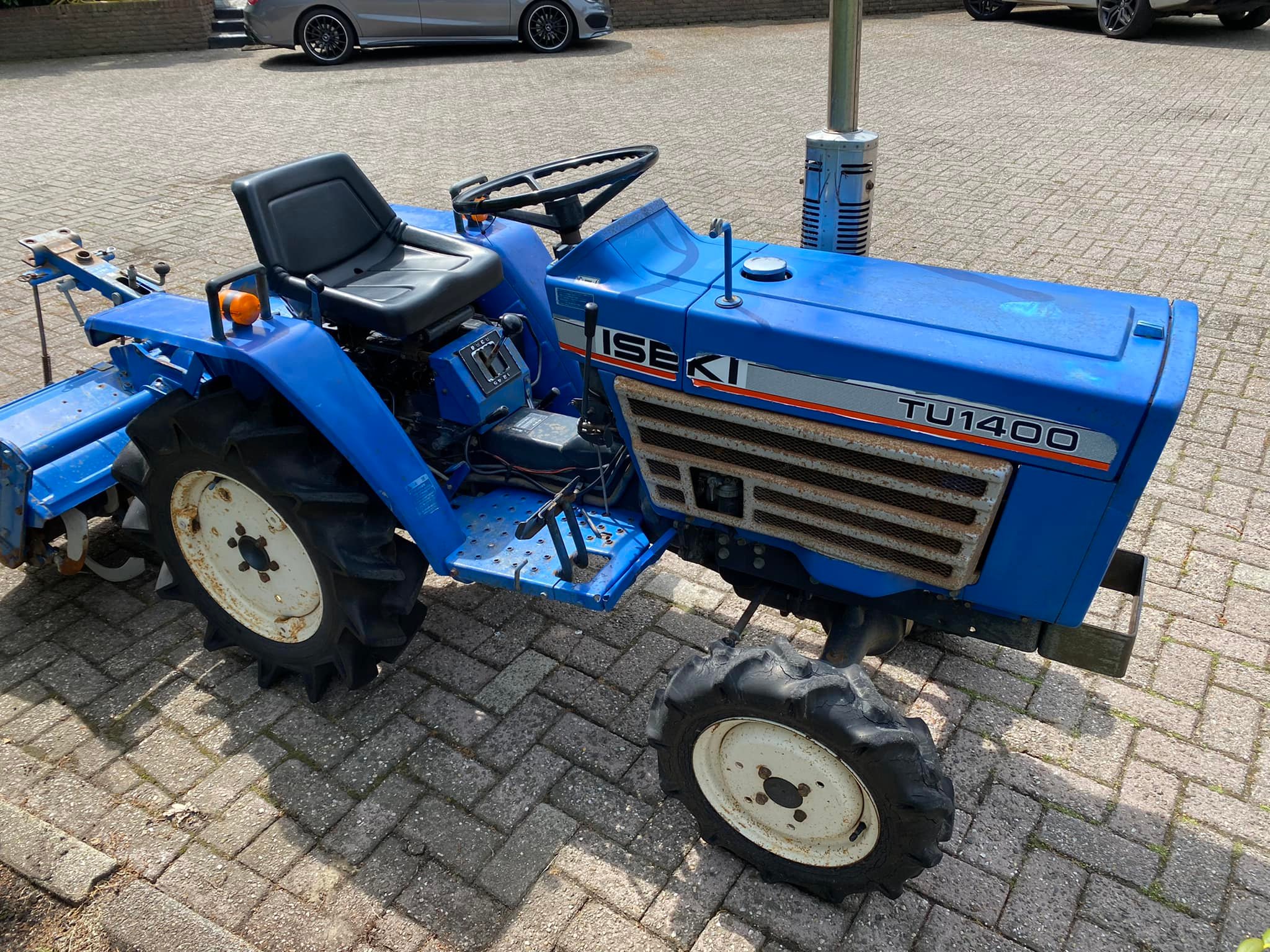

Iseki TU1400
Iseki TU1400 — TU Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1080 to 1146 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU1400F4WDReference
Engine
Mitsubihi 0.8L 3-cyl dieselReference
Fuel tank16.7 LReference
Engine10.3 kWReference
Mitsubihi K3AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke65 x 78 mmReference
Power10.3 kWReference
Rated RPM2600Reference
Torque41.2 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity4.7 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM513@2600Reference
Engine RPM759@2600Reference
Engine RPM1229@2600Reference
Dimensions
Wheelbase123 cmReference
Weight1080 to 1146 poundsReference
Front tire4.50-10Reference
2WD Rear tire7-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 7-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 7-16Reference
Length208 cmReference
Width98 cmReference
Height (exhaust)167 cmReference
2WD Weight489 kgReference
4WD Weight519 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance24 cmReference
2WD Front tread70 cmReference
4WD Front tread76 cmReference
Rear tread80 to 91 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
