Tractor · 1984Unverified

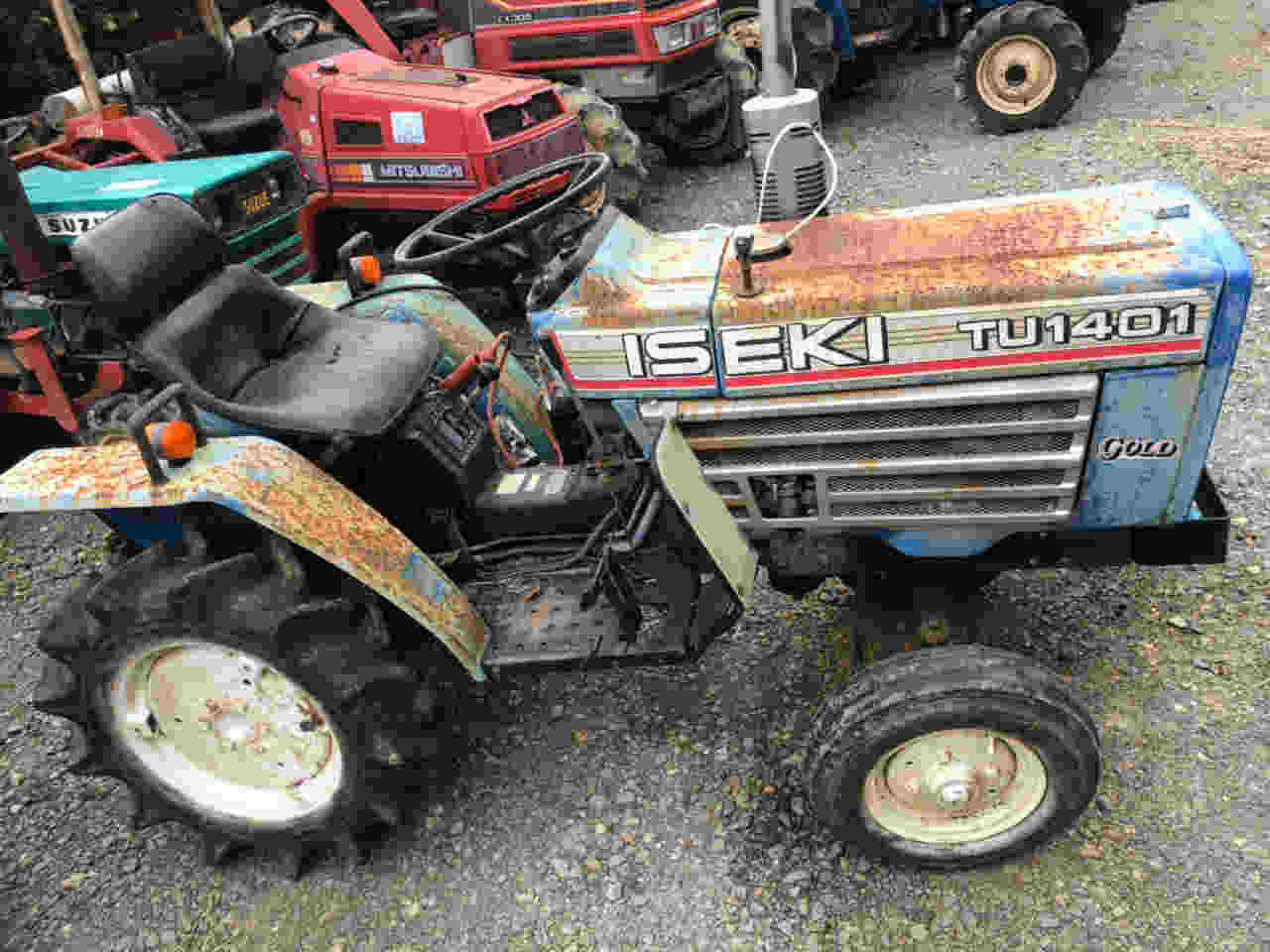

Iseki TU1401
Iseki TU1401 — TU-01 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1124 to 1224 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Variants
TU1401F4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank16.7 LReference
Engine10.3 kWReference
Mitsubishi K3AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke65 x 78 mmReference
Power10.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity16.5 LReference
Oil capacity3.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM513@2600Reference
Engine RPM759@2600Reference
Engine RPM1229@2600Reference
Dimensions
Wheelbase123 cmReference
Weight1124 to 1224 poundsReference
Front tire4.50-10Reference
2WD Rear tire7-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 7-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
2WD Length208 cmReference
4WD Length210 cmReference
2WD Width98 cmReference
4WD Width99 cmReference
2WD Height (exhaust)167 cmReference
4WD Height (exhaust)168 cmReference
2WD Weight509 kgReference
4WD Weight555 kgReference
2WD Ground clearance23 cmReference
4WD Ground clearance23 cmReference
2WD Front tread70/80 cmReference
4WD Front tread76 cmReference
Rear tread78/91 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
