Tractor · 1986Unverified

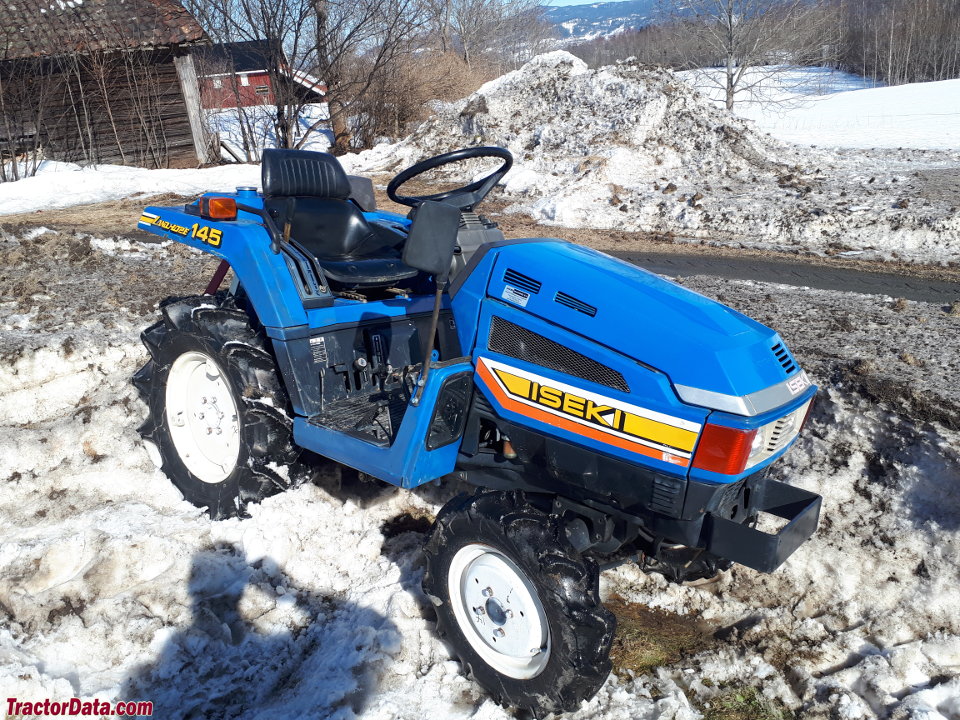

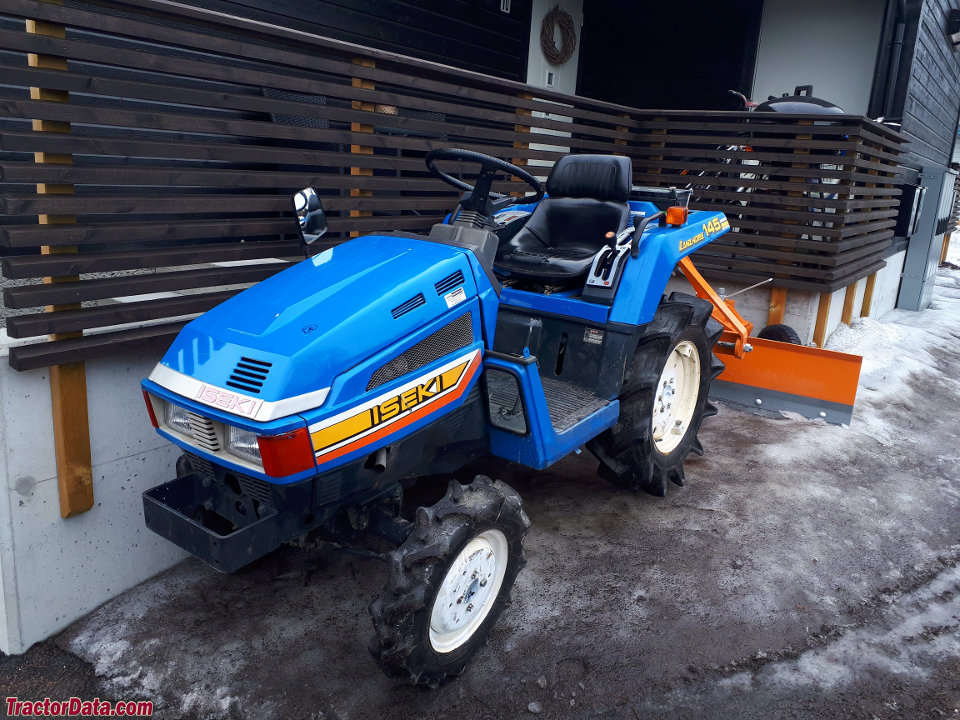

Iseki TU145
Iseki TU145 — Landhope TU5 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1345 to 1433 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU145F4WDReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine10.7 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power10.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM541@2500Reference
Engine RPM735@2500Reference
Engine RPM1138@2500Reference
Dimensions
Wheelbase125 cmReference
Weight1345 to 1433 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Length216 cmReference
Width103 cmReference
Height132 cmReference
2WD Weight610 kgReference
4WD Weight650 kgReference
Ground clearance24 cmReference
2WD Front tread75 to 80 cmReference
4WD Front tread83 cmReference
Rear tread80 to 90 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
