Tractor · 1989Unverified

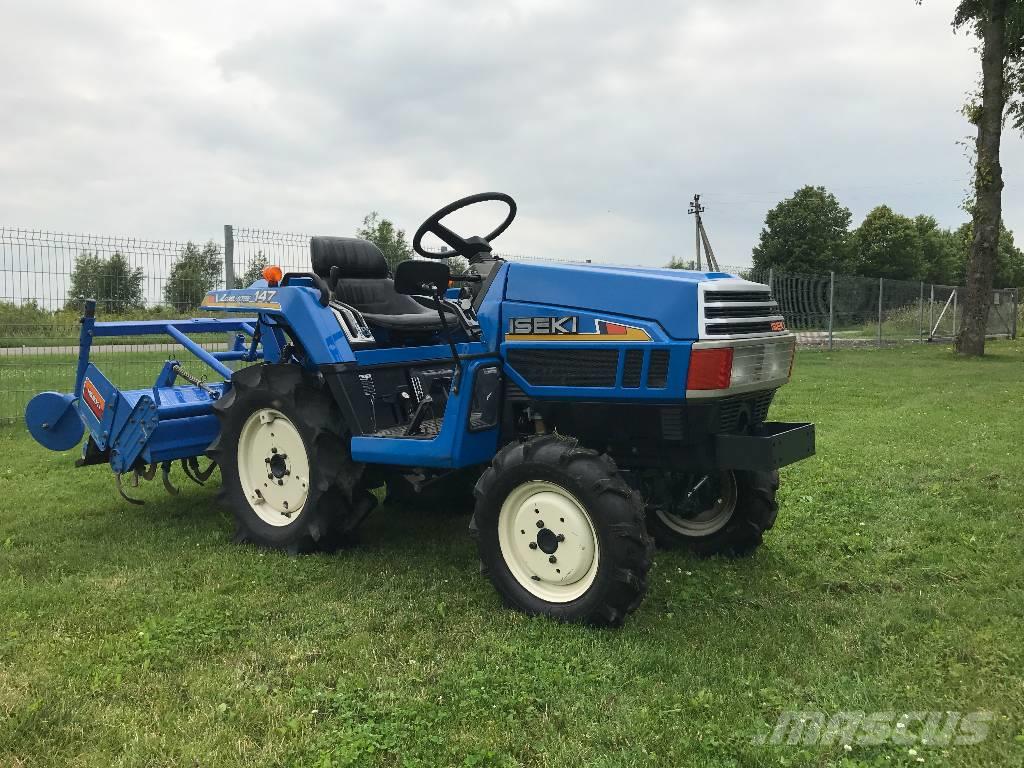

Iseki TU147

Name: Iseki TU147
Brand: Iseki

Iseki TU147 — Landhope TU7 Series · 14 hp. Reference specifications; pending source verification.

The Iseki TU147 is a tractor model with a rated power of 14 hp, positioning it at the lighter end of its class. Manufactured from 1989 to 1992, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 6-speed gearbox. The listed operating weight of the Iseki TU147 is 1345 to 1444 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

14 hp

Weight

1345 to 1444 pounds

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

14 hp

Recorded weight

610 kg

Transmissions

6-speed gear

Production years

1989-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TU147F4WDReference

Engine

Mitsubishi 0.8L 3-cyl dieselReference

Fuel tank15.9 LReference

Engine10.7 kWReference

Mitsubishi K3BReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.8 LReference

Bore/Stroke68 x 78 mmReference

Power10.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity5.5 LReference

Oil capacity2.7 LReference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

Oil capacity12.0 LReference

Three gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM541@2500Reference

Engine RPM735@2500Reference

Engine RPM1188@2500Reference

Dimensions

Wheelbase125 cmReference

Weight1345 to 1444 poundsReference

Front tire4.50-10Reference

2WD Rear tire8-16Reference

2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference

4WD Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference

Length217 cmReference

Width103 cmReference

Height132 cmReference

2WD Weight610 kgReference

4WD Weight654 kgReference

Ground clearance24 cmReference

2WD Front tread75/80 cmReference

4WD Front tread83 cmReference

Rear tread80 to 90 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
