Tractor · 1984Unverified

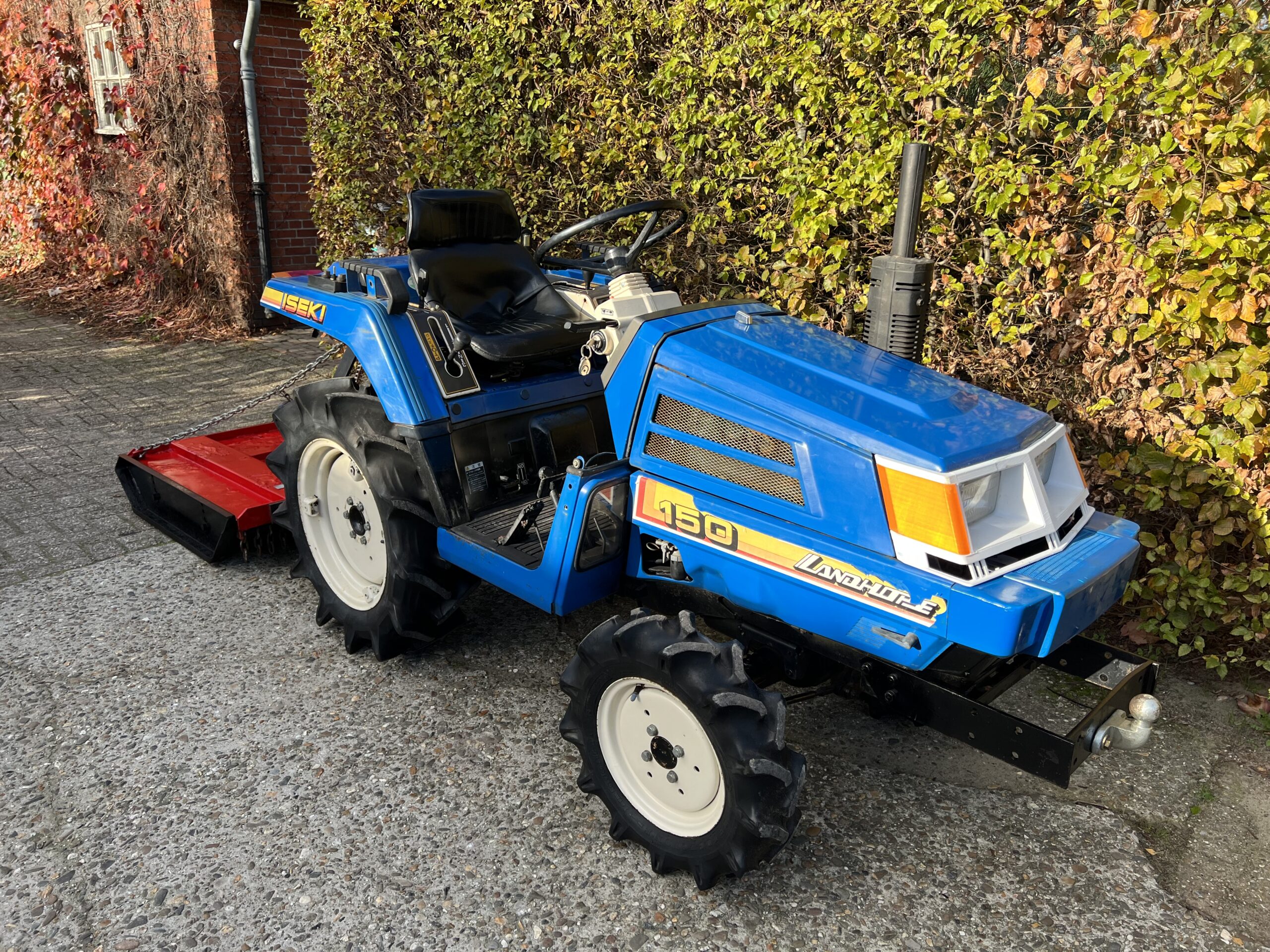

Iseki TU150
Iseki TU150 — Landhope TU Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1444 to 1543 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU150F4WDReference
Engine
Mitsubishi 0.9L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine11.0 kWReference
Mitsubishi K3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke70 x 78 mmReference
Power11.0 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity5.5 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity15.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM541@2500Reference
Engine RPM735@2500Reference
Engine RPM1188@2500Reference
Dimensions
Wheelbase125 cmReference
Weight1444 to 1543 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-18Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length236 cmReference
Width103 cmReference
2WD Height170 cmReference
4WD Height169 cmReference
2WD Weight654 kgReference
4WD Weight699 kgReference
2WD Ground clearance27 cmReference
4WD Ground clearance24 cmReference
2WD Front tread75/80 cmReference
4WD Front tread83 cmReference
Rear tread80/90 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
