Tractor · 1986Unverified

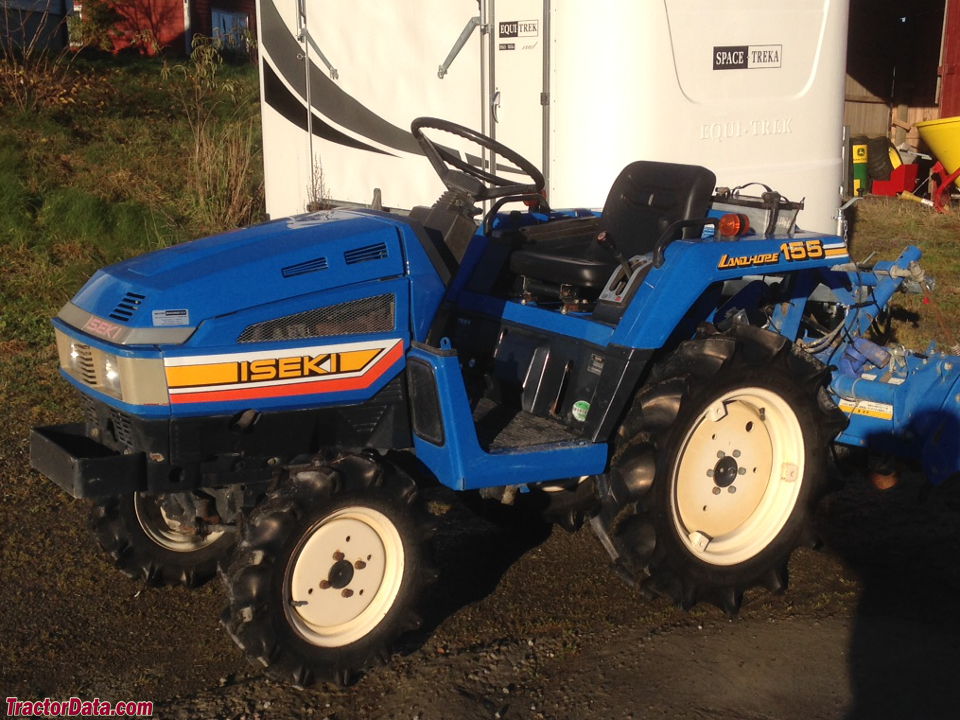

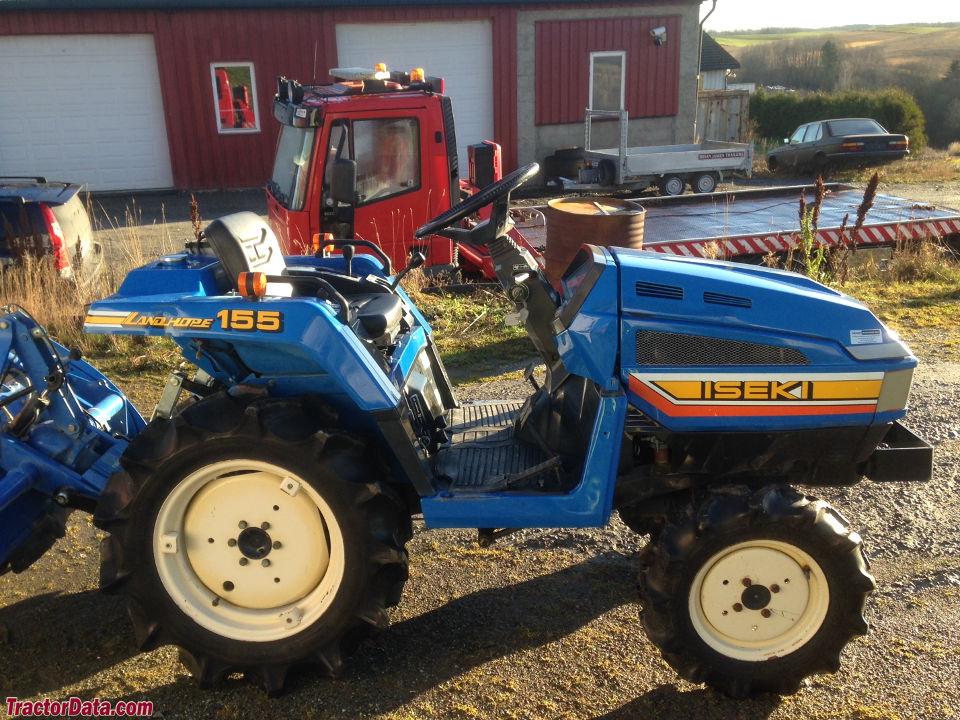

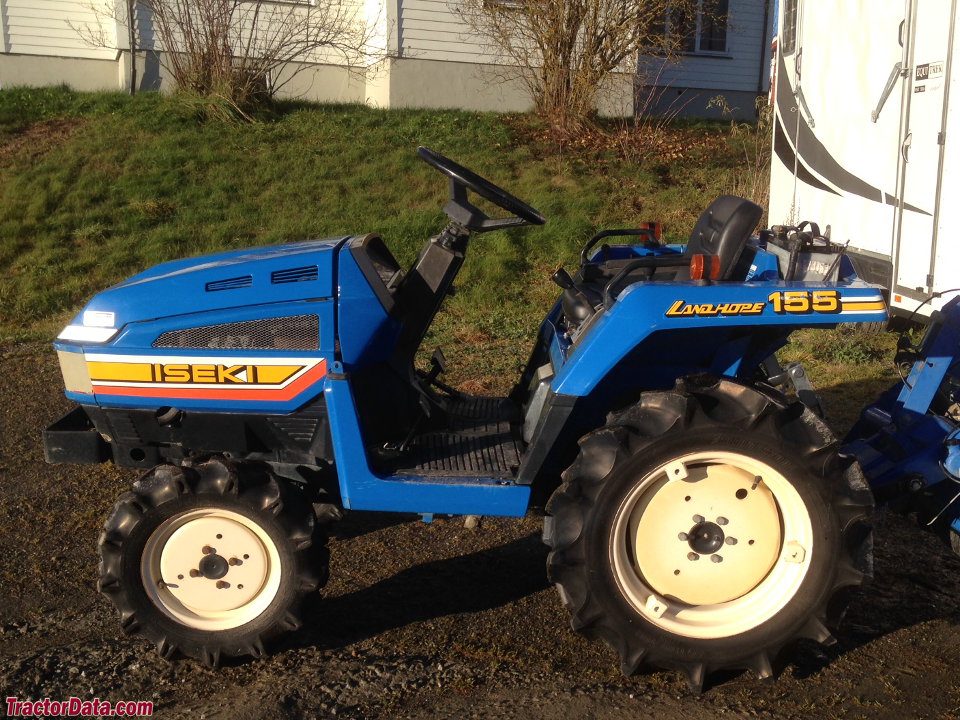

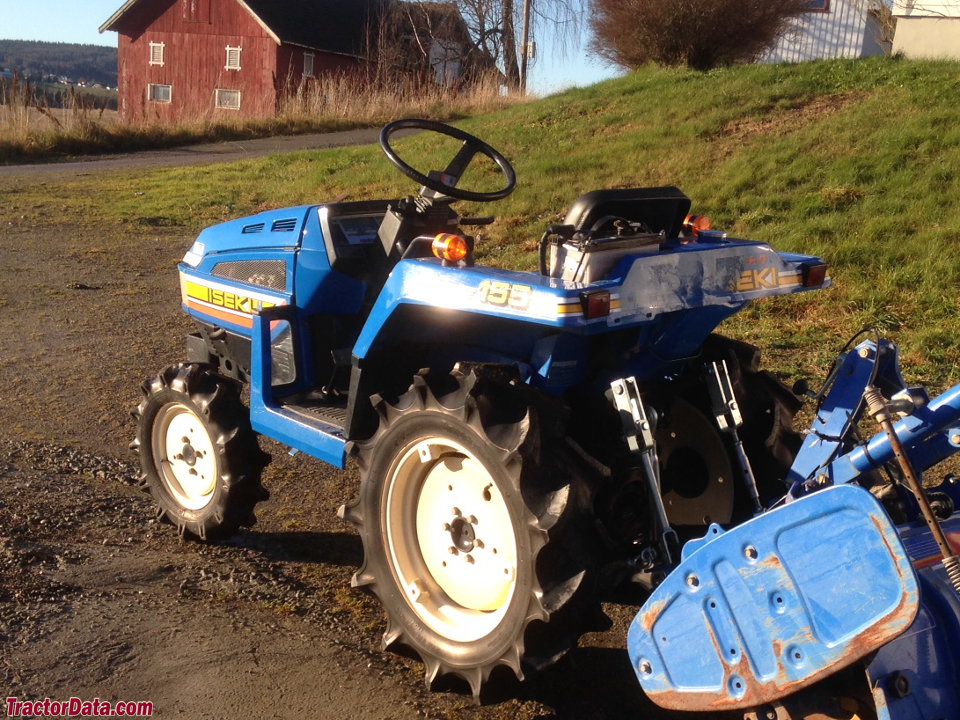

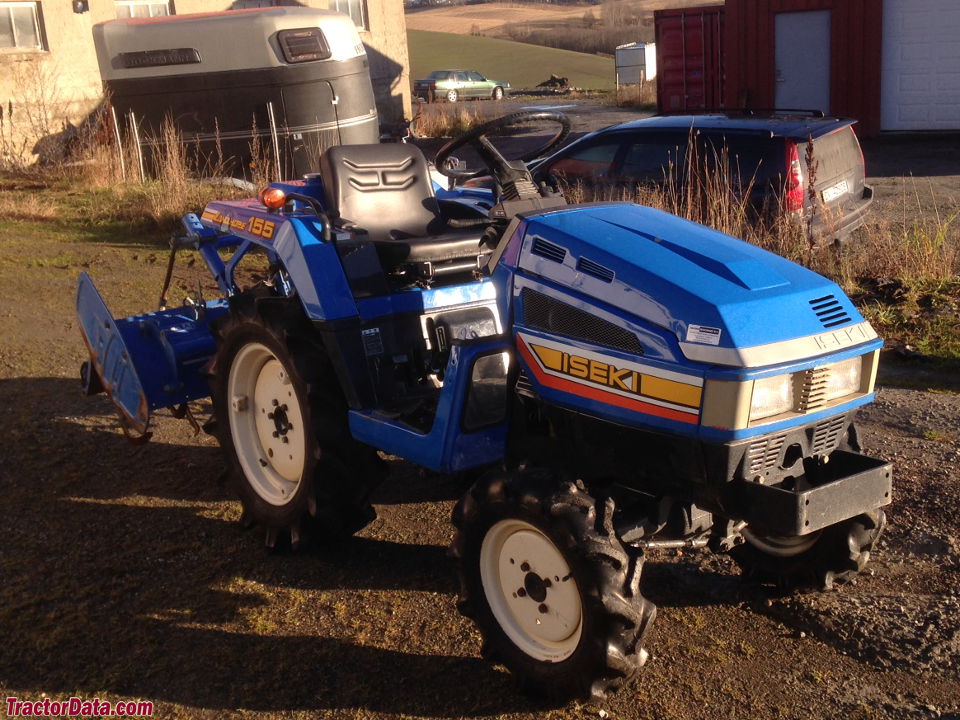

Iseki TU155
Iseki TU155 — Landhope TU5 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1378 to 1466 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU155F4WDReference
Engine
Mitsubishi 0.9L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine11.4 kWReference
Mitsubishi K3CReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke70 x 78 mmReference
Power11.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts1Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@2500Reference
Engine RPM735@2500Reference
Engine RPM1138@2500Reference
Dimensions
Wheelbase125 cmReference
Weight1378 to 1466 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-18Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length219 cmReference
Width103 cmReference
Height132 cmReference
2WD Ground clearance27 cmReference
4WD Ground clearance24 cmReference
2WD Front tread75 to 80 cmReference
4WD Front tread83 cmReference
Rear tread80 to 90 cmReference
2WD625 kgReference
4WD664 kgReference
Capacities
Max capacity1496 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
