Tractor · 1986Unverified

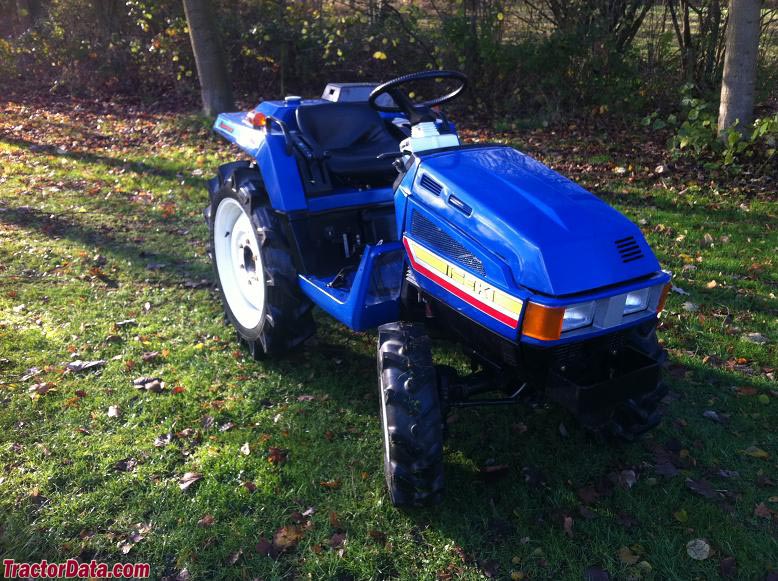

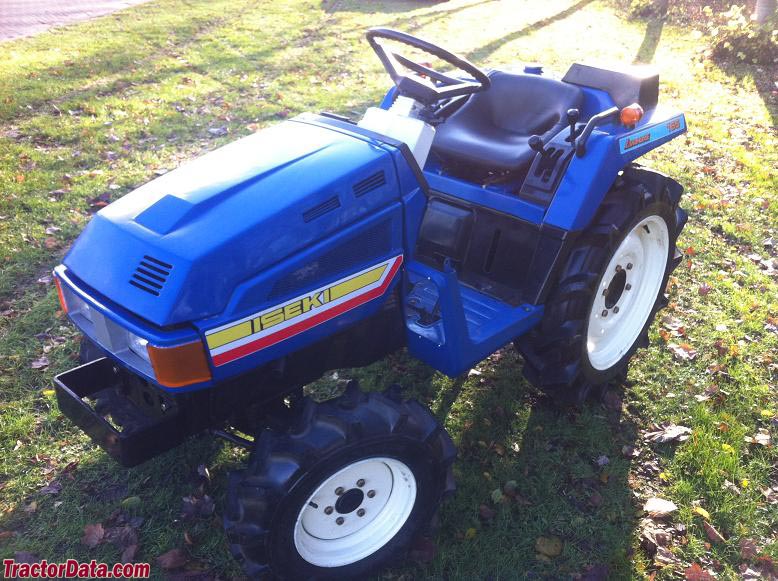

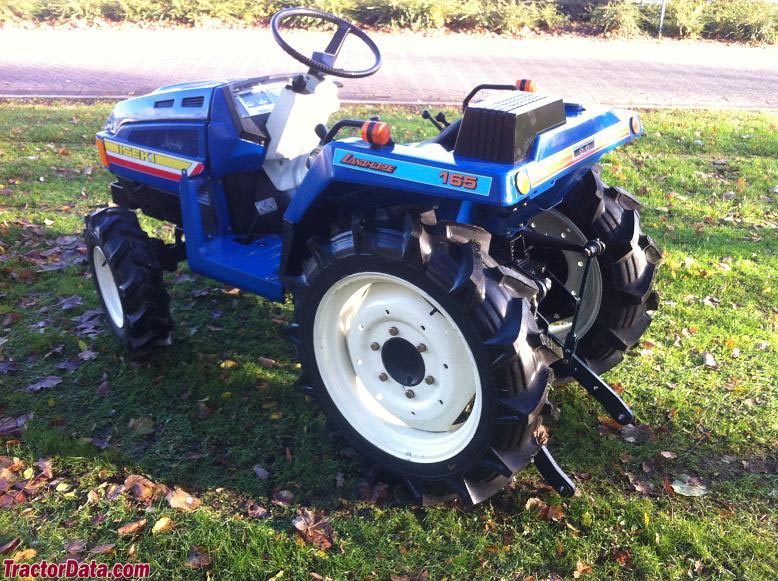

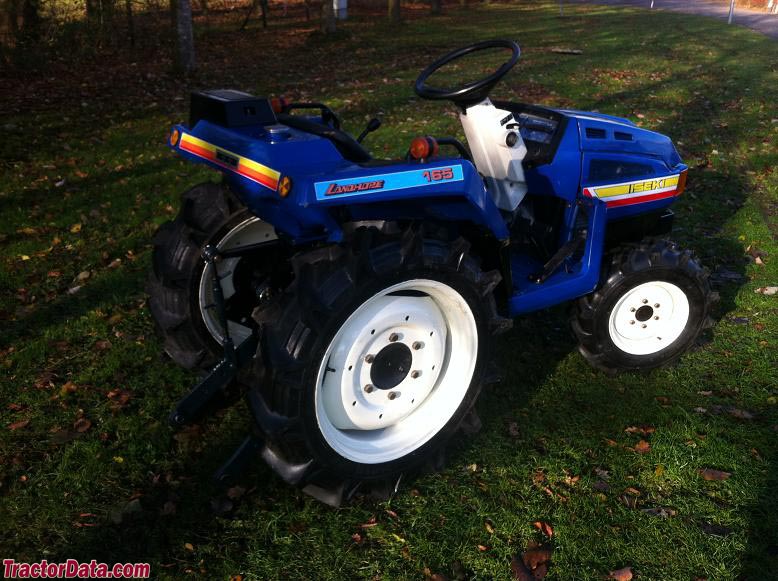

Iseki TU165

Name: Iseki TU165
Brand: Iseki

Iseki TU165 — Landhope TU5 Series · 16 hp. Reference specifications; pending source verification.

The Iseki TU165 is a compact tractor model rated at 16 hp, which was manufactured from 1986 to 1990. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive transmission with a 6-speed gearbox. The tractor's weight ranges from 1455 to 1554 pounds. It is designed for use on small-scale plots of land, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

1455 to 1554 pounds

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

16 hp

Recorded weight

659 kg

Transmissions

6-speed gear

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TU165F4WDReference

Engine

Mitsubishi 1.0L 3-cyl dieselReference

Fuel tank15.1 LReference

Engine12.2 kWReference

Mitsubishi K3DReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke73 x 78 mmReference

Power12.2 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM541@2500Reference

Engine RPM735@2500Reference

Engine RPM1188@2500Reference

Dimensions

Wheelbase135 cmReference

Weight1455 to 1554 poundsReference

Front tire4.00-12Reference

2WD Rear tire8.3-20Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-20Reference

4WD Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference

Length227 cmReference

Width108 cmReference

Height133 cmReference

2WD Weight659 kgReference

4WD Weight704 kgReference

2WD Ground clearance27 cmReference

4WD Ground clearance25 cmReference

2WD Front tread75 to 81 cmReference

4WD Front tread84 cmReference

Rear tread85 to 101 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
