Tractor · 1984Unverified

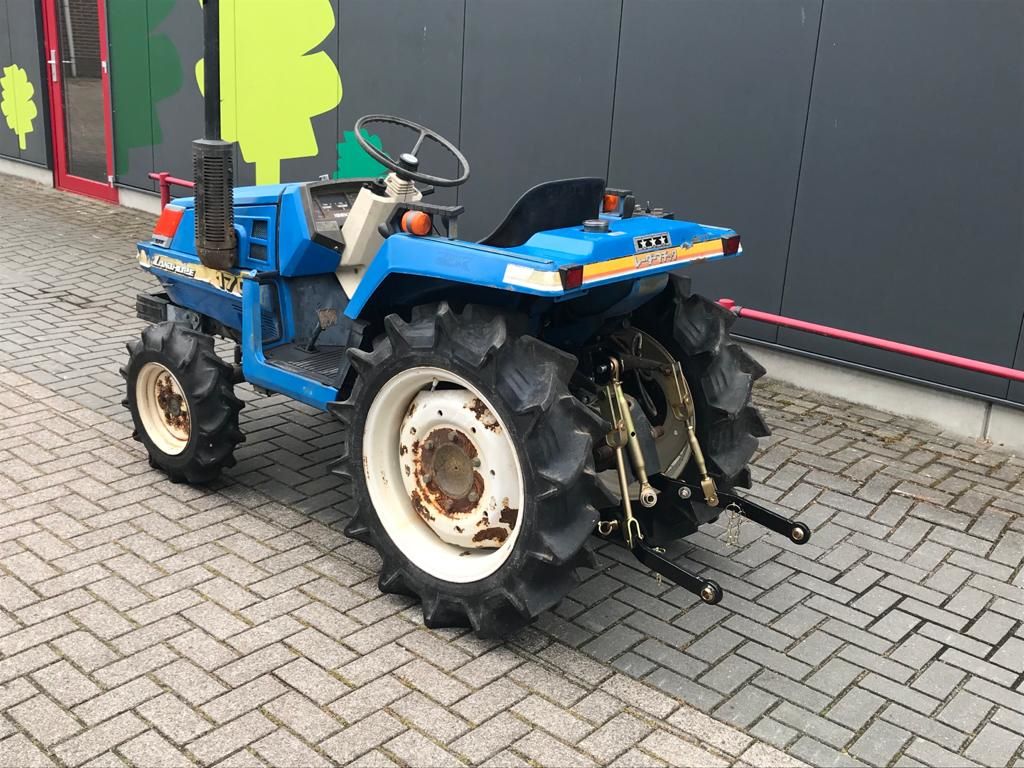

Iseki TU170

Name: Iseki TU170
Brand: Iseki

Iseki TU170 — Landhope TU Series · 17 hp. Reference specifications; pending source verification.

The Iseki TU170 is a compact tractor, boasting a rated output of 17 hp, which places it at the lower end of the power spectrum for its class. This model was manufactured from 1984 to 1986. It features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a 6-speed gearbox. The listed weight of the TU170 ranges from 1532 to 1631 pounds, and it is suited for working on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1532 to 1631 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

17 hp

Recorded weight

694 kg

Transmissions

6-speed gear

Production years

1984-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TU170F4WDReference

Engine

Mitsubishi 1.0L 3-cyl dieselReference

Fuel tank15.1 LReference

Engine12.5 kWReference

Mitsubishi K3DReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke73 x 78 mmReference

Power12.5 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity2.7 LReference

Coolant capacity5.5 LReference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

Oil capacity15.0 LReference

Three gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM514@2500Reference

Engine RPM698@2500Reference

Engine RPM1128@2500Reference

Dimensions

Wheelbase135 cmReference

Weight1532 to 1631 poundsReference

Front tire4.00-12Reference

2WD Rear tire8.3-22Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference

4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference

Length246 cmReference

Width108 cmReference

2WD Height170 cmReference

4WD Height171 cmReference

2WD Weight694 kgReference

4WD Weight739 kgReference

2WD Ground clearance27 cmReference

4WD Ground clearance25 cmReference

2WD Front tread75/80 cmReference

4WD Front tread84 cmReference

Rear tread85/101 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
