Tractor · 1981Unverified

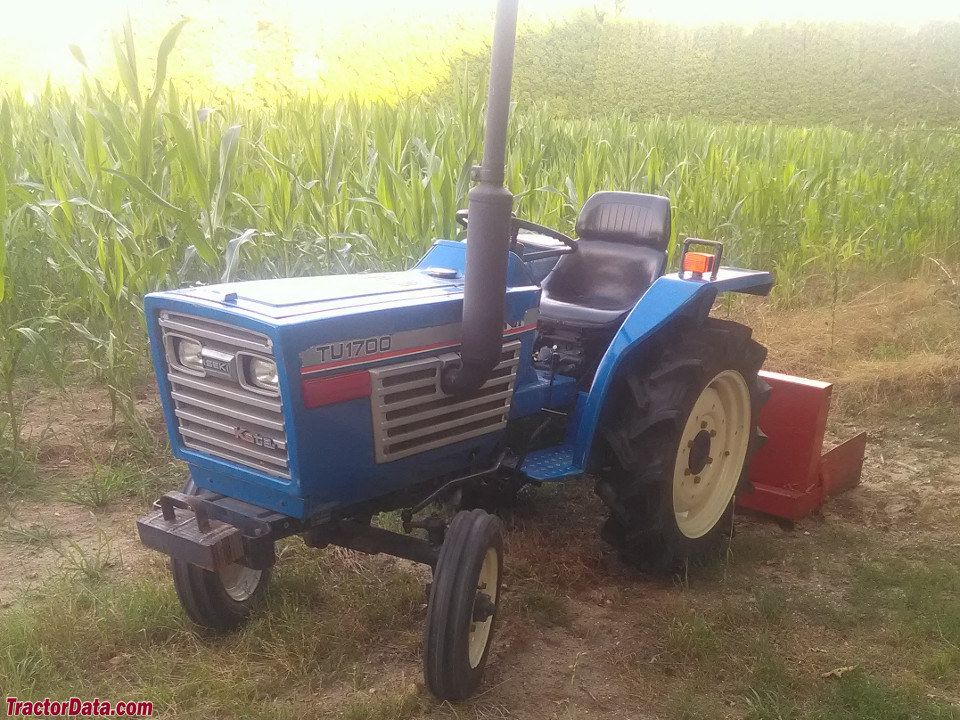

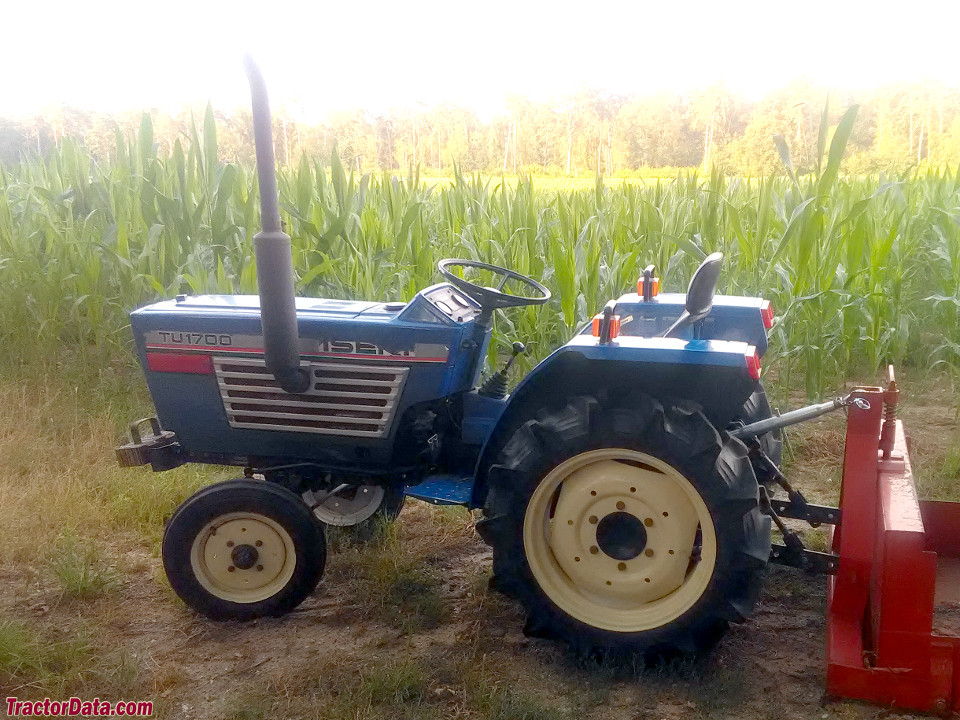

Iseki TU1700

Name: Iseki TU1700
Brand: Iseki

Iseki TU1700 — TU Series · 17 hp. Reference specifications; pending source verification.

The Iseki TU1700 is a compact tractor with a rated output of 17 hp, falling within its designated class. Produced from 1981 to 1984, this model features a 3-cylinder diesel liquid-cooled engine that drives a four-wheel drive system through a 12-speed gearbox. The listed weight of the Iseki TU1700 ranges from 1548 to 1576 pounds, with a capacity for approximately 200 acres of work.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1548 to 1576 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

17 hp

Recorded weight

702 kg

Transmissions

12-speed gear

Production years

1981-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Built in JapanReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TU1700F4WDReference

Engine

Isuzu 1.2L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine12.5 kWReference

Isuzu 3AF1Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke76 x 86 mmReference

Power12.5 kWReference

Rated RPM2300Reference

Torque58.9 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity3.0 LReference

Coolant capacity7.0 LReference

Transmission

12-speed gearReference

TypegearReference

Gears12 forward and 4 reverseReference

Oil capacity17.0 LReference

Six gears, plus two reverse gears, in two ranges.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM528@2300Reference

Engine RPM814@2300Reference

Engine RPM1288@2300Reference

Dimensions

Wheelbase134 cmReference

Weight1548 to 1576 poundsReference

Front tire4.00-12Reference

2WD Rear tire8.3-22Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference

4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference

Length261 cmReference

2WD Width112 cmReference

4WD Width116 cmReference

Height (exhaust)193 cmReference

2WD Weight702 kgReference

4WD Weight714 kgReference

2WD Ground clearance32 cmReference

4WD Ground clearance28 cmReference

2WD to inches 96 to 0 cm Front tread37.8Reference

4WD to inches 94 to 0 cm Front tread37.2Reference

Rear tread88/103 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
