Tractor · 1984Unverified

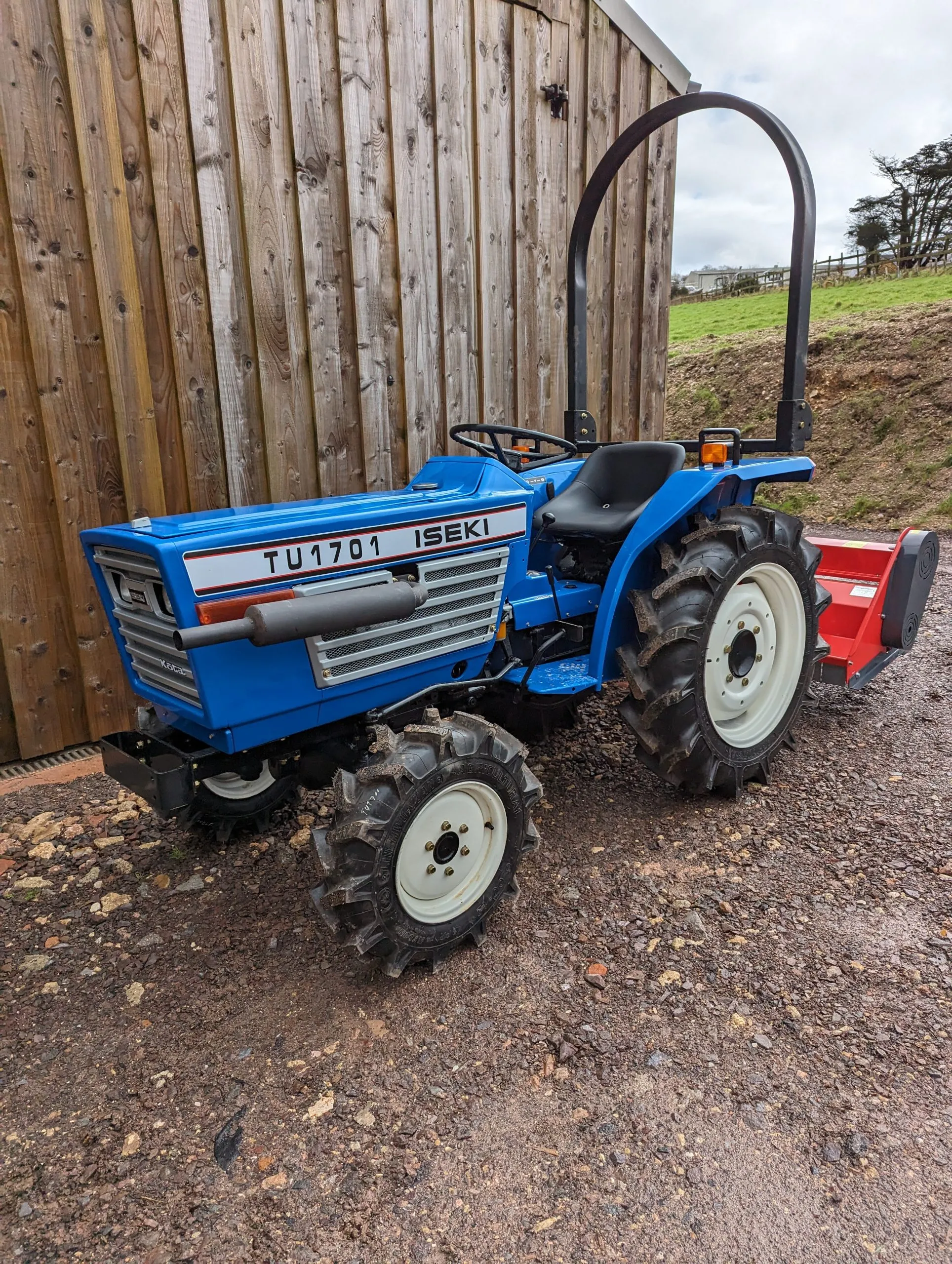

Iseki TU1701
Iseki TU1701 — TU-01 Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1543 to 1576 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Variants
TU1701F4WDReference
Engine
Isuzu 1.2L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine12.5 kWReference
Isuzu 3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power12.5 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity22.1 LReference
Oil capacity3.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity17.0 LReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM528@2300Reference
Engine RPM814@2300Reference
Engine RPM1288@2300Reference
Dimensions
Wheelbase135 cmReference
Weight1543 to 1576 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length261 cmReference
Width135 cmReference
Height (exhaust)193 cmReference
2WD Weight699 kgReference
4WD Weight714 kgReference
2WD Ground clearance30 cmReference
4WD Ground clearance28 cmReference
2WD Front tread85/96 cmReference
4WD Front tread94 cmReference
Rear tread88 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
