Tractor · 1986Unverified

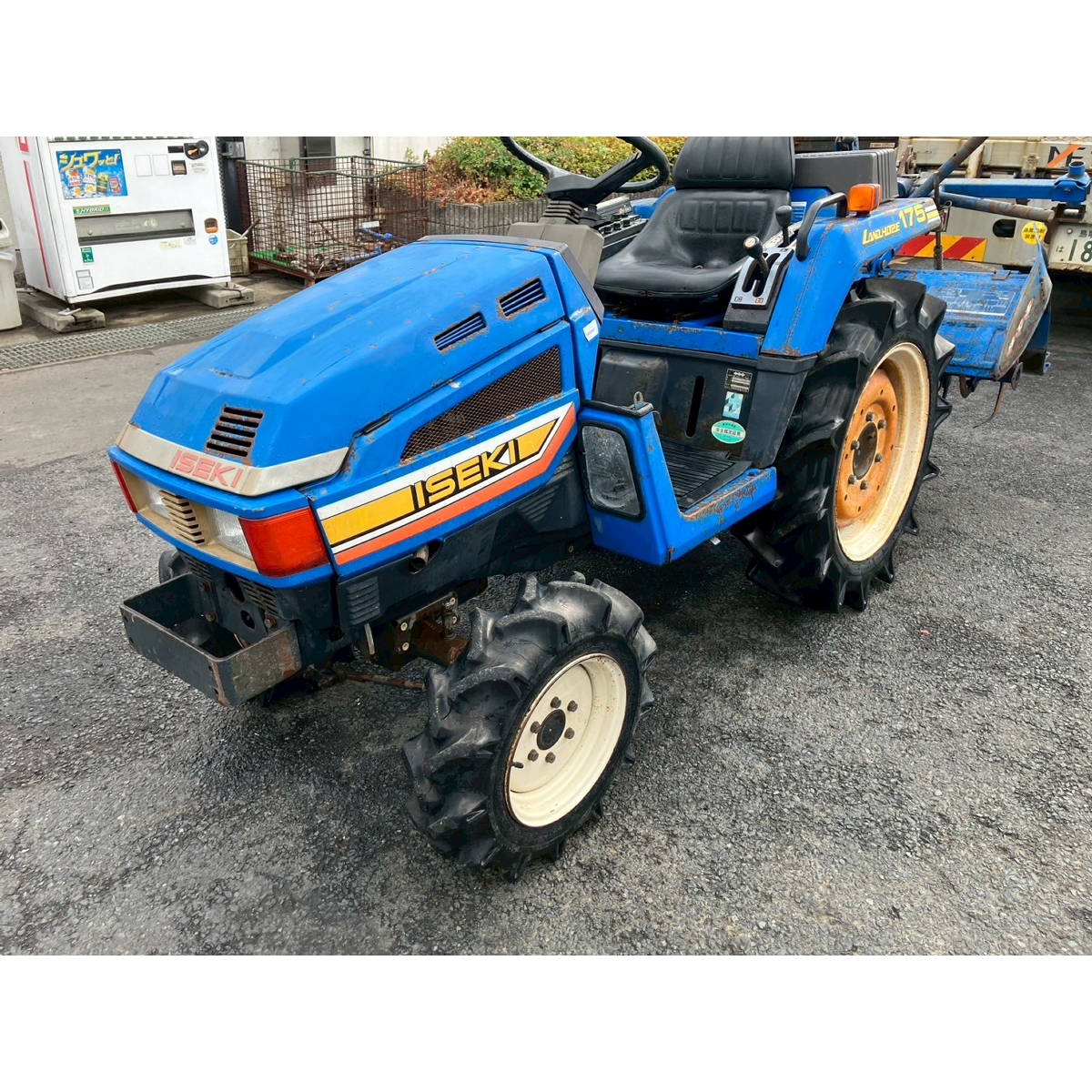

Iseki TU175
Iseki TU175 — Landhope TU5 Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1466 to 1554 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU175F4WDReference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank15.1 LReference
Engine12.9 kWReference
Mitsubishi K3DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 78 mmReference
Power12.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM514@2500Reference
Engine RPM698@2500Reference
Engine RPM1128@2500Reference
Dimensions
Wheelbase135 cmReference
Weight1466 to 1554 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length230 cmReference
Width108 cmReference
Height135 cmReference
2WD Weight664 kgReference
4WD Weight704 kgReference
2WD Ground clearance27 cmReference
4WD Ground clearance25 cmReference
2WD Front tread75 to 81 cmReference
4WD Front tread84 cmReference
Rear tread85 to 101 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
