Tractor · 1989Unverified

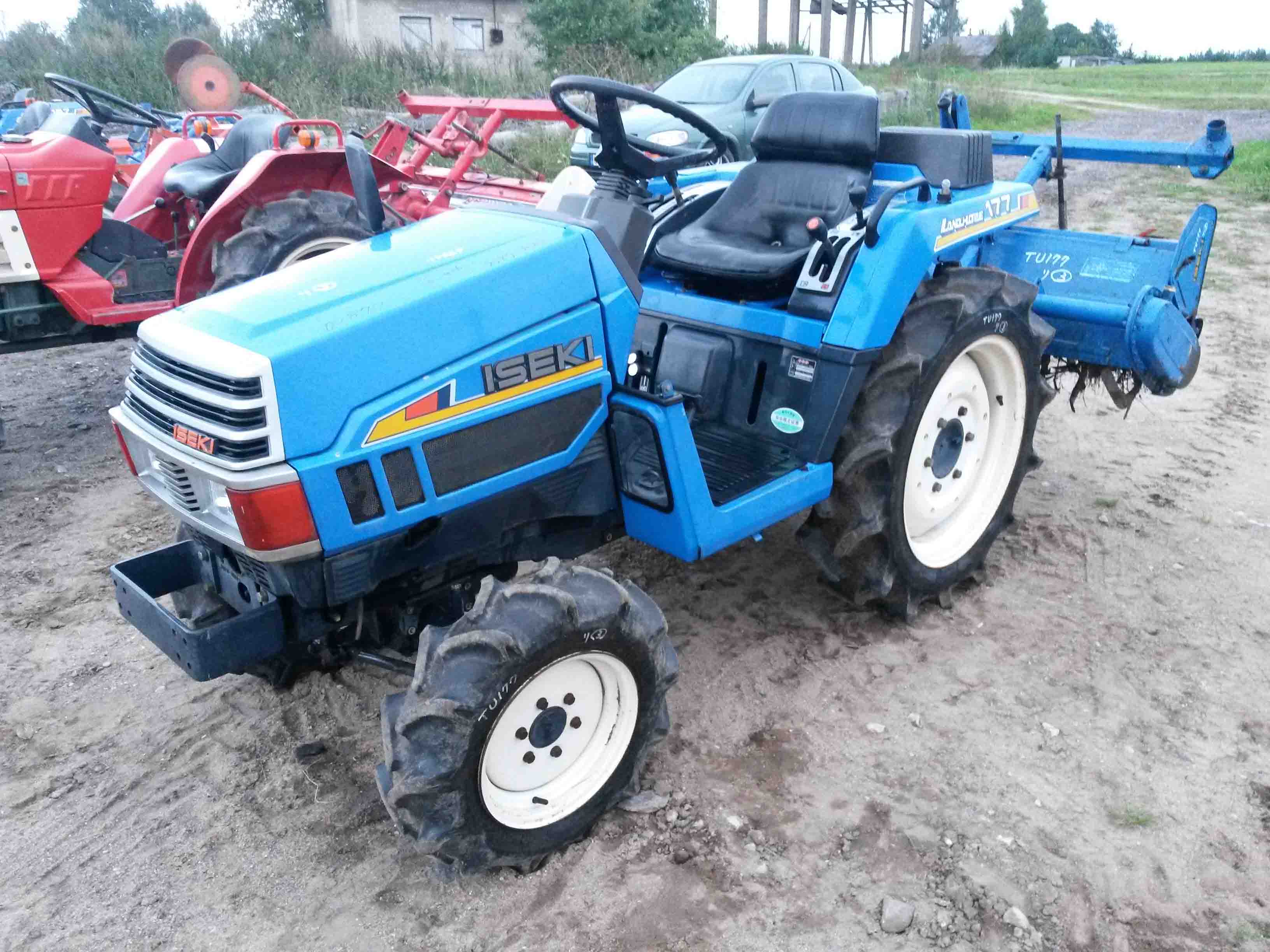

Iseki TU177
Iseki TU177 — Landhope TU7 Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1466 to 1554 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU177F4WDReference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Fuel tank15.9 LReference
Engine12.9 kWReference
Mitsubishi K3DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke73 x 78 mmReference
Power12.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity5.5 LReference
Oil capacity2.7 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM514@2500Reference
Engine RPM698@2500Reference
Engine RPM1128@2500Reference
Dimensions
Wheelbase135 cmReference
Weight1466 to 1554 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length230 cmReference
Width108 cmReference
Height135 cmReference
2WD Weight664 kgReference
4WD Weight704 kgReference
2WD Ground clearance27 cmReference
4WD Ground clearance25 cmReference
2WD Front tread75/81 cmReference
4WD Front tread84 cmReference
Rear tread85/101 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
