Tractor · 1984Unverified

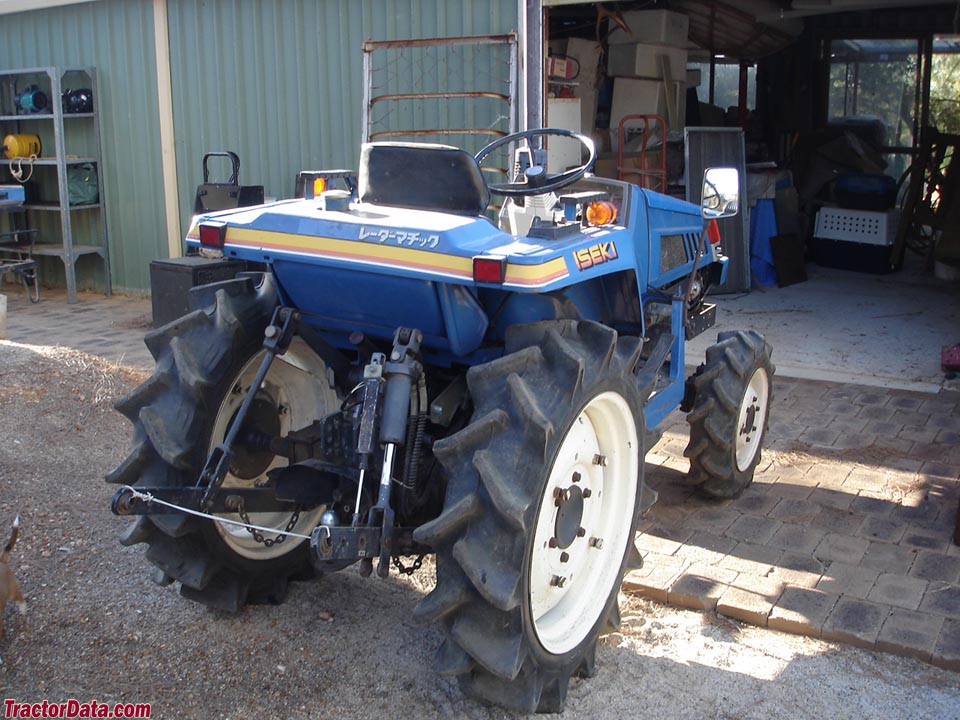

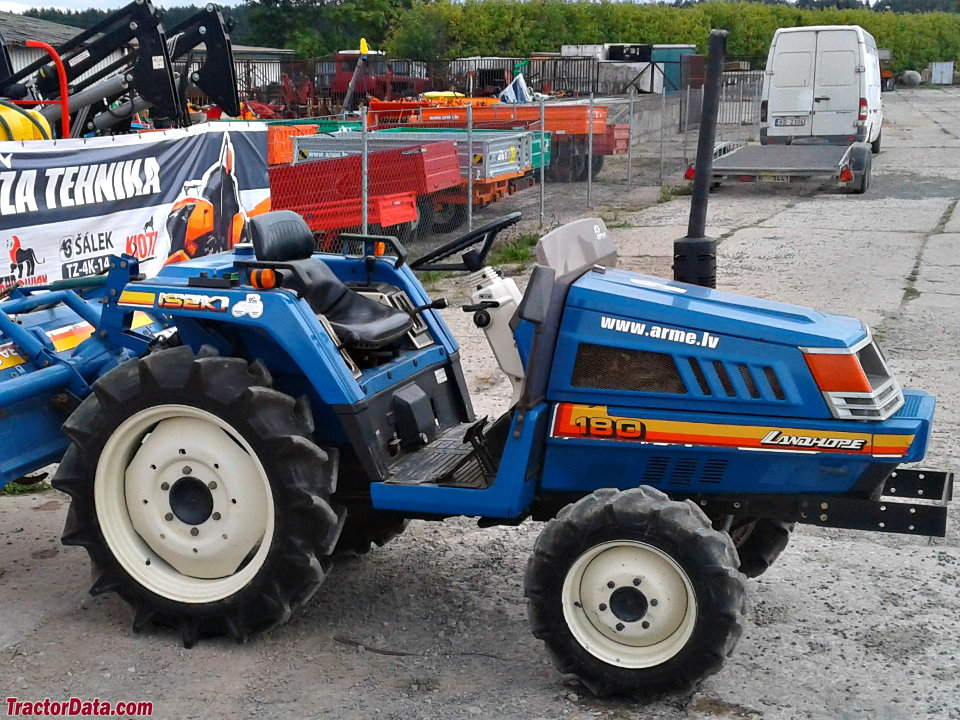

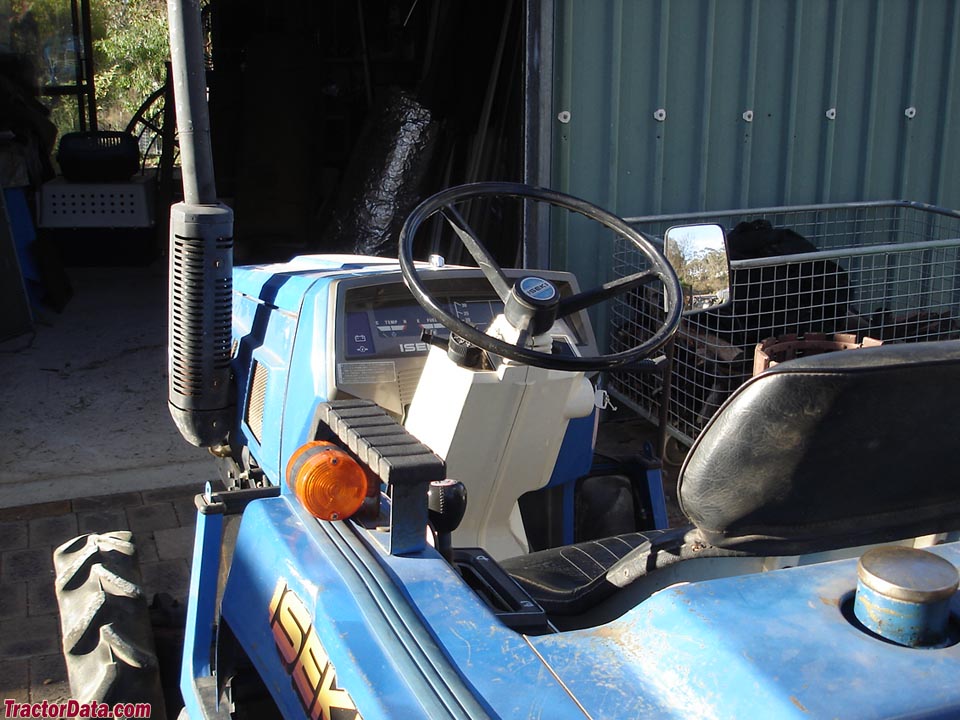

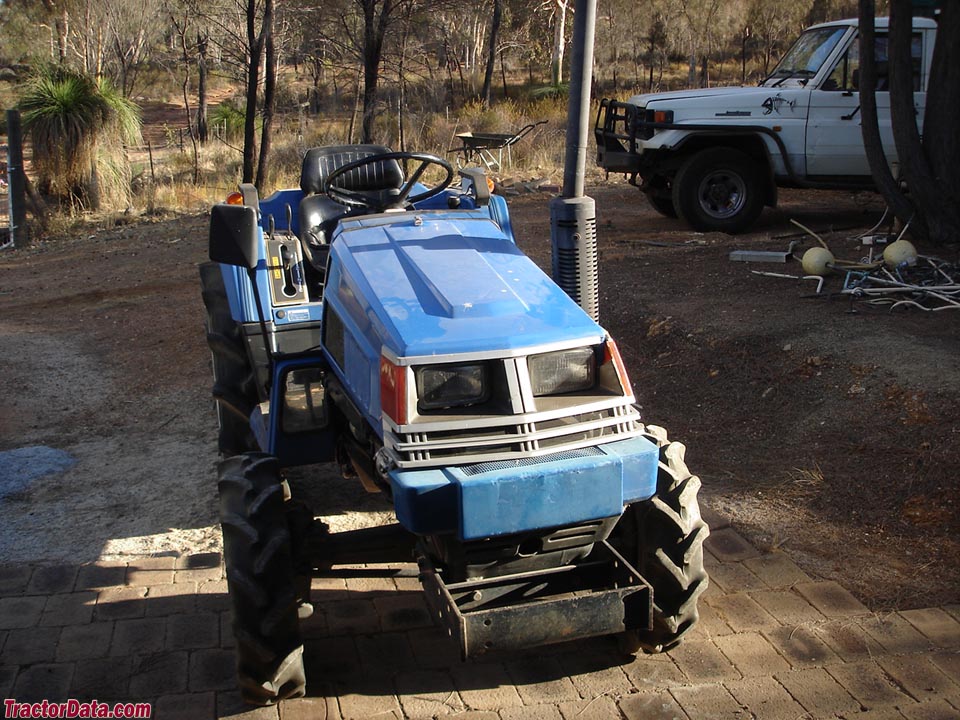

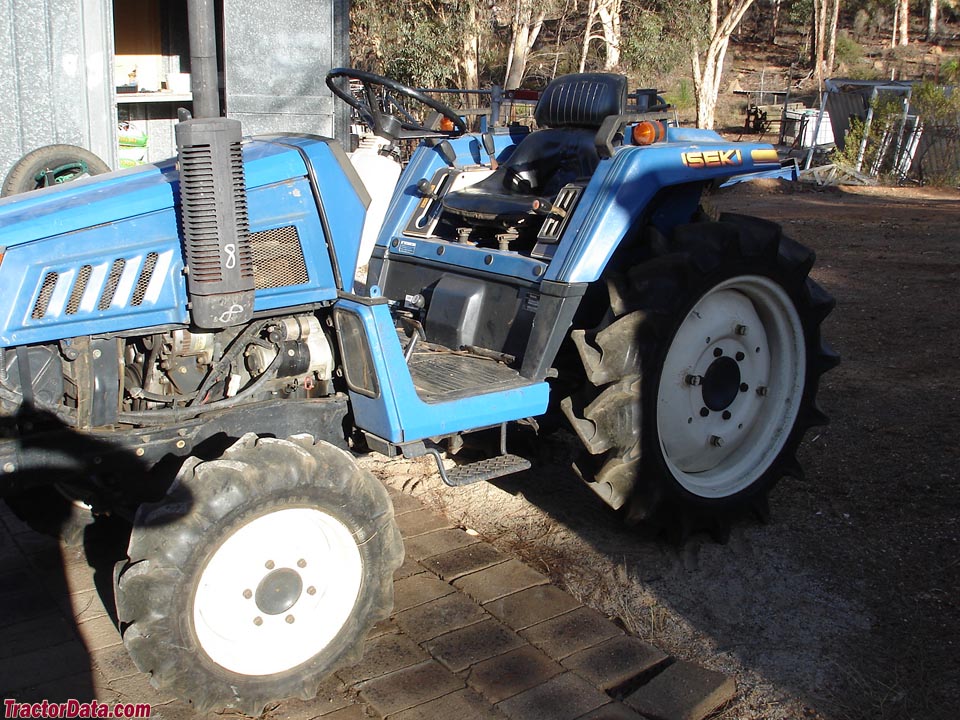

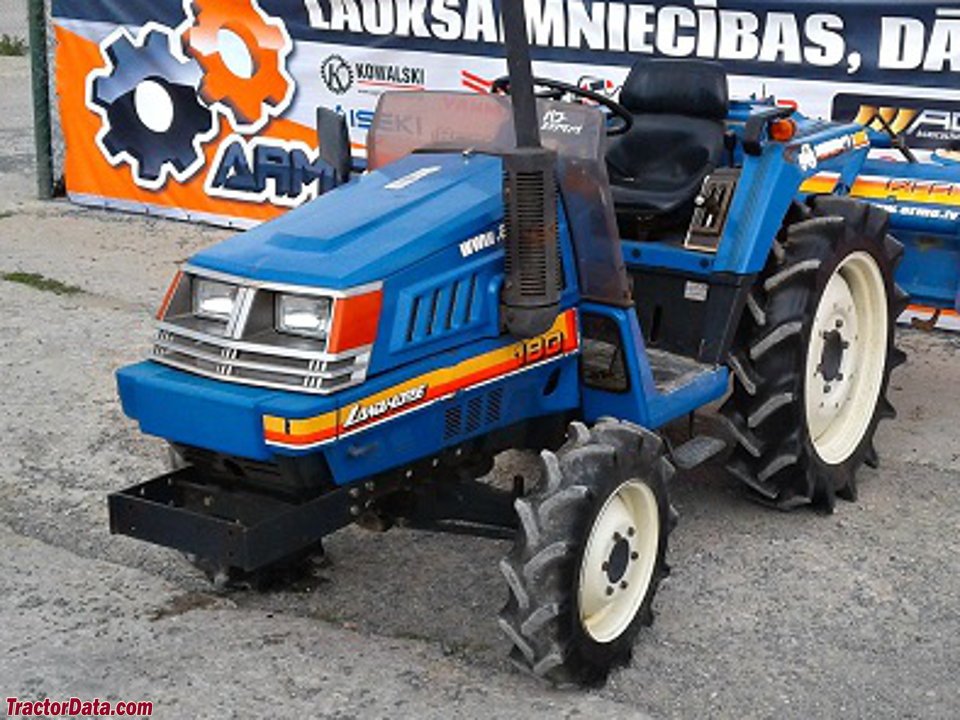

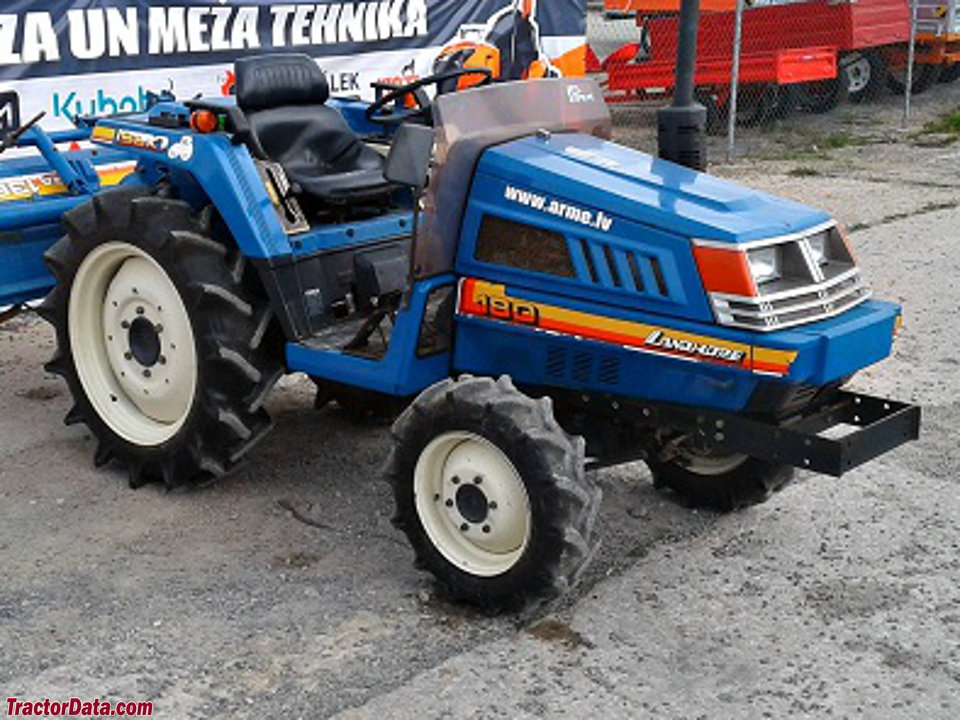

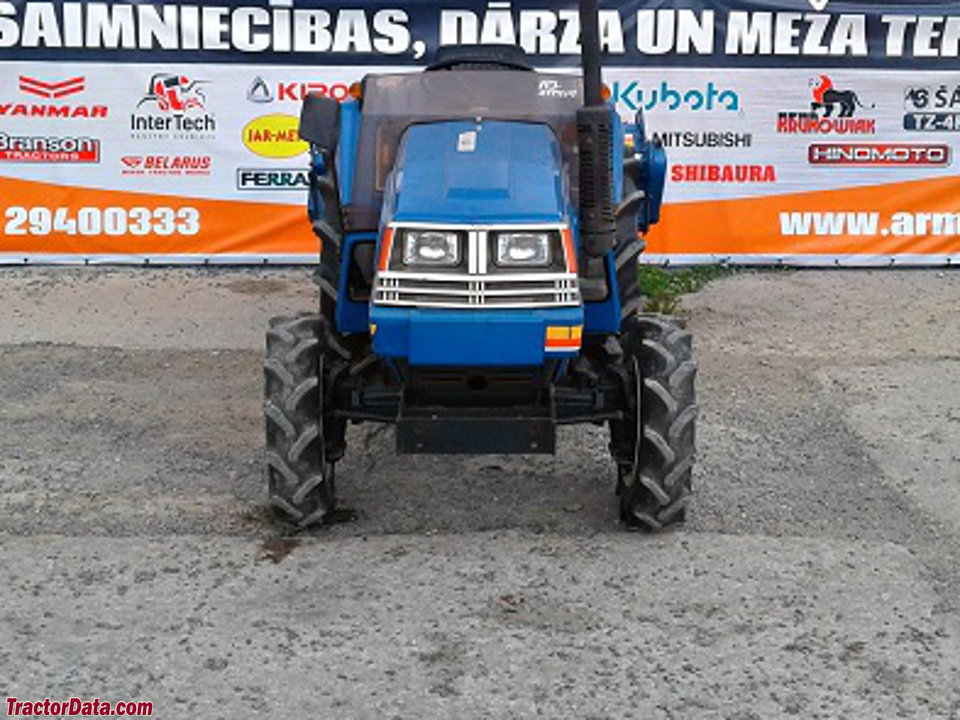

Iseki TU180

Name: Iseki TU180
Brand: Iseki

Iseki TU180 — Landhope TU Series · 18 hp. Reference specifications; pending source verification.

The Iseki TU180 is a compact tractor rated at 18 hp, characterised by its compact design within its class. Manufactured from 1984 to 1986, the TU180 features a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a 12-speed gearbox. Its listed weight ranges from 1918 to 2116 pounds. It is suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1918 to 2116 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

18 hp

Recorded weight

870 kg

Transmissions

12-speed

Production years

1984-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TU180F4WDReference

Engine

Iseki 1.2L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine13.3 kWReference

Iseki E3AF1Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke76 x 86 mmReference

Power13.3 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

Three gears, plus reverse, in four ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM553@2500Reference

Engine RPM848@2500Reference

Engine RPM1309@2500Reference

Dimensions

Wheelbase146 cmReference

Weight1918 to 2116 poundsReference

Front tire400-12Reference

2WD Rear tire8.3-24Reference

2WD Standard tires (ag)Front: 400-12. Rear: 8.3-24Reference

4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

Length307 cmReference

Width118 cmReference

2WD Height187 cmReference

4WD Height188 cmReference

2WD Weight870 kgReference

4WD Weight959 kgReference

2WD Ground clearance26 cmReference

4WD Ground clearance27 cmReference

2WD Front tread93 to 98 cmReference

4WD Front tread102 cmReference

Rear tread93 to 109 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
