Tractor · 1986Unverified

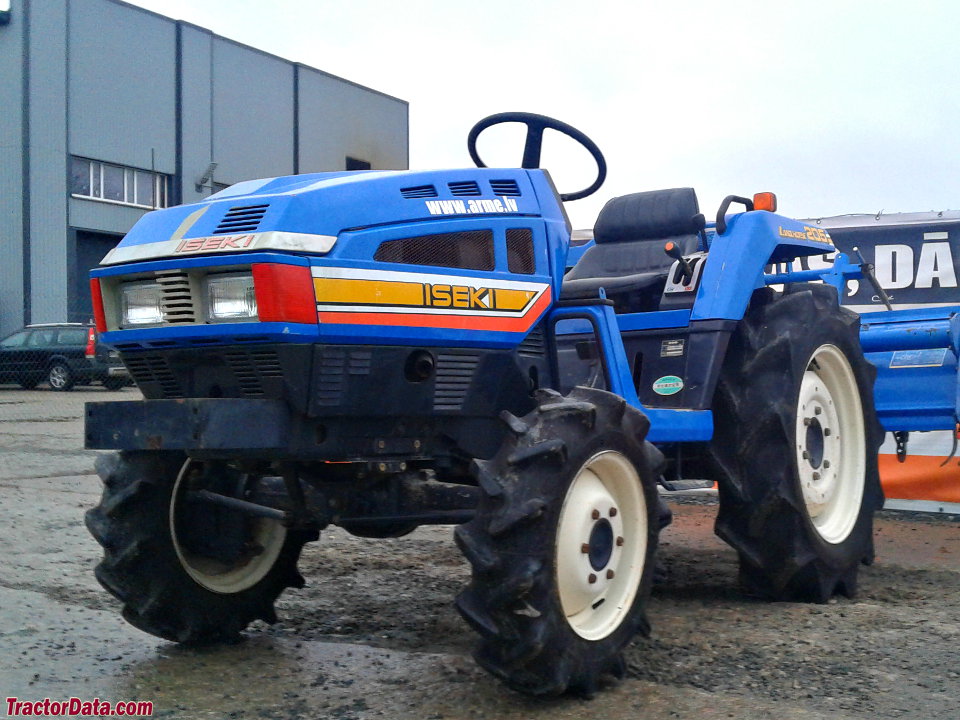

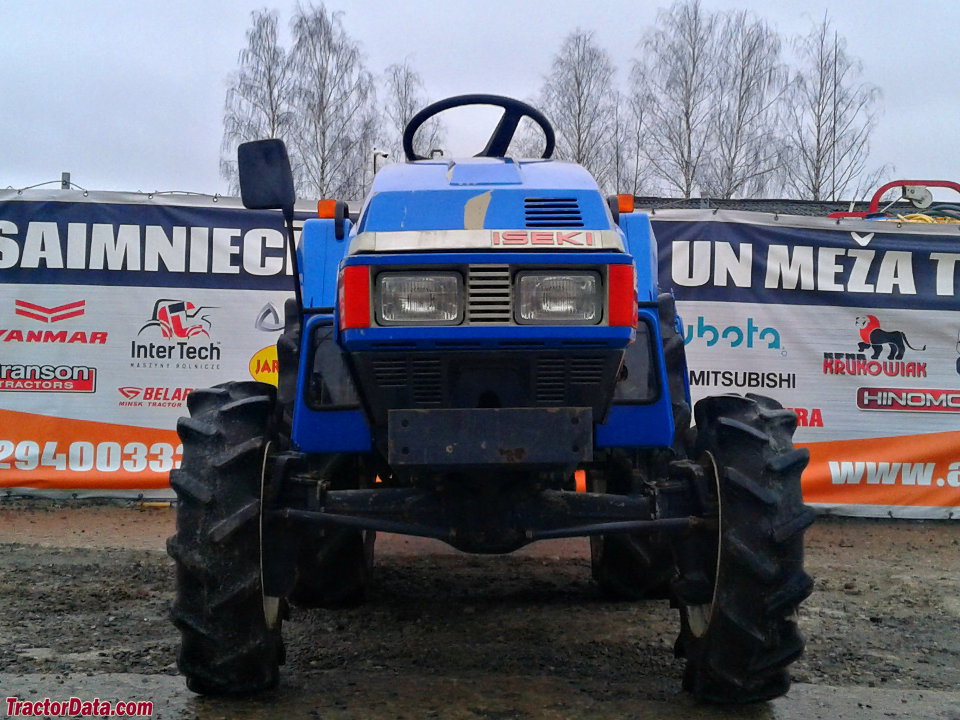

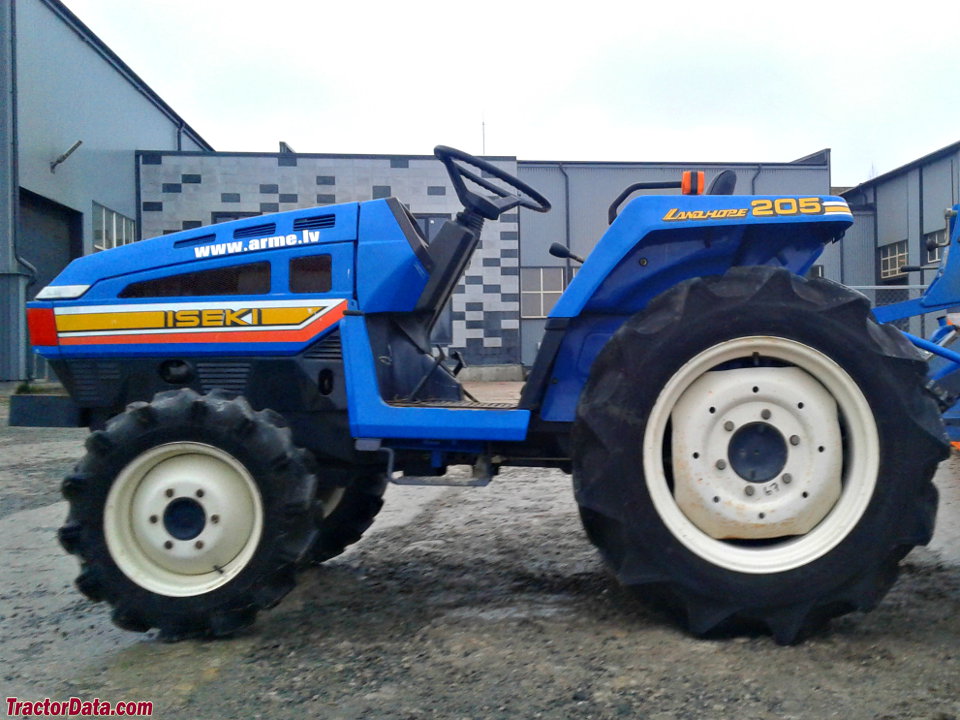

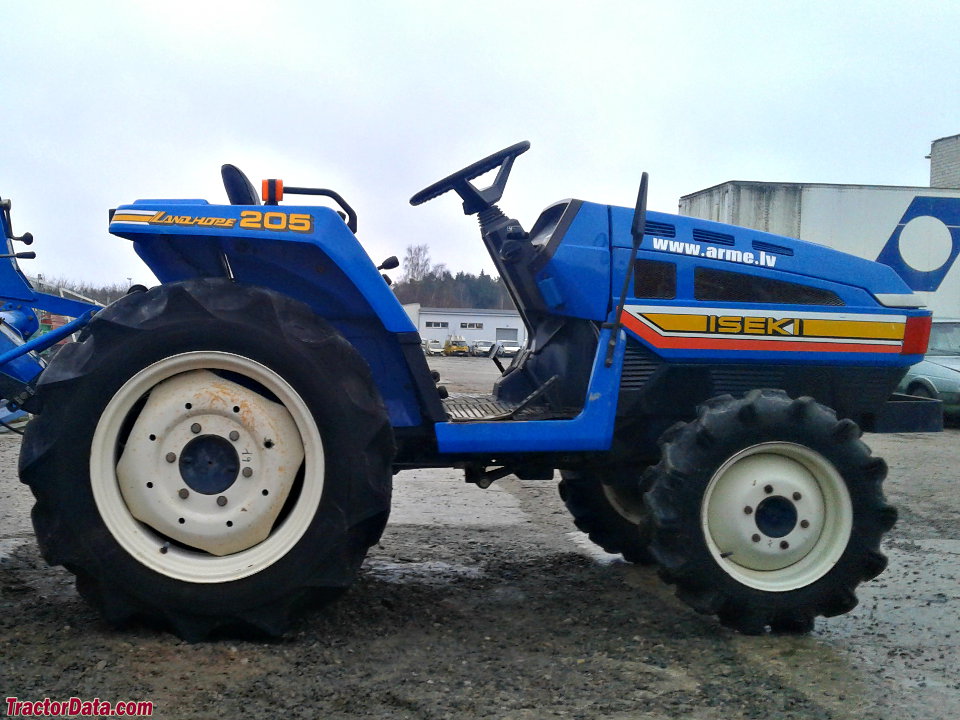

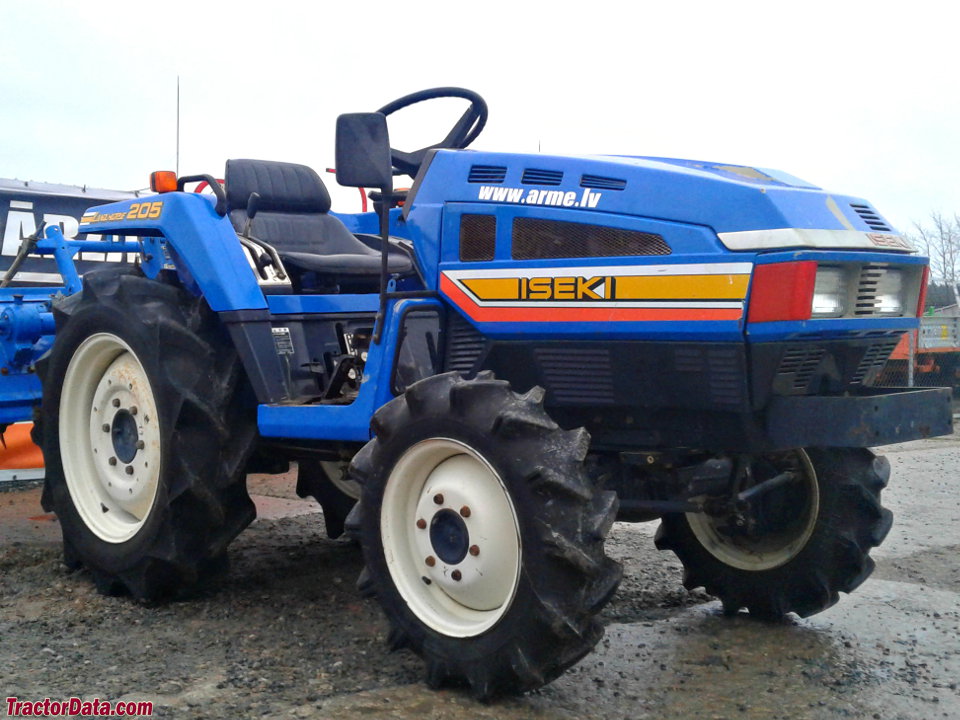

Iseki TU205 Landhope
Iseki TU205 Landhope — Landhope TU Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1896 to 2094 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference

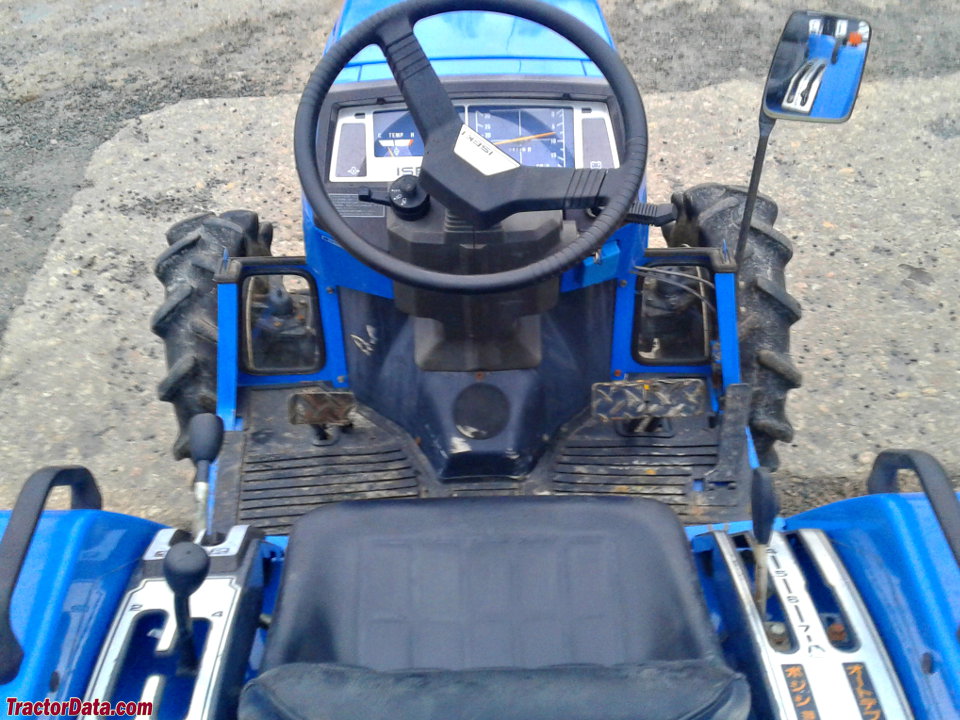

Open operator station.Reference
Variants
TU205F4WDReference
Engine
Iseki 1.2L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.7 kWReference
Iseki E3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM847@2500Reference
Engine RPM1309@2500Reference
Dimensions
Wheelbase146 cmReference
Weight1896 to 2094 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length290 cmReference
Width120 cmReference
Height140 cmReference
2WD Weight860 kgReference
4WD Weight949 kgReference
2WD Ground clearance26 cmReference
4WD Ground clearance27 cmReference
2WD Front tread93/98 cmReference
4WD Front tread102 cmReference
Rear tread93/109 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
