Tractor · 1981Unverified

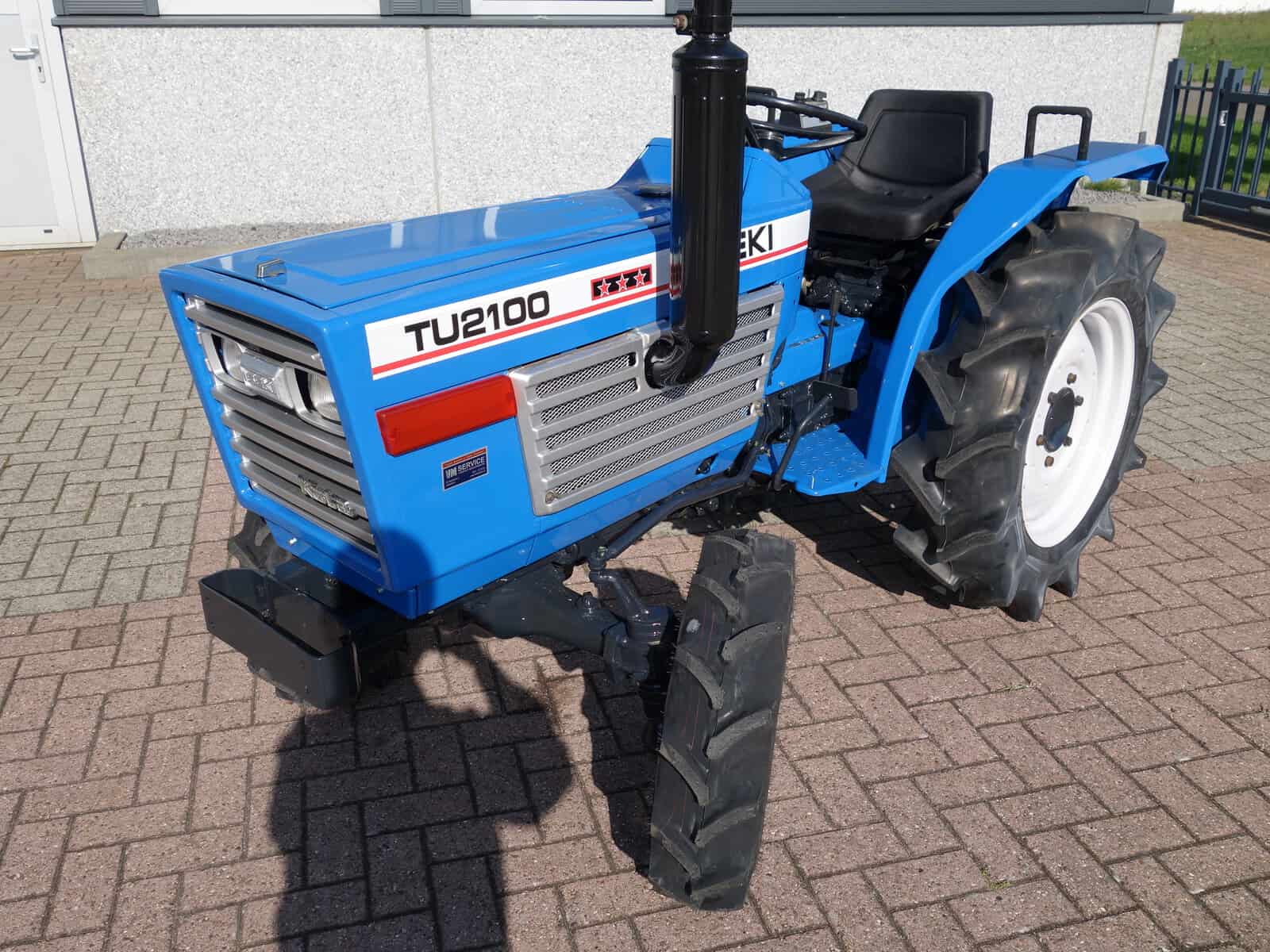

Iseki TU2100
Iseki TU2100 — TU Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1565 to 1598 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TU2100F4WDReference
Engine
Isuzu 1.2L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine15.4 kWReference
Isuzu 3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power15.4 kWReference
Rated RPM2300Reference
Torque72.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity7.0 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Oil capacity17.0 LReference
Six gears, plus two reverse gears, in two ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM528@2300Reference
Engine RPM814@2300Reference
Engine RPM1288@2300Reference
Dimensions
Wheelbase134 cmReference
Weight1565 to 1598 poundsReference
Front tire4.00-12Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 9.5-22Reference
Length261 cmReference
2WD Width115 cmReference
4WD Width116 cmReference
Height (exhaust)193 cmReference
2WD Weight709 kgReference
4WD Weight724 kgReference
2WD Ground clearance39 cmReference
4WD Ground clearance29 cmReference
2WD to inches 96 to 0 cm Front tread37.8Reference
4WD to inches 94 to 0 cm Front tread37.2Reference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
