Tractor · 1989Unverified

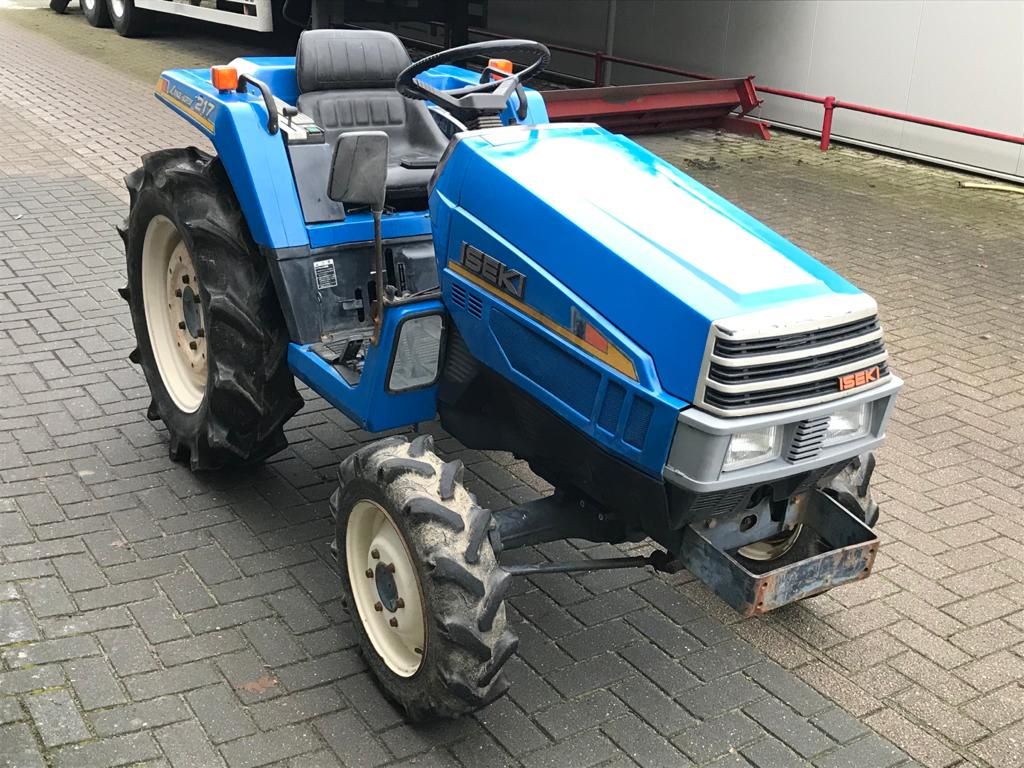

Iseki TU217
Iseki TU217 — TU 7 Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1885 to 2094 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator stationReference
Variants
TU217F4WDReference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine15.4 kWReference
Isuzu E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
Coolant capacity7.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity18.0 LReference
Three gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM847@2500Reference
Engine RPM1309@2500Reference
Dimensions
Wheelbase146 cmReference
Weight1885 to 2094 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length293 cmReference
Width120 cmReference
Height139 cmReference
2WD Weight855 kgReference
4WD Weight949 kgReference
2WD Ground clearance32 cmReference
4WD Ground clearance27 cmReference
2WD Front tread93/98 cmReference
4WD Front tread102 cmReference
Rear tread93/109 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
