Tractor · 1986Unverified

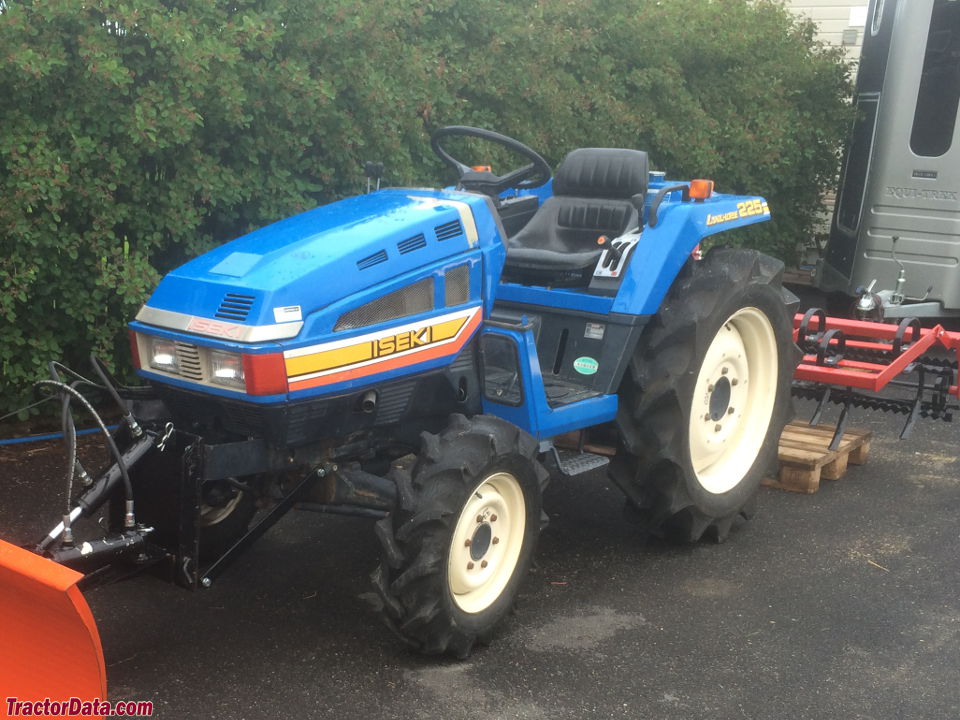

Iseki TU225 Landhope

Name: Iseki TU225 Landhope
Brand: Iseki

Iseki TU225 Landhope — Landhope TU Series · 22 hp. Reference specifications; pending source verification.

The Iseki TU225 Landhope is a tractor with a rated power of 22 hp, situated at the lighter end of its class. It was manufactured from 1986 to 1990. This model features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The listed operating weight of the tractor is 1885 to 2083 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

1885 to 2083 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

22 hp

Recorded weight

855 kg

Transmissions

12-speed

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Open operator station.Reference

Variants

TU225F4WDReference

Engine

Iseki 1.3L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine16.2 kWReference

Iseki E3AE1Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke80 x 86 mmReference

Power16.2 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM553@2500Reference

Engine RPM847@2500Reference

Engine RPM1309@2500Reference

Dimensions

Wheelbase152 cmReference

Weight1885 to 2083 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

Length290 cmReference

Width120 cmReference

2WD Height138 cmReference

4WD Height140 cmReference

2WD Weight855 kgReference

4WD Weight944 kgReference

Ground clearance29 cmReference

2WD Front tread93/98 cmReference

4WD Front tread104 cmReference

Rear tread93/109 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
