Tractor · 1989Unverified

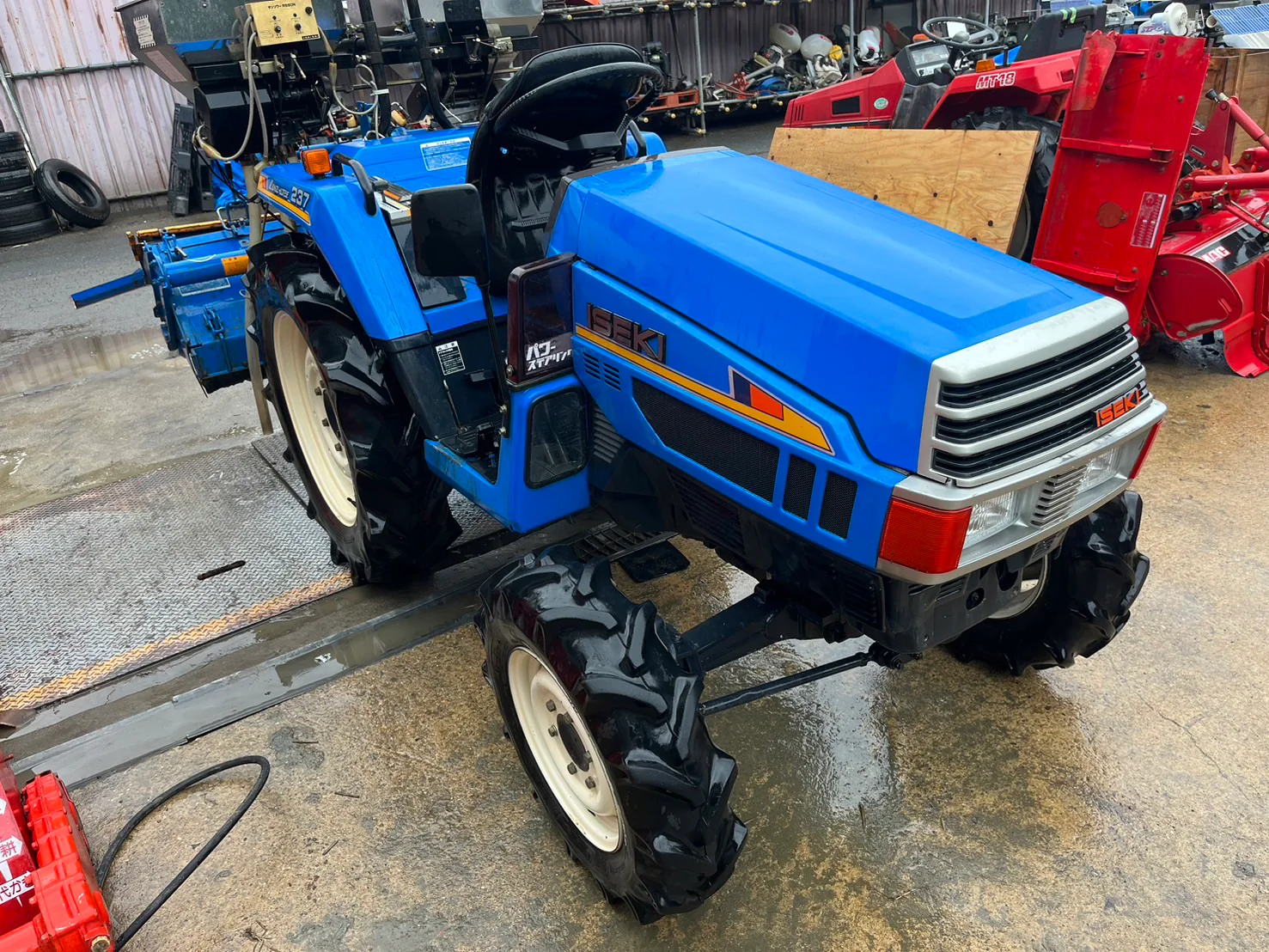

Iseki TU237
Iseki TU237 — TU 7 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1896 to 2083 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator stationReference
Variants
TU237F4WDReference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine16.9 kWReference
Isuzu E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power16.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
Coolant capacity7.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity18.0 LReference
Three gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM847@2500Reference
Engine RPM1309@2500Reference
Dimensions
Wheelbase152 cmReference
Weight1896 to 2083 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length293 cmReference
Width120 cmReference
2WD Height138 cmReference
4WD Height140 cmReference
2WD Weight860 kgReference
4WD Weight944 kgReference
2WD Ground clearance33 cmReference
4WD Ground clearance29 cmReference
2WD Front tread93/98 cmReference
4WD Front tread104 cmReference
Rear tread93/109 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
