Tractor · 1986Unverified

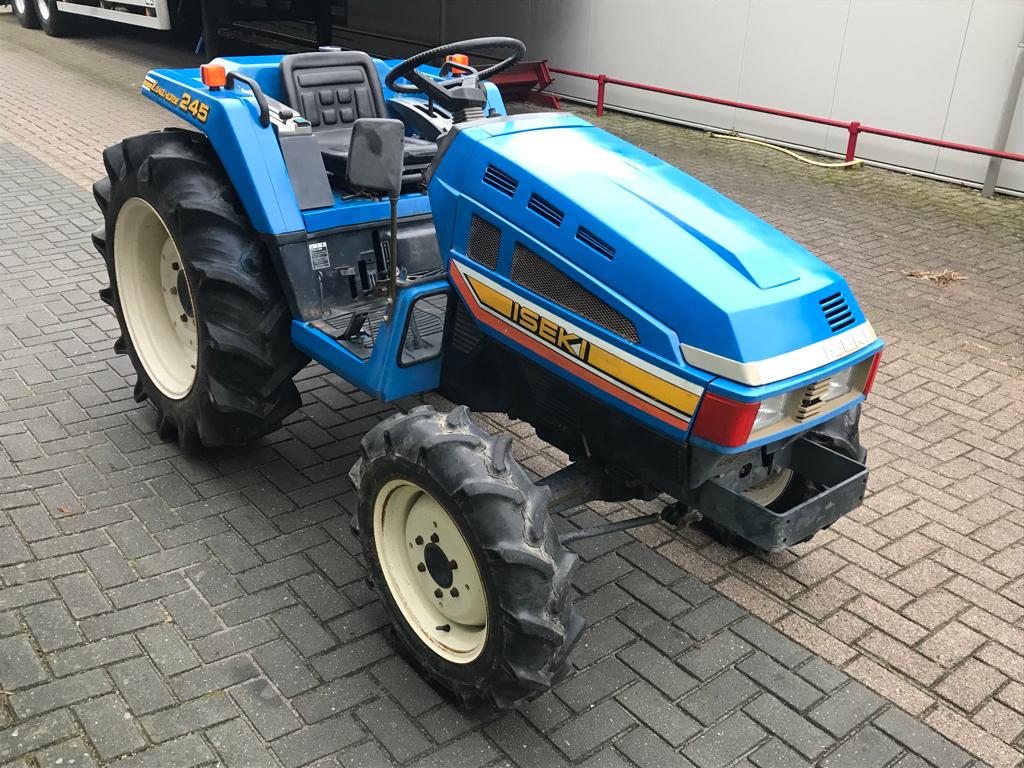

Iseki TU245 Landhope
Iseki TU245 Landhope — Landhope TU Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1962 to 2161 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Open operator station.Reference
Variants
TU245F4WDReference
Engine
Iseki 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine17.7 kWReference
Iseki E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM526@2500Reference
Engine RPM805@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase152 cmReference
Weight1962 to 2161 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length290 cmReference
Width129 cmReference
2WD Height140 cmReference
4WD Height143 cmReference
2WD Weight889 kgReference
4WD Weight980 kgReference
Ground clearance32 cmReference
Front tread93/98 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
