Tractor · Unverified

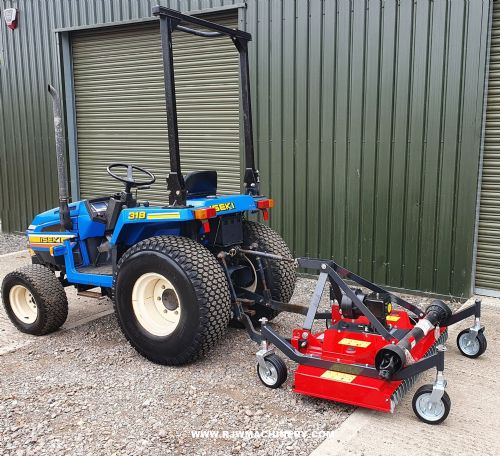

Iseki TU318
Iseki TU318 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
709 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Steeringpower assistReference
Mechanical wet disc brakesReference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank17.0 LReference
Engine13.4 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power13.4 kWReference
Starter typeelectricReference
Oil capacity2.6 LReference
Exhaust valve clearance0.254 mmReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity12.0 LReference
PTO & Hydraulics
Pressure131.8 barReference
Total flow18.0 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Rear lift (at ends)640 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight709 kgReference
Front tire5.00x12Reference
Rear tire9x16Reference
Ag front5.00x12Reference
Ag rear9x16Reference
Length271 cmReference
Width105 cmReference
Height (steering wheel)138 cmReference
Electrical
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
