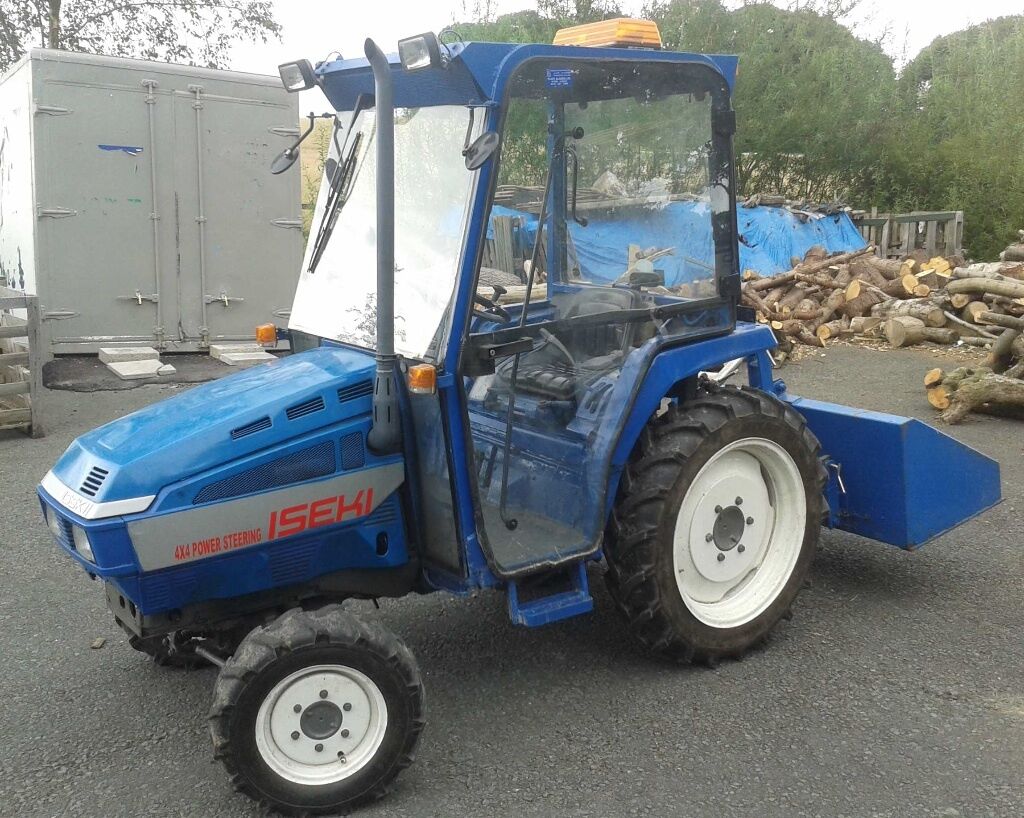

Iseki TU320
Iseki TU320 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
909 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Steeringpower assistReference
Mechanical wet disc brakesReference
Engine
Iseki 1.2L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.9 kWReference
Iseki E3AF1Reference
dieselReference
3-cylinderReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power14.9 kWReference
Starter typeelectricReference
Oil capacity4.3 LReference
Exhaust valve clearance0.457 mmReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity17.0 LReference
PTO & Hydraulics
Pressure137.3 barReference
Total flow20.8 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Rear lift (at ends)1030 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight909 kgReference
Front tire6x12Reference
Rear tire8.4x24Reference
Ag front6x12Reference
Ag rear8.4x24Reference
Length302 cmReference
Width130 cmReference
Height (steering wheel)139 cmReference
Electrical
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
