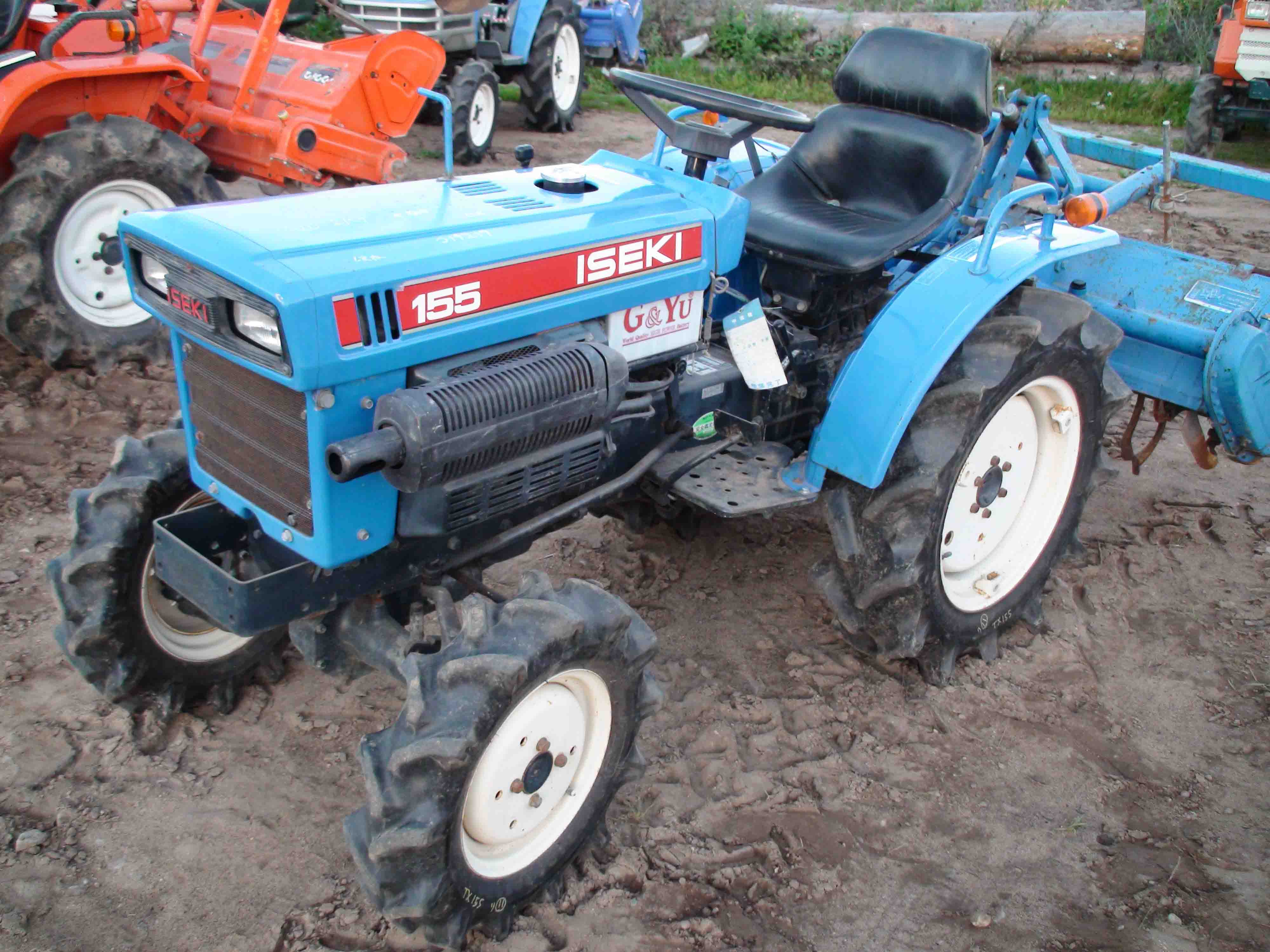

The Iseki TX155 is a tractor model with a rated output of 15 hp, making it a compact option in its class. It is equipped with a 3-cylinder diesel liquid-cooled engine, which drives four-wheel drive through a 6-speed gearbox. The listed weight of the Iseki TX155 is 524 kg, and it is designed to handle tasks of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
524 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
15 hp
Recorded weight
524 kg
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Open operator station.Reference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank12.1 LReference
Engine10.9 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power10.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM454@2600Reference
Engine RPM724@2600Reference
Engine RPM1185@2800Reference
Dimensions
Wheelbase128 cmReference
Weight524 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Length199 cmReference
Width115 cmReference
Height121 cmReference
Ground clearance24 cmReference
Front tread80 cmReference
Rear tread80/90 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
