Tractor · 1985Unverified

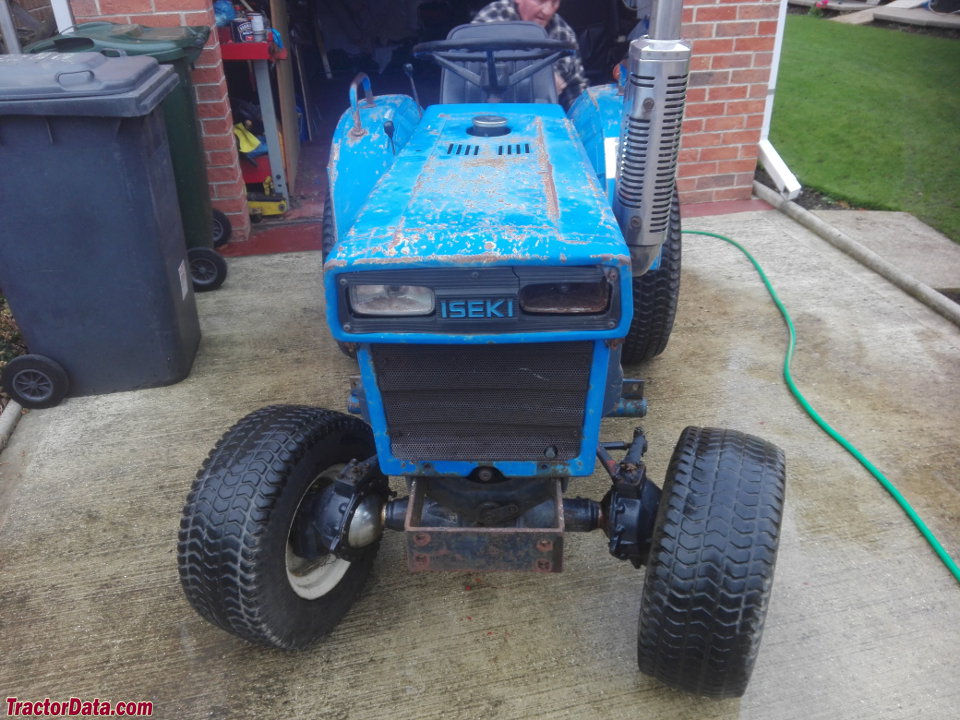

Iseki TX2160
Iseki TX2160 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1179 to 1279 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Original priceGBP5795 (1988 gear )Reference
Original priceGBP6495 (1988 hydro )Reference
Two- or four-wheel driveReference
SteeringmanualReference
Mechanical dry shoe brakesReference
Variants
TX2160F4WDReference
Field Boss 16similar White modelReference
Engine
Mitsubishi 0.8L 3-cyl dieselReference
Fuel tank12.1 LReference
Engine11.9 kWReference
Mitsubishi K3BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 78 mmReference
Power11.9 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Oil capacity3.0 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity12.3 LReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity16.0 LReference
PTO & Hydraulics
Pressure127.6 barReference
Total flow10.2 lpmReference
Rear Type0Reference
Rear lift (at ends)380 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase128 cmReference
Weight1179 to 1279 poundsReference
Front tire20x8.00-10Reference
Rear tire29x12.00-15Reference
Ag front20x8.00-10 (2WD)Reference
Ag front5.00x12 (4WD)Reference
Ag rear29x12.00-15 (2WD)Reference
Ag rear8x18 (4WD)Reference
Length203 cmReference
Width112 cmReference
Weight534 kgReference
Weight580 kgReference
Ground clearance24 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
