Tractor · 2008Unverified

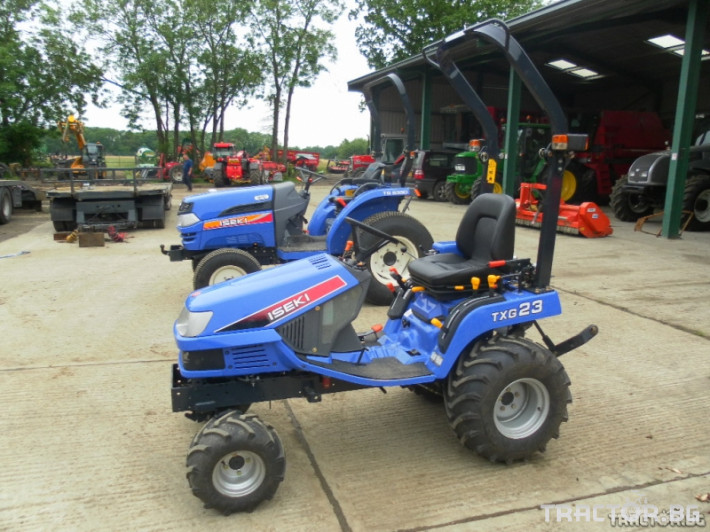

Iseki TXG23
Iseki TXG23 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
630 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
ROPSReference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank20.8 LReference
Engine16.4 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power16.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdry elementReference
Compression22.5:1Reference
Rated RPM2600Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.6 LReference
Coolant capacity4.6 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
PTO & Hydraulics
PTO (claimed)13.0 kWReference
Total flow23.1 lpmReference
Steering flow7.6 lpmReference
Steering press.83.4 barReference
Rear TypeIReference
Rear lift (at ends)539 kgReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase145 cmReference
Weight630 kgReference
Front tire18x8.50-8Reference
Rear tire26x12.00-12Reference
Ag front18x8.50-8Reference
Ag rear26x12.00-12Reference
Lawn/turf front18x.8.50-8Reference
Lawn/turf rear26x12.00-12Reference
Length247 cmReference
Width119 cmReference
Ground clearance17 cmReference
630 kgReference
2WD Max front axle499 kgReference
4WD Max front axle650 kgReference
Max rear axle749 kgReference
Iseki TXG23 attachments
48" mid-mount mower deckReference
54" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA390Reference
Battery volts12Reference
Battery AH36Reference
Attachment overview
48" mid-mount mower deckReference
54" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Lewis Backhoe
Backhoe typeLewis BackhoeReference
Digging depth189 cmReference
Reach from pivot260 cmReference
Capacities
2WD Max capacity1249 kgReference
4WD Max capacity1399 kgReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity11.0 LReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
