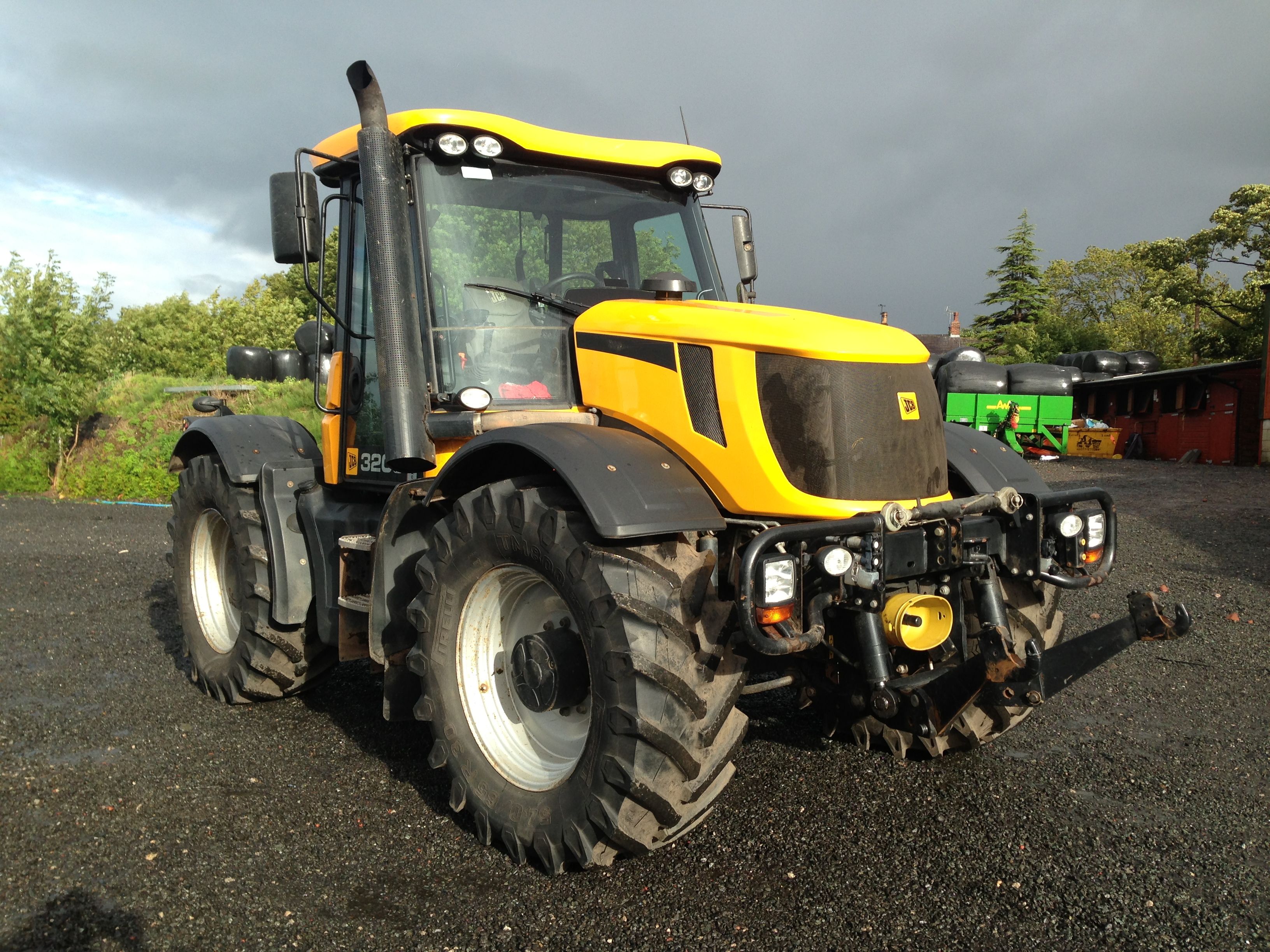

JCB 125-65
JCB 125-65 — Four-wheel Drive (4WD) tractor · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Weight
6298 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Built in Rocester, EnglandReference
Drive4x4 4WDReference
Final drivesoutboard planetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Pneumo-hydraulic dry disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Variants
130German designationReference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine90.2 kWReference
Perkins 1000-6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power90.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
Torque420.4 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Oil capacity12.5 LReference
Coolant capacity25.0 LReference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Clutch350mm dry discReference
Six gears, plus reverse, in three ranges.Reference
Capacities
Fuel280.1 LReference
PTO & Hydraulics
Hydraulic system60.2 LReference
Capacity60.2 LReference
Pressure210.0 barReference
Valves2Reference
Pump flow60.2 lpmReference
Rear TypeIIIN/IIIReference
Controlposition and electronic draft controlReference
Rear lift (at ends)5498 kgReference
Rear lift (at ends)6500 kgReference
Front HitchIIReference
Front lift (at ends)2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1894Reference
Engine RPM540E@1311@1000@2428Reference
Dimensions
Wheelbase300 cmReference
Weight6298 kgReference
Front tire445/70R24Reference
Rear tire445/70R24Reference
Ag front445/70R24Reference
Ag rear445/70R24Reference
Ag front495/70R24Reference
Ag front480/70R30Reference
Ag rear495/70R24Reference
Ag rear480/70R30Reference
Length576 cmReference
Width248 cmReference
Height (cab)289 cmReference
Height (exhaust)279 cmReference
Front tread187 cmReference
Rear tread187 cmReference
Speeds
With 495/70xR24 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
