Tractor · 1992Unverified

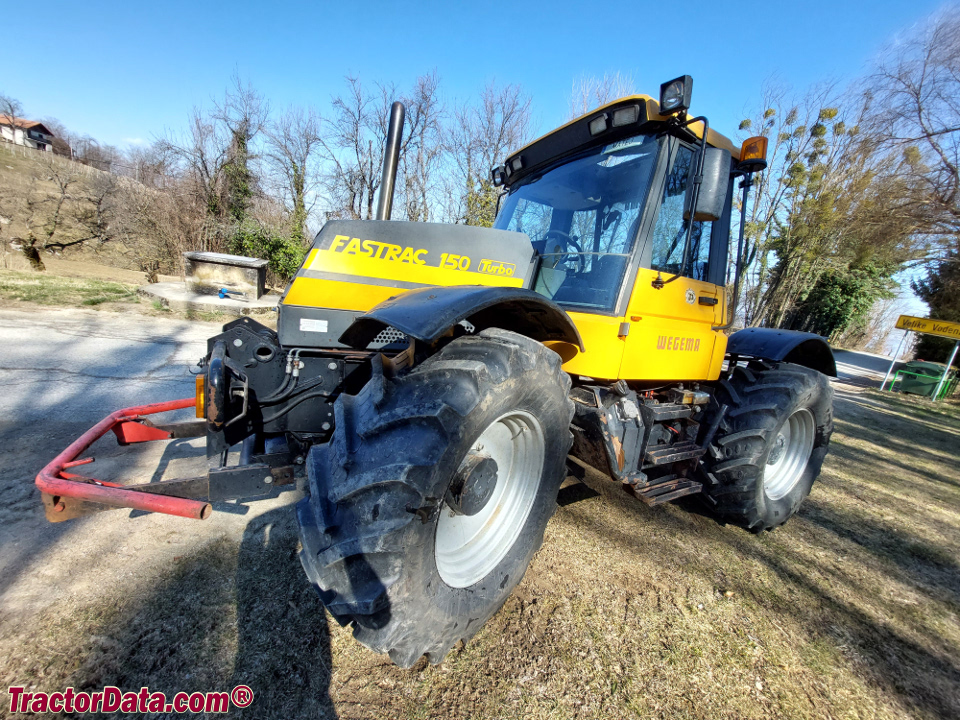

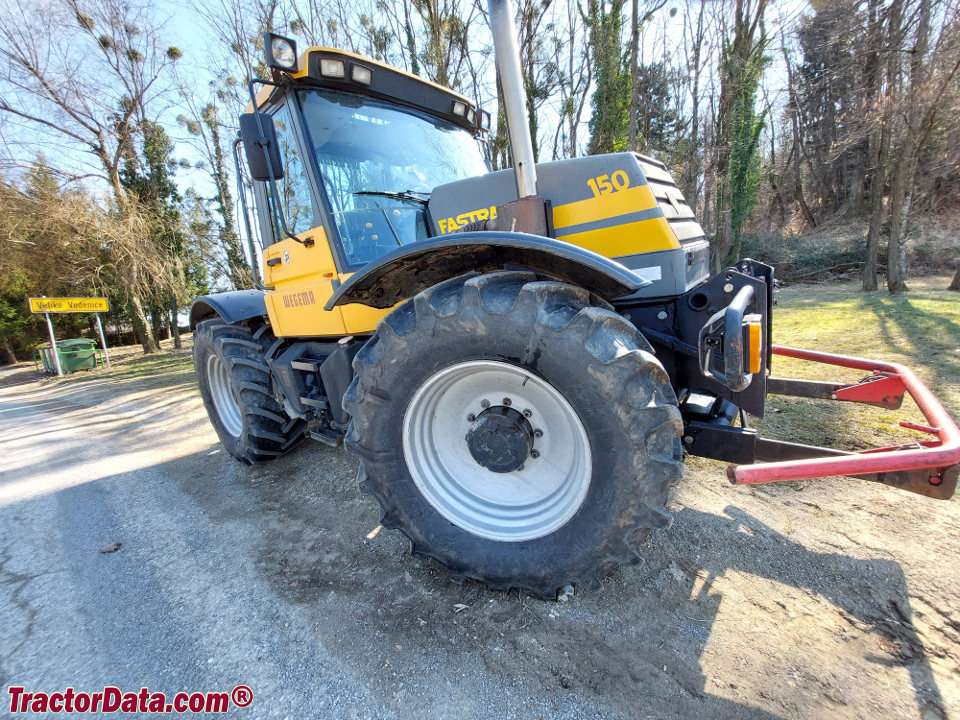

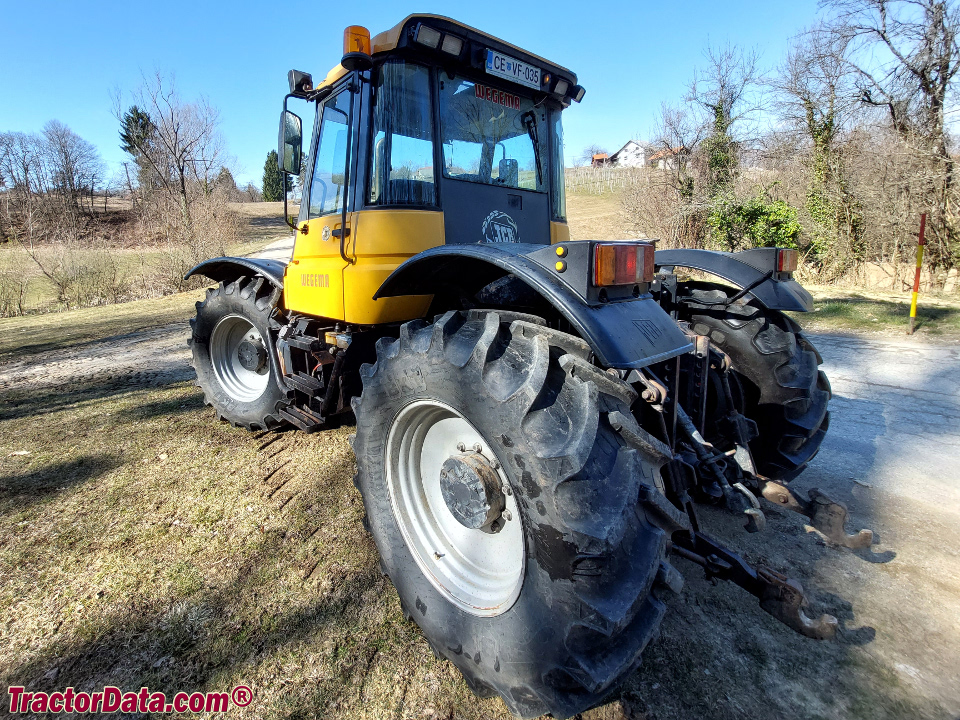

JCB 145T-65

Name: JCB 145T-65
Brand: JCB

JCB 145T-65 — Four-wheel Drive (4WD) tractor · 147 hp. Reference specifications; pending source verification.

The JCB 145T-65 is a tractor with a rated output of 147 hp, categorising it among the higher-powered machines in its class. It was manufactured from 1992 to 1993. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive system with an 18-speed gearbox, and has a listed weight of 6298 kg. Its application is suited to tasks requiring an area of around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

147 hp

Weight

6298 kg

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

147 hp

Recorded weight

6298 kg

Transmissions

18-speed synchromesh

Production years

1992-1993

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJCBReference

Four-wheel Drive (4WD) tractorReference

Built in Rocester, EnglandReference

Drive4x4 4WDReference

Final drivesoutboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Pneumo-hydraulic dry disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Variants

150German designationReference

Engine

Perkins 6.0L 6-cyl dieselReference

Engine109.6 kWReference

Perkins 1000-6TReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power109.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2600Reference

Torque513.9 NmReference

Torque RPM1600Reference

Starter typeelectricReference

Oil capacity12.5 LReference

Coolant capacity25.0 LReference

Transmission

18-speed synchromeshReference

TypesynchromeshReference

Gears18 forward and 6 reverseReference

Clutch350mm dry discReference

Six gears, plus reverse, in three ranges.Reference

Capacities

Fuel280.1 LReference

PTO & Hydraulics

Hydraulic system60.2 LReference

Capacity60.2 LReference

Pressure210.0 barReference

Valves2Reference

Pump flow60.2 lpmReference

Rear TypeIIIN/IIIReference

Controlposition and electronic draft controlReference

Rear lift (at ends)5498 kgReference

Rear lift (at ends)6500 kgReference

Front HitchIIReference

Front lift (at ends)2800 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540@1894Reference

Engine RPM540E@1311@1000@2428Reference

Dimensions

Wheelbase300 cmReference

Weight6298 kgReference

Front tire445/70R24Reference

Rear tire445/70R24Reference

Ag front445/70R24Reference

Ag rear445/70R24Reference

Ag front495/70R24Reference

Ag front480/70R30Reference

Ag rear495/70R24Reference

Ag rear480/70R30Reference

Length576 cmReference

Width248 cmReference

Height (cab)289 cmReference

Height (exhaust)279 cmReference

Front tread187 cmReference

Rear tread187 cmReference

Speeds

With 495/70R24 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
