Tractor · 1996Unverified

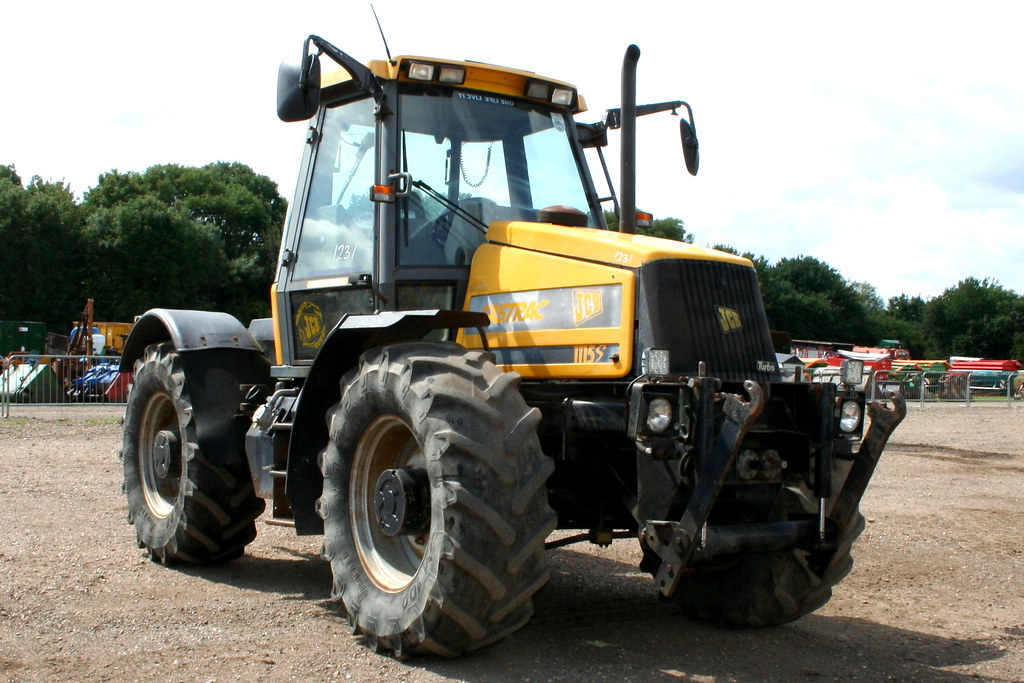

JCB Fastrac 1115S

Name: JCB Fastrac 1115S
Brand: JCB

JCB Fastrac 1115S — Four-wheel Drive (4WD) tractor · 103 hp. Reference specifications; pending source verification.

The JCB Fastrac 1115S is a tractor model that has a rated power output of 103 hp, a mid-range figure for its class. It was produced between 1996 and 1998. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. Its listed operating weight is 5850 kg and it is suitable for operations involving 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

103 hp

Weight

5850 kg

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

103 hp

Recorded weight

5850 kg

Transmissions

36-speed synchromesh

Production years

1996-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJCBReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Steeringhydrostatic powerReference

Pneumatic dry disc brakesReference

Cab standard with air conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Engine96.9 kWReference

Perkins 1000-6 HR1Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power96.9 kWReference

Rated RPM2300Reference

Torque523.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Transmission

36-speed synchromeshReference

TypesynchromeshReference

Gears36 forward and 12 reverseReference

Clutch350mm ceramic discReference

Six gears (1-6) in three ranges (low, medium, high) plus reverse range. Two-speed electro-hydraulic power shift.Reference

PTO & Hydraulics

PTO (claimed)76.8 kWReference

Hydraulic system74.9 LReference

Capacity74.9 LReference

Pressure210.0 barReference

Valves2 or 3Reference

Pump flow74.2 lpmReference

Pump flow92.0 lpmReference

Total flow74.2 lpmReference

Rear TypeIIReference

Rear TypeIIIReference

Rear lift5249 kgReference

Front HitchIIReference

Front lift2551 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1894Reference

Engine RPM1000@2088Reference

Front PTOindependentReference

Front PTO Type540/1000 (1.375)Reference

Capacities

Fuel219.9 LReference

Dimensions

Wheelbase279 cmReference

Weight5850 kgReference

Front tire480/70R28Reference

Rear tire480/70R28Reference

Ag front480/70R28Reference

Ag rear480/70R28Reference

Length515 cmReference

Width231 cmReference

Height (cab)279 cmReference

Ground clearance45 cmReference

Front tread182 cmReference

Rear tread182 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery volts12Reference

Battery AH83Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
