Tractor · 1995Unverified

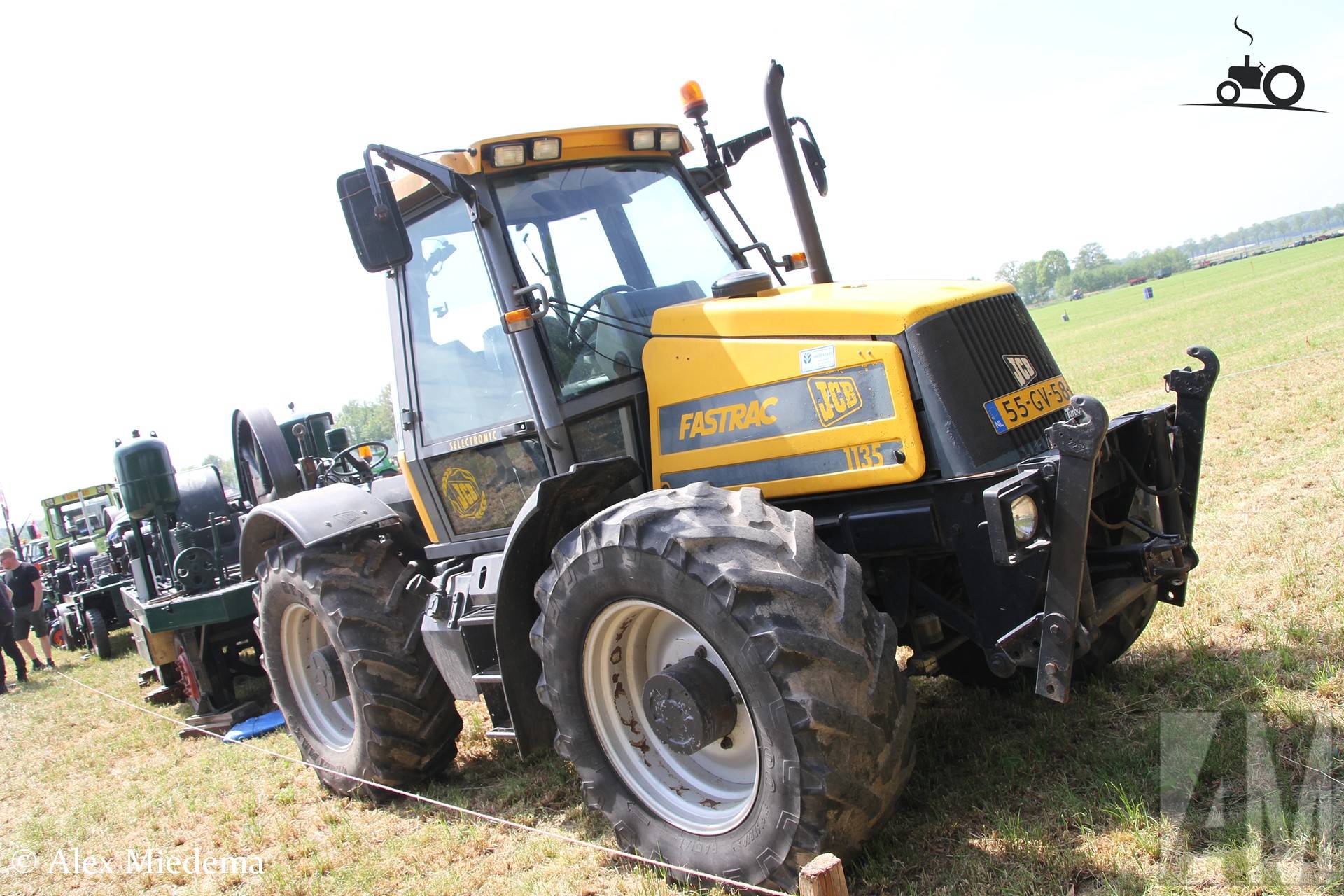

JCB Fastrac 1135
JCB Fastrac 1135 — Four-wheel Drive (4WD) tractor · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Weight
5850 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Pneumatic dry disc brakesReference
Cab standard with air conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine109.6 kWReference
Perkins 1000-6 HR5Reference
wastegate turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power109.6 kWReference
Rated RPM2300Reference
Torque610.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
36-speed synchromeshReference
TypesynchromeshReference
Gears36 forward and 12 reverseReference
Clutch350mm ceramic discReference
Six gears (1-6) in three ranges (low, medium, high) plus reverse range. Two-speed electro-hydraulic power shift.Reference
PTO & Hydraulics
PTO (claimed)90.2 kWReference
Hydraulic system74.9 LReference
Capacity74.9 LReference
Pressure210.0 barReference
Valves2 or 3Reference
Pump flow74.2 lpmReference
Pump flow92.0 lpmReference
Total flow74.2 lpmReference
Rear TypeIIIReference
Rear lift6000 kgReference
Front HitchIIReference
Front lift2551 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1894Reference
Engine RPM1000@2088Reference
Front PTOindependentReference
Front PTO Type540/1000 (1.375)Reference
Capacities
Fuel219.9 LReference
Dimensions
Wheelbase279 cmReference
Weight5850 kgReference
Front tire480/70R28Reference
Rear tire480/70R28Reference
Ag front480/70R28Reference
Ag rear480/70R28Reference
Length515 cmReference
Width231 cmReference
Height (cab)279 cmReference
Ground clearance45 cmReference
Front tread182 cmReference
Rear tread182 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Battery AH83Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
