Tractor · 1993Unverified

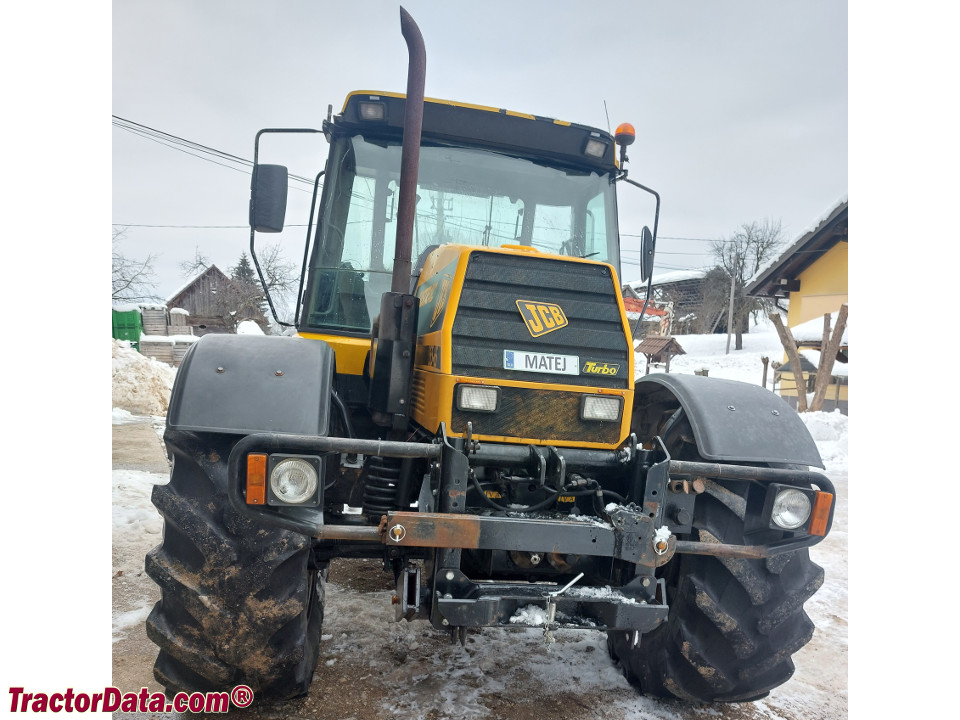

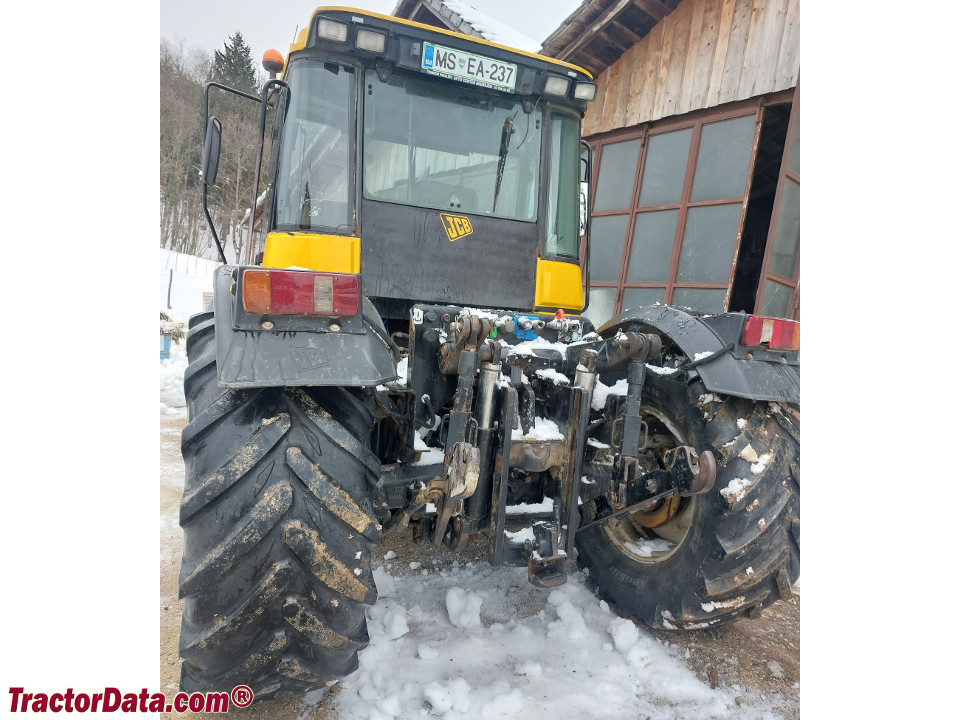

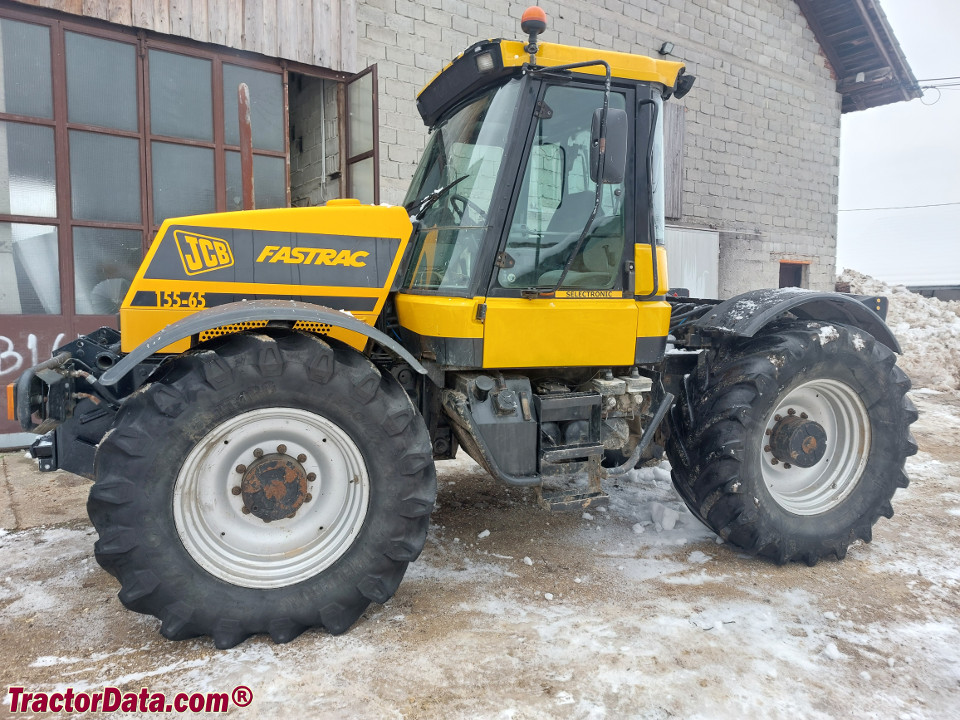

JCB Fastrac 155
JCB Fastrac 155 — Four-wheel Drive (4WD) tractor · 168 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
168 hp
Weight
6520 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Differential lockelectro-hydraulic rearReference
Steeringpower assistReference
Pneumatic dry disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine125.3 kWReference
Perkins 1000-6 T4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power125.3 kWReference
Rated RPM2400Reference
Torque602.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
36-speed synchromeshReference
TypesynchromeshReference
Gears36 forward and 12 reverseReference
Six gears (1-6) in three ranges (low, medium, high) plus reverse range. Two-speed electro-hydraulic power shift. Four design speed options available, with 40, 55, 65, or 75 kph top speed.Reference
Capacities
Fuel280.1 LReference
PTO & Hydraulics
Hydraulic system60.0 LReference
Hydraulic system76.8 LReference
Capacity60.0 LReference
Capacity76.8 LReference
Pressure210.0 barReference
Valves2Reference
Pump flow60.0 lpmReference
Rear TypeIII/IIINReference
Controlelectronic draft controlReference
Rear lift (at ends)6001 kgReference
Rear lift (at ends)7001 kgReference
Front HitchIIReference
Front lift3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2118Reference
Engine RPM1000@2196Reference
Front PTOindependentReference
Front PTO Type540/1000 (1.375)Reference
Front PTO Type1000 (1.75)Reference
Dimensions
Wheelbase300 cmReference
Weight6520 kgReference
Front tire480/70R30Reference
Rear tire480/70R30Reference
Ag front480/70R30Reference
Ag rear480/70R30Reference
Length576 cmReference
Width248 cmReference
Height (cab)289 cmReference
Ground clearance48 cmReference
Front tread187 cmReference
Rear tread187 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
