Tractor · 1998Unverified

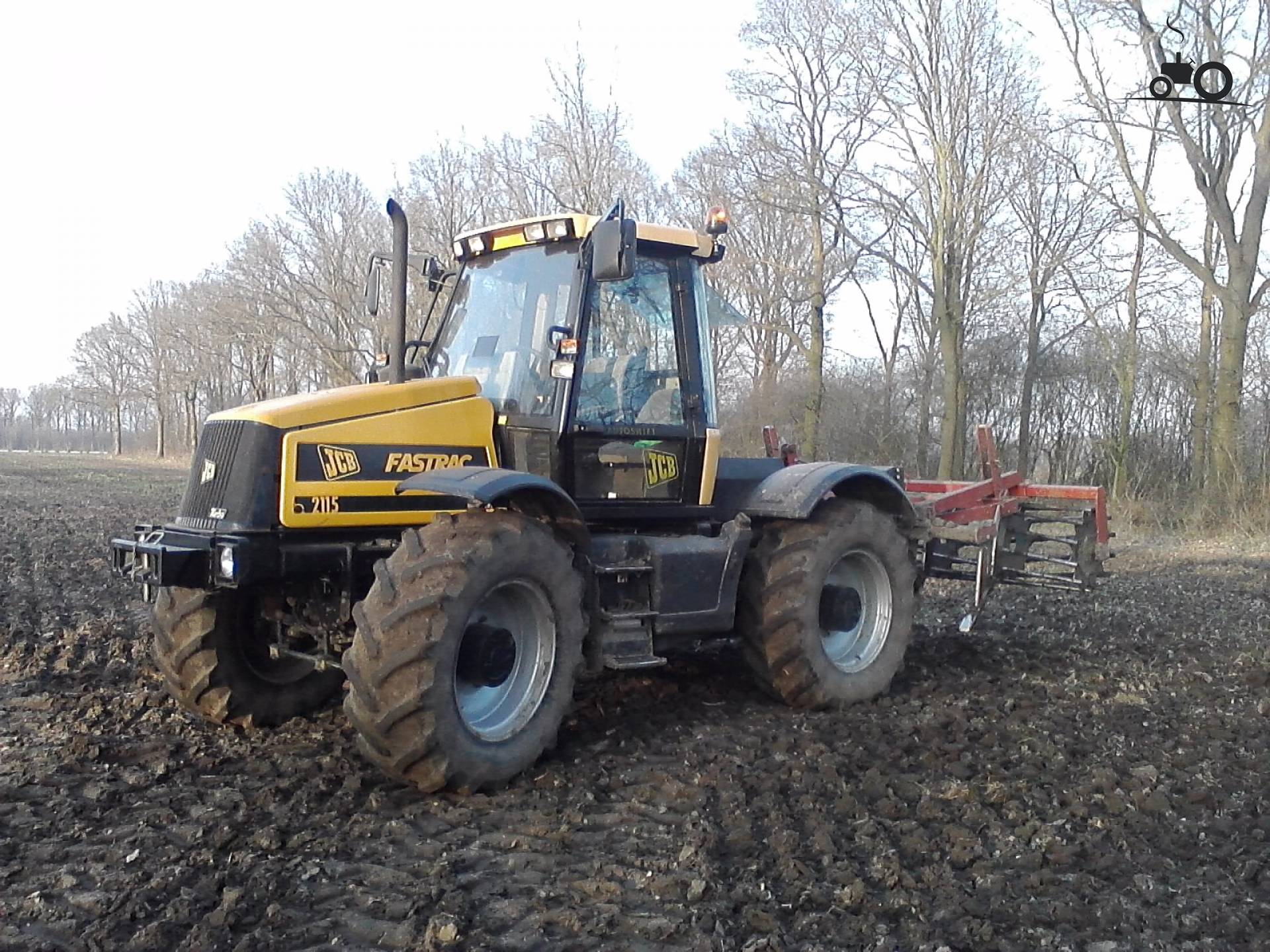

JCB Fastrac 2115
JCB Fastrac 2115 — Four-wheel Drive (4WD) tractor · 128 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
128 hp
Weight
5930 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Dry disc brakesReference
cab with air conditioningReference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank219.9 LReference
Engine95.4 kWReference
Perkins 1000-6T HR1Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power95.4 kWReference
Rated RPM2300Reference
Torque516.1 NmReference
Torque RPM1400Reference
Transmission
54-speedReference
Gears54 forward and 18 reverseReference
PTO & Hydraulics
Total flow74.2 lpmReference
Rear lift5250 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase277 cmReference
Weight5930 kgReference
Front tire480/70R30Reference
Rear tire480/70R30Reference
Ag front480/70R30Reference
Ag rear480/70R30Reference
Length508 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
