Tractor · 2005Unverified

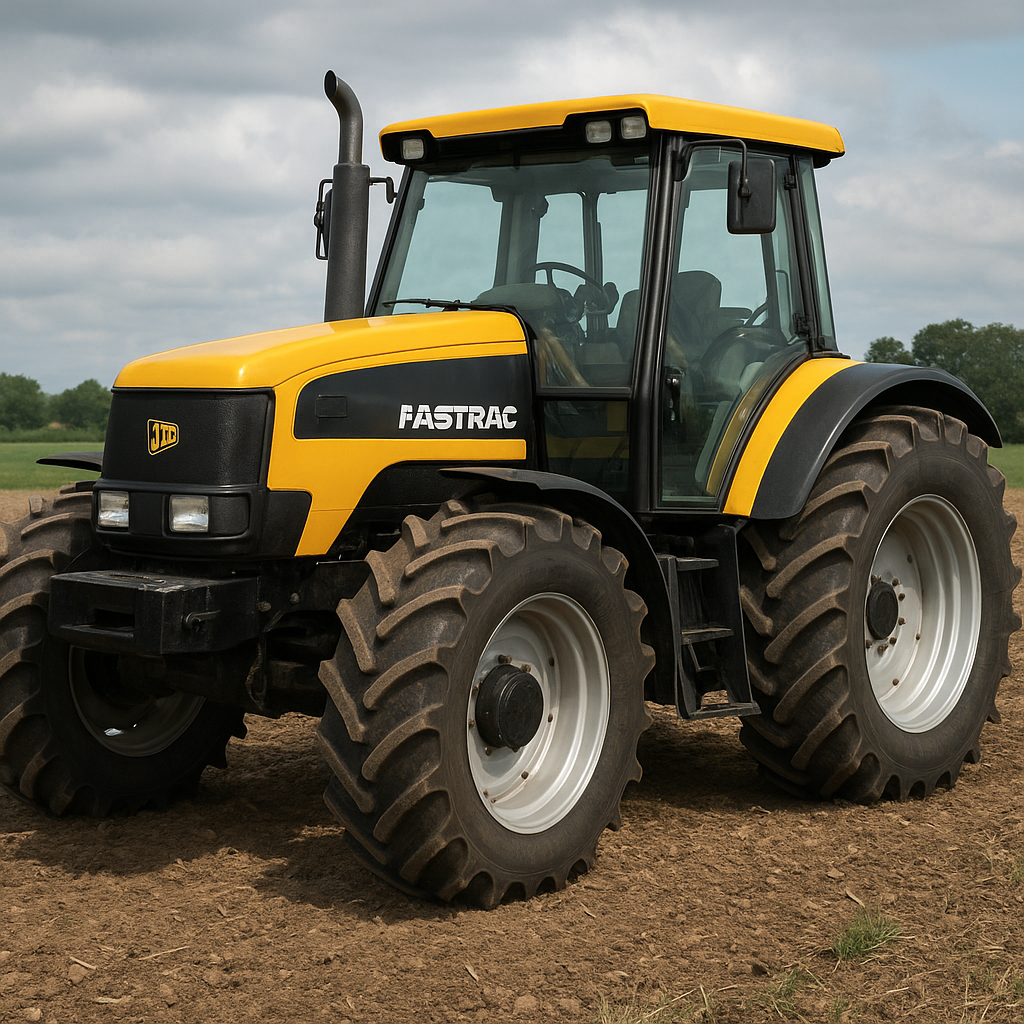

JCB Fastrac 2140
JCB Fastrac 2140 — Four-wheel Drive (4WD) tractor · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
6458 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
ABS brakesReference
Cab standard with air conditioningReference
Engine
Cummins 5.9L 6-cyl dieselReference
Engine105.9 kWReference
Cummins QSB30Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Power105.9 kWReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque597.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
54-speed partial power shiftReference
Typepartial power shiftReference
Gears54 forward and 18 reverseReference
Clutchhydraulic wet discReference
Six gears (1-6) in three ranges (Llow/Medium/High) plus reverse with three-speed Autoshift in each gear (Snail/Tortoise/Hare).Reference
PTO & Hydraulics
PTO (claimed)98.4 kWReference
Hydraulic system120.0 LReference
Capacity120.0 LReference
Valves3 or 4Reference
Total flow61.3 lpmReference
Rear TypeIIIReference
Rear lift6001 kgReference
Front HitchII (optional)Reference
Front lift (at ends)2499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1894Reference
Engine RPM1000@2088Reference
Front PTOindependent (optional)Reference
Front PTO Type540/1000Reference
Capacities
Fuel219.9 LReference
Dimensions
Wheelbase282 cmReference
Weight6458 kgReference
Front tire480/70R30Reference
Rear tire480/70R30Reference
Ag front480/70R30Reference
Ag rear480/70R30Reference
Ag front540/65R30Reference
Ag rear540/65R30Reference
Length513 cmReference
Width230 cmReference
Height287 cmReference
Ground clearance40 cmReference
Front tread182 to 0 cmReference
Rear tread182 to 0 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Battery volts12Reference
Speeds
With 540/60R30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
