Tractor · 1998Unverified

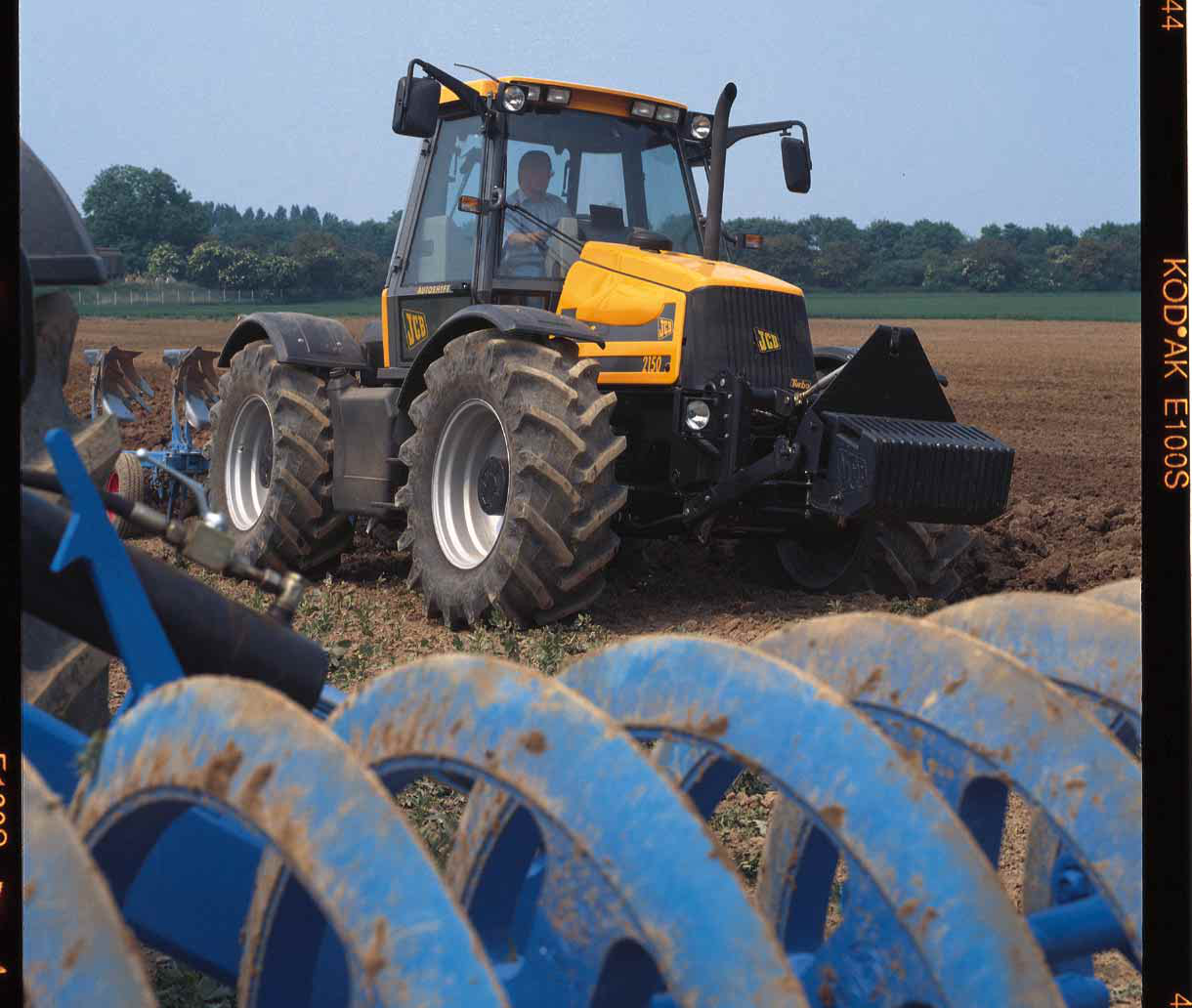

JCB Fastrac 2150
JCB Fastrac 2150 — Four-wheel Drive (4WD) tractor · 158 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
158 hp
Weight
6365 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Dry disc brakesReference
cab with air conditioningReference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank219.9 LReference
Engine117.8 kWReference
Perkins 1000-6TWReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power117.8 kWReference
Rated RPM2200Reference
Torque663.1 NmReference
Torque RPM1500Reference
Transmission
54-speedReference
Gears54 forward and 18 reverseReference
PTO & Hydraulics
Total flow74.2 lpmReference
Rear lift6001 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase277 cmReference
Weight6365 kgReference
Front tire520/70R30Reference
Rear tire520/70R30Reference
Ag front520/70R30Reference
Ag rear520/70R30Reference
Length508 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
