Tractor · 1998Unverified

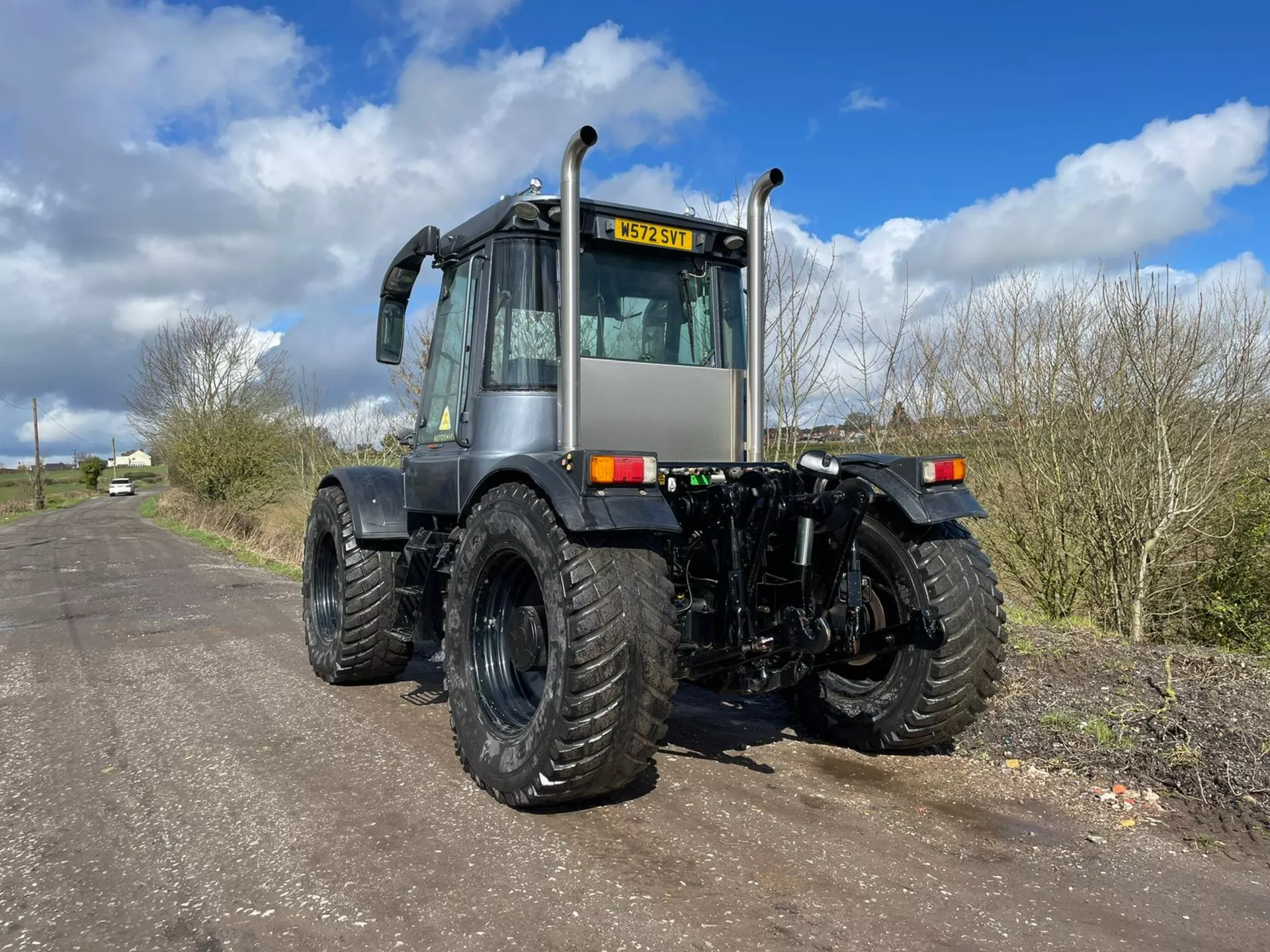

JCB Fastrac 3155
JCB Fastrac 3155 — Four-wheel Drive (4WD) tractor · 168 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
168 hp
Weight
6765 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringpower assistReference
Dry disc brakesReference
cab with air conditioningReference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank350.1 LReference
Engine125.3 kWReference
Perkins 1000-6 T4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power125.3 kWReference
Rated RPM2400Reference
Torque602.1 NmReference
Torque RPM1400Reference
Transmission
36-speedReference
Gears36 forward and 12 reverseReference
PTO & Hydraulics
Total flow78.7 lpmReference
Rear lift7001 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase300 cmReference
Weight6765 kgReference
Front tire520/70R30Reference
Rear tire520/70R30Reference
Ag front520/70R30Reference
Ag rear520/70R30Reference
Length515 cmReference
Height314 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
