Tractor · 2004Unverified

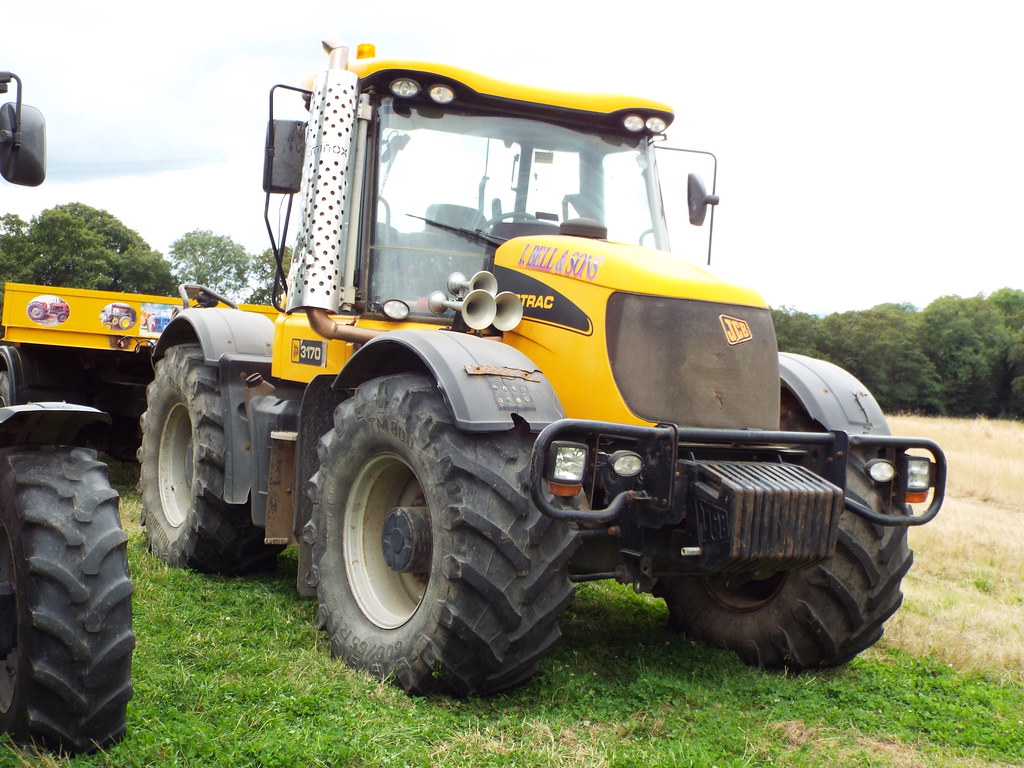

JCB Fastrac 3170
JCB Fastrac 3170 — Four-wheel Drive (4WD) tractor · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
7969 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringpower assistReference
Brakesdisc ABSReference
Brakesdual caliper optionalReference
cab with air conditioningReference
Engine
Cummins 5.9L 6-cyl dieselReference
Engine129.0 kWReference
Cummins 6BTAAReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Power129.0 kWReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque786.1 NmReference
Torque RPM1300Reference
Transmission
54-speedReference
TransmissionsynchromeshReference
Gears54 forward and 18 reverseReference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
Hydraulic system120.0 LReference
Capacity120.0 LReference
Pressure210.0 barReference
Valves3 or 4Reference
Total flow99.2 lpmReference
Rear TypeIIIReference
Rear lift6999 kgReference
Rear lift8001 kgReference
Front HitchII (optional)Reference
Front lift3499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependent (optional)Reference
Front PTO Type540/1000Reference
Capacities
Fuel350.1 LReference
Dimensions
Wheelbase306 cmReference
Weight7969 kgReference
Front tire520/70R30Reference
Rear tire520/70R30Reference
Ag front520/70R30Reference
Ag rear520/70R30Reference
Ag front495/70R24Reference
Ag rear495/70R24Reference
Length519 cmReference
Width252 cmReference
Height314 cmReference
Ground clearance40 cmReference
Electrical
Charging amps150Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
