Tractor · 1998Unverified

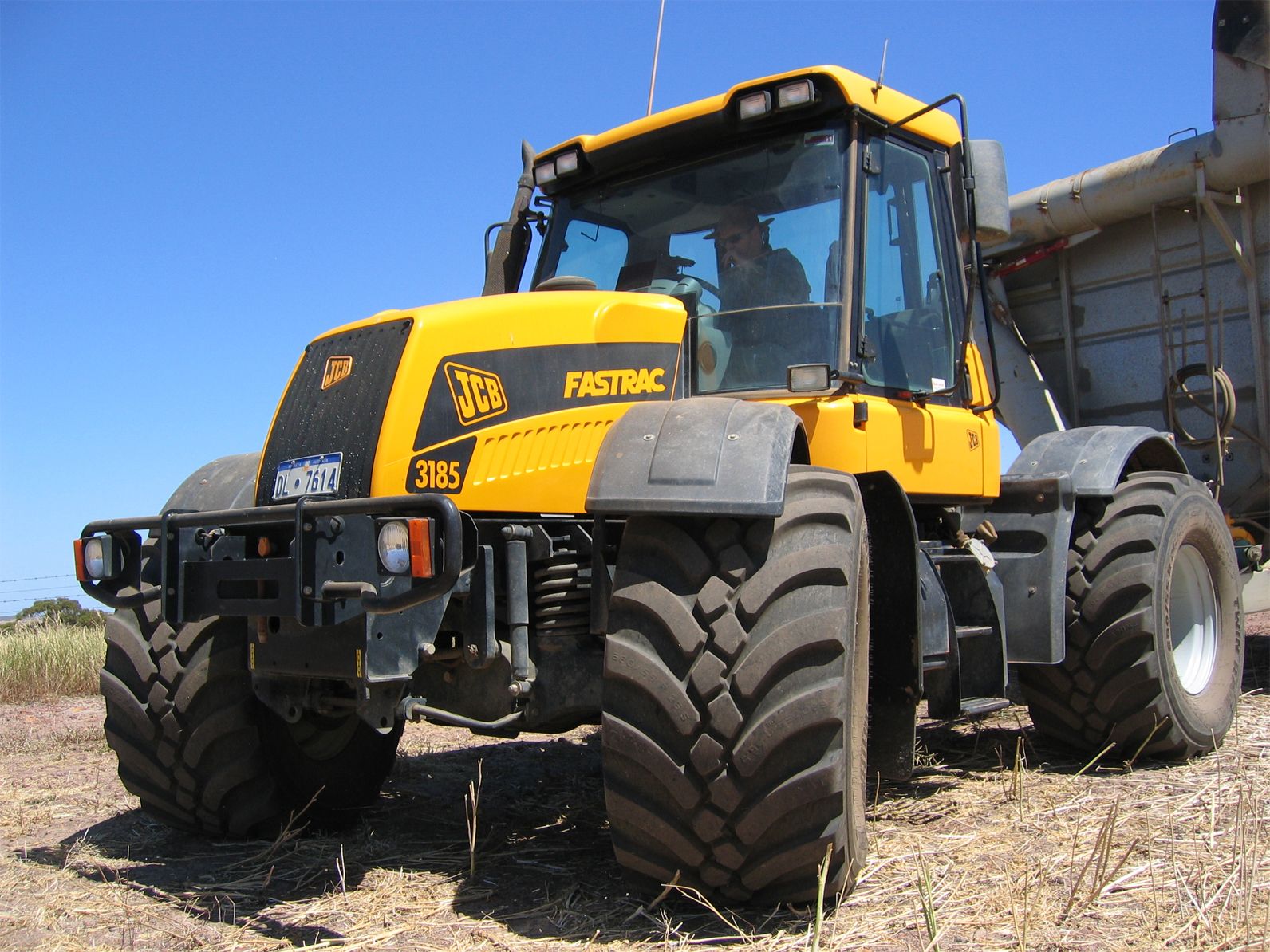

JCB Fastrac 3185

Name: JCB Fastrac 3185
Brand: JCB

JCB Fastrac 3185 — Four-wheel Drive (4WD) tractor · 188 hp. Reference specifications; pending source verification.

The JCB Fastrac 3185 is a tractor with a rated power output of 188 hp, positioning it at the upper end of its class. This model was in production from 1998 to 2002. It is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a 36-speed gearbox. The tractor has a listed operating weight of 6765 kg, making it suitable for operations of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

188 hp

Weight

6765 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

188 hp

Recorded weight

6765 kg

Transmissions

36-speed

Production years

1998-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJCBReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Steeringpower assistReference

Dry disc brakesReference

cab with air conditioningReference

Engine

Cummins 5.9L 6-cyl dieselReference

Fuel tank350.1 LReference

Engine140.2 kWReference

Cummins 6 BTAReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Power140.2 kWReference

Rated RPM2400Reference

Torque750.1 NmReference

Torque RPM1400Reference

Transmission

36-speedReference

Gears36 forward and 12 reverseReference

PTO & Hydraulics

Total flow78.7 lpmReference

Rear lift7001 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase300 cmReference

Weight6765 kgReference

Front tire520/70R30Reference

Rear tire520/70R30Reference

Ag front520/70R30Reference

Ag rear520/70R30Reference

Length515 cmReference

Height314 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
