Tractor · 2006Unverified

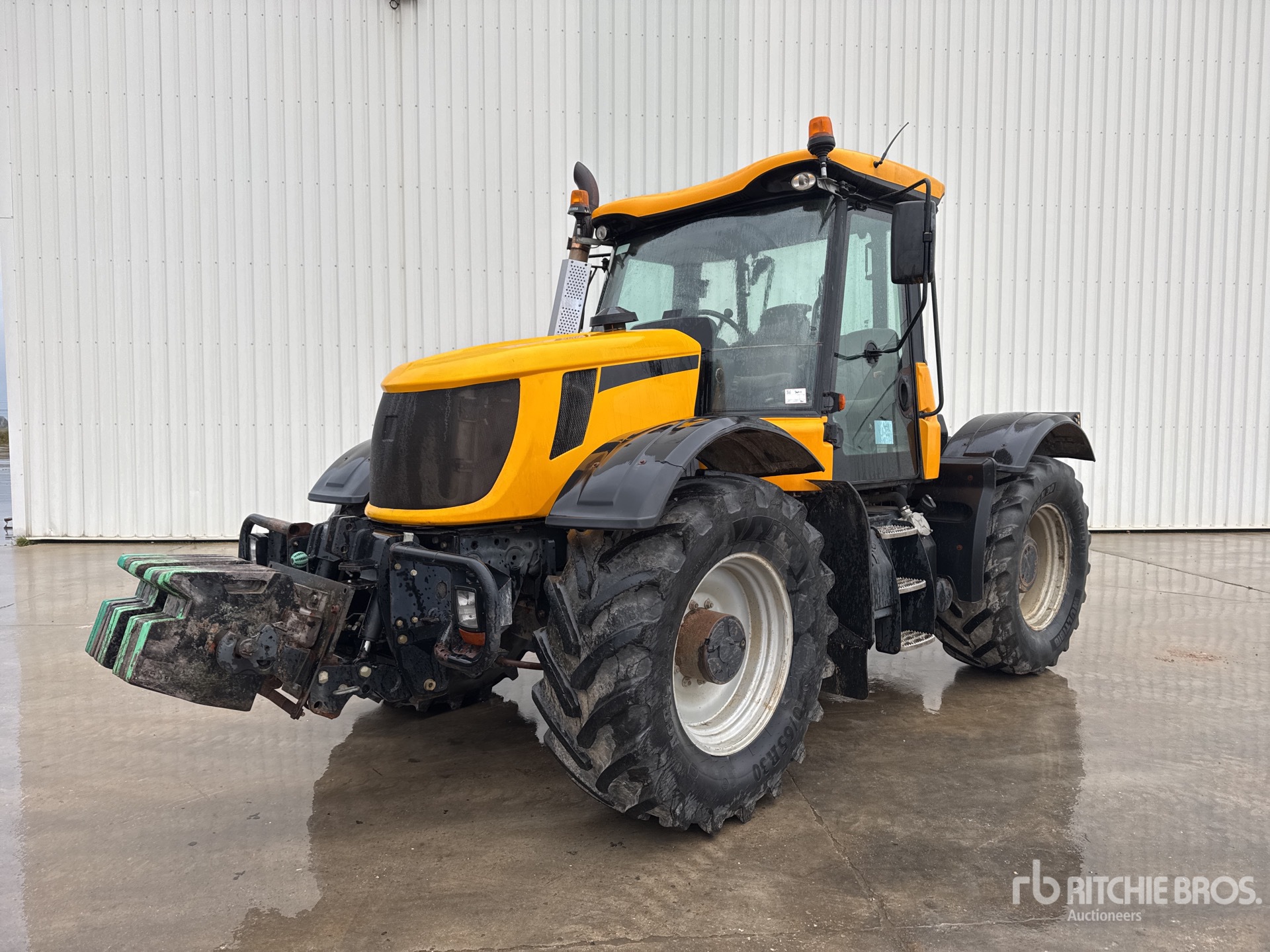

JCB Fastrac 3200

Name: JCB Fastrac 3200
Brand: JCB

JCB Fastrac 3200 — Four-wheel Drive (4WD) tractor · 169 hp. Reference specifications; pending source verification.

The JCB Fastrac 3200 is a tractor model rated at 169 hp, placing it at the powerful end of its class. Production of the model took place from 2006 to 2010. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 54-speed gearbox. Its listed operating weight is 7969 kg, making it suitable for operations of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

169 hp

Max power

200 hp

Weight

7969 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

169 hp

Recorded weight

7969 kg

Transmissions

54-speed

Production years

2006-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJCBReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Steeringpower assistReference

Brakesdisc ABSReference

Brakesdual caliper optionalReference

cab with air conditioningReference

Engine

Cummins 6.7L 6-cyl dieselReference

Engine149.1 kWReference

Cummins QSB6.7Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke107 x 124 mmReference

Power149.1 kWReference

Air cleanerdual dry elementReference

Rated RPM2300Reference

Torque762.1 NmReference

Torque RPM1500Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,300 RPMReference

Engine torque at rated speed280 kgReference

Bore and stroke4.213x4.882 inchesReference

Cooling systemliquid-cooledReference

Transmission

54-speedReference

TransmissionsynchromeshReference

Gears54 forward and 18 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 54 F and 18 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)126.0 kWReference

Hydraulic system120.0 LReference

Capacity120.0 LReference

Pressure210.0 barReference

Valves3 or 4Reference

Total flow104.1 lpmReference

Rear TypeIIIReference

Rear lift6999 kgReference

Rear lift8001 kgReference

Front HitchII (optional)Reference

Front lift3499 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependent (optional)Reference

Front PTO Type540/1000Reference

Capacities

Fuel350.1 LReference

Fuel tank350.2 LReference

Dimensions

Wheelbase306 cmReference

Weight7969 kgReference

Front tire540/65R30Reference

Rear tire540/65R30Reference

Ag front540/65R30Reference

Ag rear540/65R30Reference

Ag front495/70R24Reference

Ag rear495/70R24Reference

Length519 cmReference

Width252 cmReference

Height314 cmReference

Ground clearance40 cmReference

Electrical

Charging amps160Reference

Batteries2Reference

Battery volts12Reference

General

Make & ModelJCBReference

Power

Max Power200 hpReference

PTO

PTO Power169 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Hydraulics

Pump Rated Output (total)27.5 gpmReference

Maximum operating pressure3,046 psiReference

Remote Valves3 or 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity8,001.4 kgReference

Front Hitch category (SAE designation)Category II (optional)Reference

Dimensions & weight

Overall Height315 cmReference

Overall Length519.9 cmReference

Overall Width253 cmReference

Overall weight7,969.6 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 540/65R30 | 495/70R24Reference

Front Wheel TypeAg front - 540/65R30 | 495/70R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTrueReference

Steering & brakes

Steering typepower assistReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
