Tractor · 2014Unverified

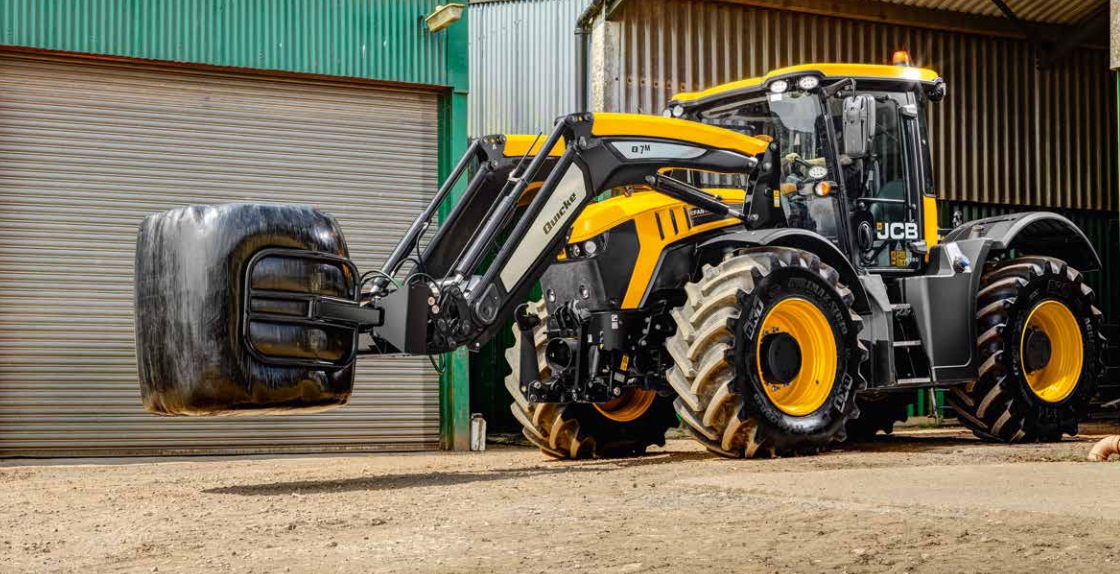

JCB Fastrac 4190
JCB Fastrac 4190 — Four-wheel Drive (4WD) tractor · 189 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
189 hp
Weight
7575 kg
Hover a source tag to verify
Overview
ManufacturerJCBReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Final drivesoutboard planetaryReference
Disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Engine (gross)140.9 kWReference
Engine (max)155.1 kWReference
AGCO Power 66AWFReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (gross)140.9 kWReference
Maximum Power (gross)155.1 kWReference
Fuel systemcommon railReference
Air cleanerdryReference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmissionReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)126.0 kWReference
Hydraulic system129.8 LReference
Capacity129.8 LReference
Pressure210.0 barReference
Valves3 to 6Reference
Pump flow148.0 lpmReference
SCV flow99.9 lpmReference
Rear TypeIIIReference
Rear lift6000 kgReference
Rear lift6999 kgReference
Rear lift8000 kgReference
Front HitchIIReference
Front lift3499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/1000 (1.75)Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Capacities
Fuel389.9 LReference
Exhaust fluid (DEF)45.0 LReference
Dimensions
Wheelbase297 cmReference
Weight7575 kgReference
Front tire540/65R34Reference
Rear tire540/65R34Reference
Ag front540/65R34Reference
Ag rear540/65R34Reference
Ag front540/65R30Reference
Ag front600/70R30Reference
Ag rear540/65R30Reference
Ag rear600/70R30Reference
Length540 cmReference
Width255 cmReference
Height (hood)167 cmReference
Height (cab)299 cmReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
