Tractor · 2005Unverified

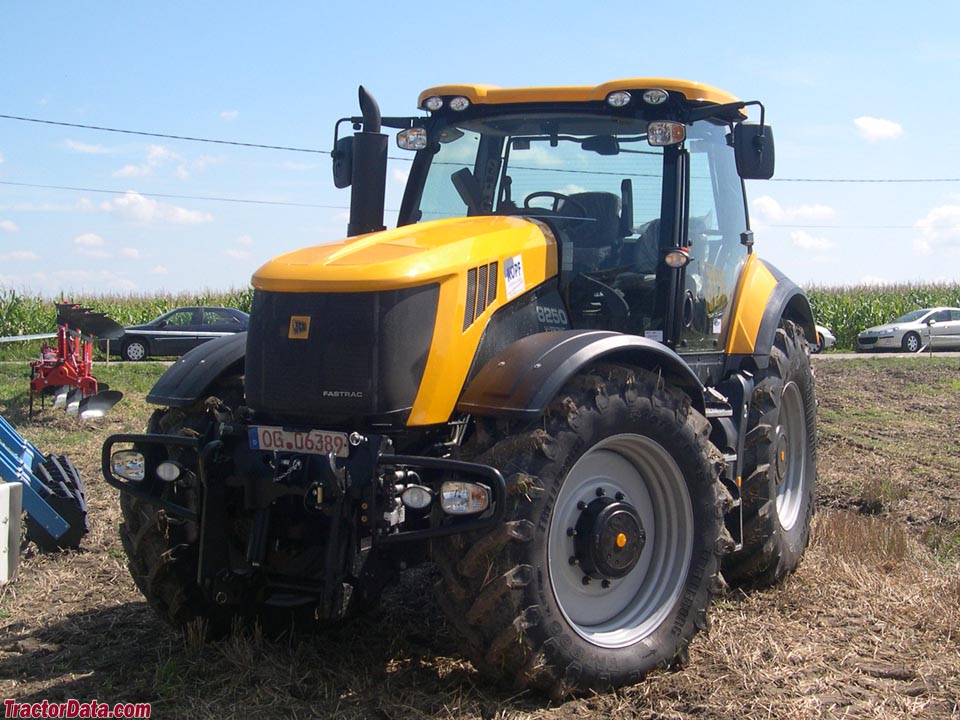

JCB Fastrac 8250

Name: JCB Fastrac 8250
Brand: JCB

JCB Fastrac 8250 — Four-wheel Drive (4WD) tractor · 225 hp. Reference specifications; pending source verification.

The JCB Fastrac 8250 is a tractor rated at approximately 225 hp, placing it at the higher end of its class in terms of power output. This model was produced from 2005 to 2011. It is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, combined with four-wheel drive and a continuously variable transmission. Its listed operating weight is 10641 kg, suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

225 hp

Max power

260 hp

Weight

10641 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

225 hp

Recorded weight

10641 kg

Production years

2005-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJCBReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Dual caliper disc ABS brakesReference

cab with air conditioningReference

Engine

Cummins 8.3L 6-cyl dieselReference

Engine193.9 kWReference

Cummins QSCReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power193.9 kWReference

Air cleanerPowercore dry elementReference

Rated RPM2200Reference

Torque1179.2 NmReference

Torque RPM1400Reference

Fuel TypedieselReference

No of Cylinders1/5/1,900 cylinderReference

Rated engine speed1/8/1,906 RPMReference

Engine torque at rated speed394.4 kgReference

Bore and stroke4.488x5.315 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously variableReference

Typecontinuously variableReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

forward and reverse optionscontinuously variable : infinite (2-range) forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)167.8 kWReference

Hydraulic system180.2 LReference

Capacity180.2 LReference

Pressure210.0 barReference

Valves3 or 4 rearReference

Valves1 or 2 frontReference

Total flow210.1 lpmReference

Rear TypeIIIReference

Rear lift9999 kgReference

Front HitchII (optional)Reference

Front lift3499 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependent (optional)Reference

Front PTO Type1000Reference

Capacities

Fuel599.9 LReference

Fuel tank600 LReference

Dimensions

Wheelbase311 cmReference

Weight10641 kgReference

Front tire540/65R34Reference

Rear tire710/70R38Reference

Ag front540/65R34Reference

Ag rear710/70R38Reference

Ag front540/65R38Reference

Length564 cmReference

Width255 cmReference

Height339 cmReference

Ground clearance46 cmReference

Electrical

GroundnegativeReference

Charging amps160Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 ampsReference

General

Make & ModelJCBReference

Cruise controlAvailableReference

SCV controlJoystickReference

Power

Max Power260 hpReference

PTO

PTO Power225 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakesdual caliper disc ABSReference

Hydraulics

Pump Rated Output (total)55.5 gpmReference

Maximum operating pressure3,046 psiReference

Remote Valves3 or 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity9,999.4 kgReference

Front Hitch category (SAE designation)Category II (optional)Reference

Dimensions & weight

Overall Height5/12/1,900 inchesReference

Overall Length564.9 cmReference

Overall Width255 cmReference

Overall weight10,641.3 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 710/70R38 | 710/70R38Reference

Front Wheel TypeAg front - 540/65R34 | 540/65R38Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
