Tractor · 1947Unverified

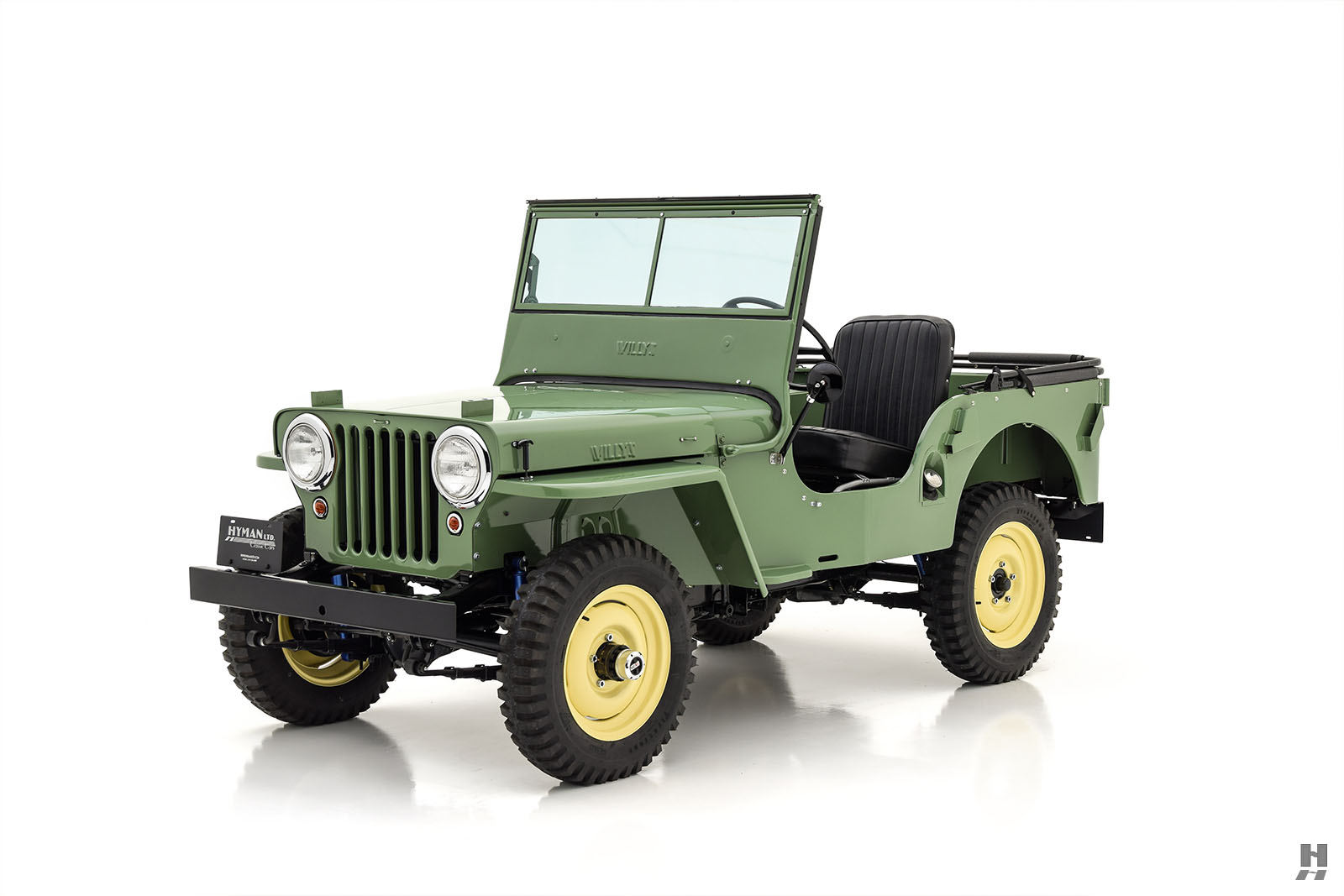

Jeep CJ-2A
Jeep CJ-2A — Truck-type tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
923 kg
Hover a source tag to verify
Overview
ManufacturerJeepReference
Truck-type tractorReference
Built in Toledo, Ohio, USAReference
Four-wheel driveReference
SteeringmanualReference
Hydraulic drum brakesReference
Open operator station.Reference
Engine
Willys 2.2L 4-cyl gasolineReference
Fuel tank39.7 LReference
Engine44.7 kWReference
Plows2 (12-inch)Reference
Willys L-134Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke79 x 111 mmReference
Power44.7 kWReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM2400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts6Reference
Coolant capacity10.4 LReference
Oil capacity4.7 LReference
Transmission
6-speed sliding gearReference
TransmissionBorg-Warner T-90Reference
Typesliding gearReference
Gears6 forward and 2 reverseReference
Three gears (1-3) plus reverse (R) with a two-speed Spicer transfer case.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTOoptionalReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase203 cmReference
Weight923 kgReference
Front tire6x16Reference
Rear tire6x16Reference
Ag front6x16Reference
Ag rear6x16Reference
Length311 cmReference
Width149 cmReference
Height176 cmReference
Height133 cmReference
Shipping weight923 kgReference
Max weight1332 kgReference
Front tread122 cmReference
Rear tread122 cmReference
Links
CJ-2A Manual: at the CJ-3A page.Reference
Capacities
Diameter20 cmReference
Width20 cmReference
RPM1550Reference
Speed989.38 meters/minReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
