Tractor · 1954Unverified

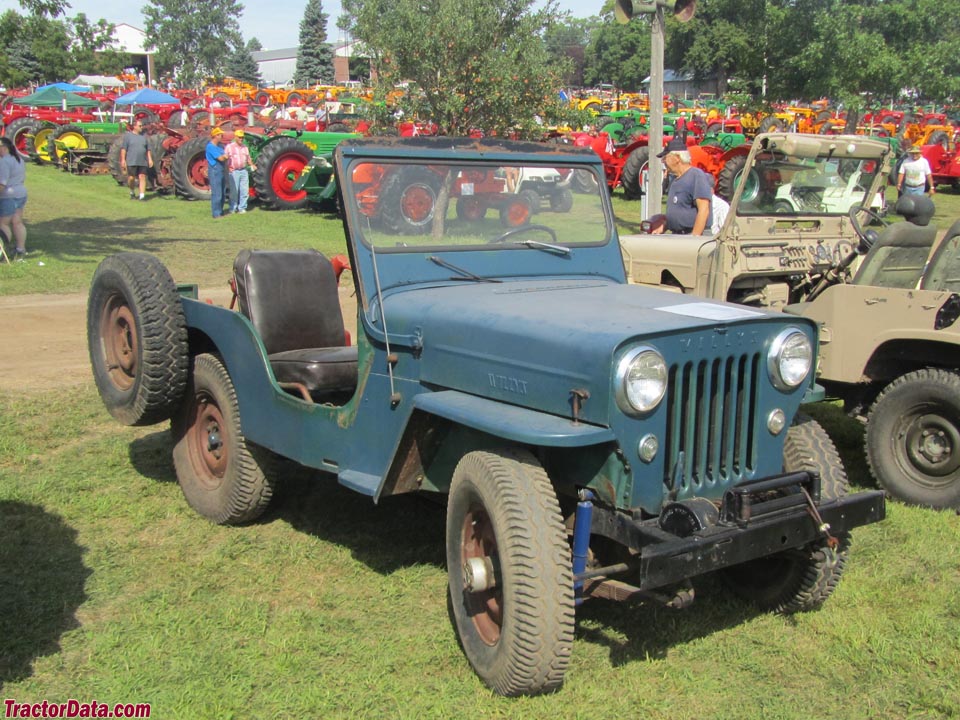

Jeep CJ-3B
Jeep CJ-3B — Truck-type tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
20.2 kW
Weight
923 kg
Hover a source tag to verify
Overview
ManufacturerJeepReference
Truck-type tractorReference
Built in Toledo, Ohio, USAReference
Four-wheel driveReference
SteeringmanualReference
Hydraulic drum brakesReference
Open operator station.Reference
Engine
Willys 2.2L 4-cyl gasolineReference
Fuel tank39.7 LReference
Engine55.9 kWReference
Plows2 (12-inch)Reference
Drawbar (tested)20.2 kWReference
Belt (tested)26.3 kWReference
Willys F-134Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke79 x 111 mmReference
Power55.9 kWReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression6.9:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts6Reference
Belt power (max)26.3 kWReference
Max power20.2 kWReference
Transmission
6-speed sliding gearReference
TransmissionBorg-Warner T-90Reference
Typesliding gearReference
Gears6 forward and 2 reverseReference
Clutchmechanical dry discReference
Three gears (1-3) plus reverse (R) with a two-speed Spicer transfer case.Reference

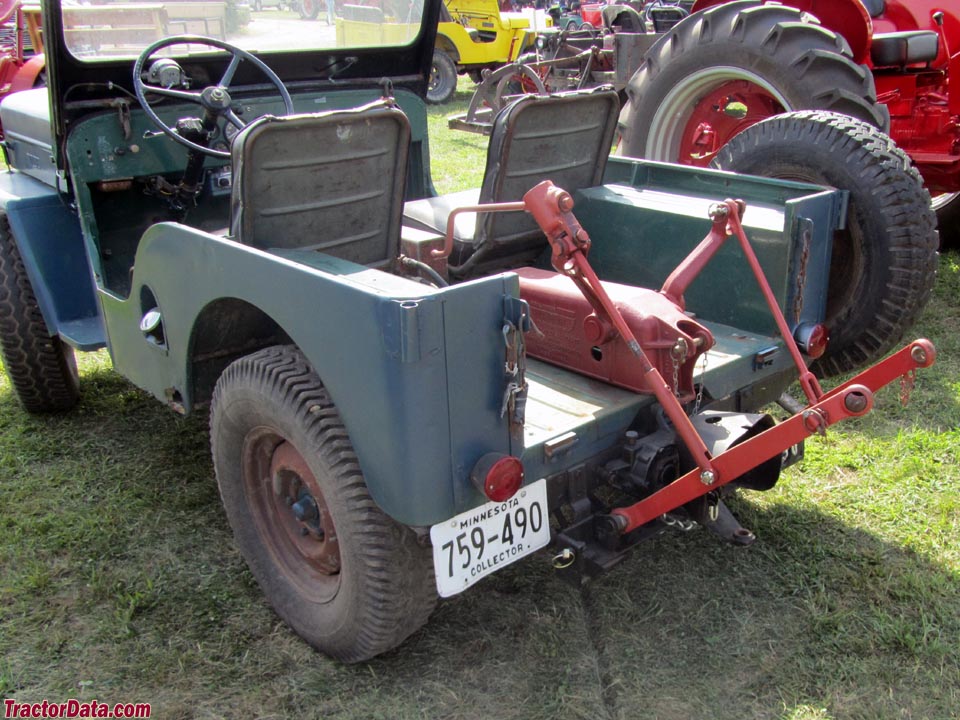

PTO & Hydraulics
Rear TypeIReference
Rear PTOoptionalReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase203 cmReference
Weight923 kgReference
Front tire6x16Reference
Rear tire6x16Reference
Ag front6x16Reference
Ag rear6x16Reference
Length330 cmReference
Height169 cmReference
Shipping weight923 kgReference
Max weight1332 kgReference
Ground clearance20 cmReference
Front tread122 cmReference
Rear tread122 cmReference
Links
:Reference
Capacities
Diameter20 cmReference
Width20 cmReference
RPM1550Reference
Speed989.38 meters/minReference
Electrical
GroundnegativeReference
Battery volts6Reference
Test results
Gasoline 6-speed 4WDAugust 28 - September 4, 1953Link: Nebraska Tractor Test 502 fileReference
Belt fuel use (max)12.9 l/hourReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull1050 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
