Tractor · 1966Unverified

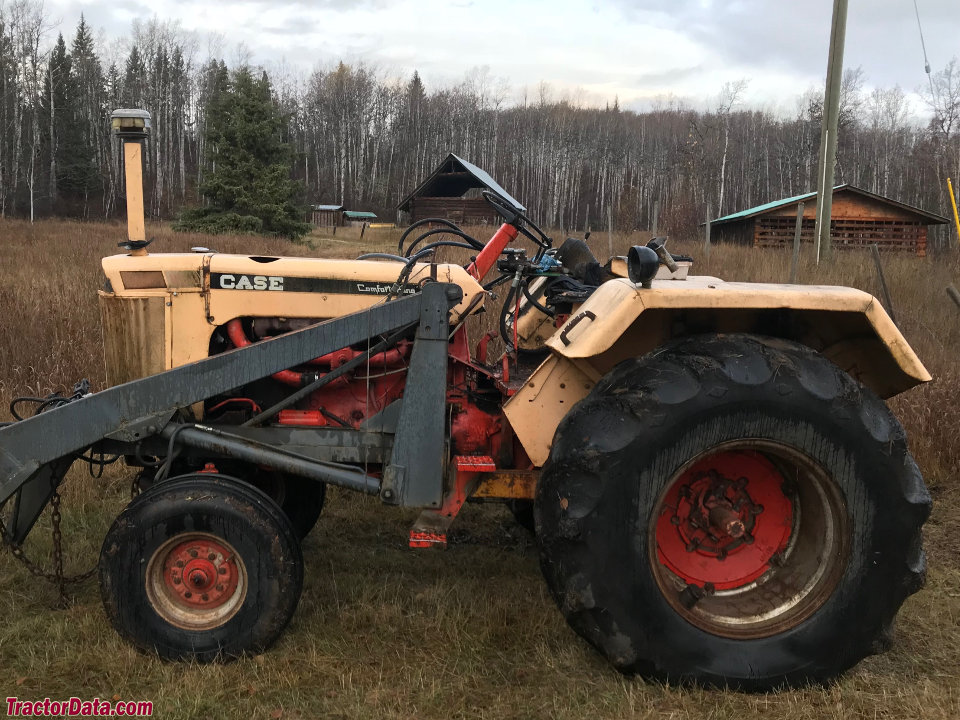

J.I. Case 1032
J.I. Case 1032 — Standard-tread tractor · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Max power
65.9 kW
Weight
4234 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built13,763 (all types)Reference
Original price was $10,300 in 1969Reference
The J.I. Case 1030 Western Special was Case model 1032. As compared to the general-purpose model 1031, the Western Special had a shorter wheelbase, large fenders and an optional wide-swing drawbar.Reference
Two-wheel driveReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Variants
10311030 General-PurposeReference
10321030 Western SpecialReference
Engine
J.I. Case 7.4L 6-cyl dieselReference
Fuel tank181.7 LReference
Plows7Reference
Drawbar (tested)65.9 kWReference
J.I. CaseReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke111 x 127 mmReference
Air cleanerdryReference
Compression15:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity37.9 LReference
Power at rated engine speed75.9 kWReference
Max power65.9 kWReference
Transmission
8-speedReference
TransmissionCase-o-maticReference
Gears8 forward and 2 reverseReference
Four gears (1-4) in two ranges (low/high). Transmission problems led to the introduction of a transmission oil cooler in 1967.Reference
PTO & Hydraulics
PTO (tested)75.9 kWReference
Valves2Reference
Pump flow45.4 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Engine RPM1000@1700Reference
Power at rated PTO speed69.5 kWReference
Dimensions
Wheelbase228 cmReference
Weight4234 kgReference
Front tire7.50-16Reference
Rear tire15.5-38Reference
Ag front7.50-16Reference
Ag rear15.5-38Reference
Ag front9.00-16Reference
Ag front10.00-16Reference
Ag front7.50-18Reference
Ag rear23.1-30Reference
Ag rear18.4-34Reference
Length391 cmReference
Width223 cmReference
Height (steering wheel)220 cmReference
Height (hood)182 cmReference
Operating weight4234 kgReference
Ballasted weight7357 kgReference
Ground clearance40 cmReference
1032 Serial Numbers
Location:Serial number plate on the tractor's instrument panel.Reference
19668279001Reference
19678306501Reference
19688332101Reference
19698356251Reference
Final8376150Reference
FAQ: How to read a serial number table.Reference
Test results
Diesel 8-speed 2WDNovember 2 - 5, 1966Link: Nebraska Tractor Test 952 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use25.7 l/hourReference
Drawbar performanceReference
Fuel use28.8 l/hourReference
Gear 4 used for power test.Reference
Max pull5468 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
