Industrial Tractor · 2013Unverified

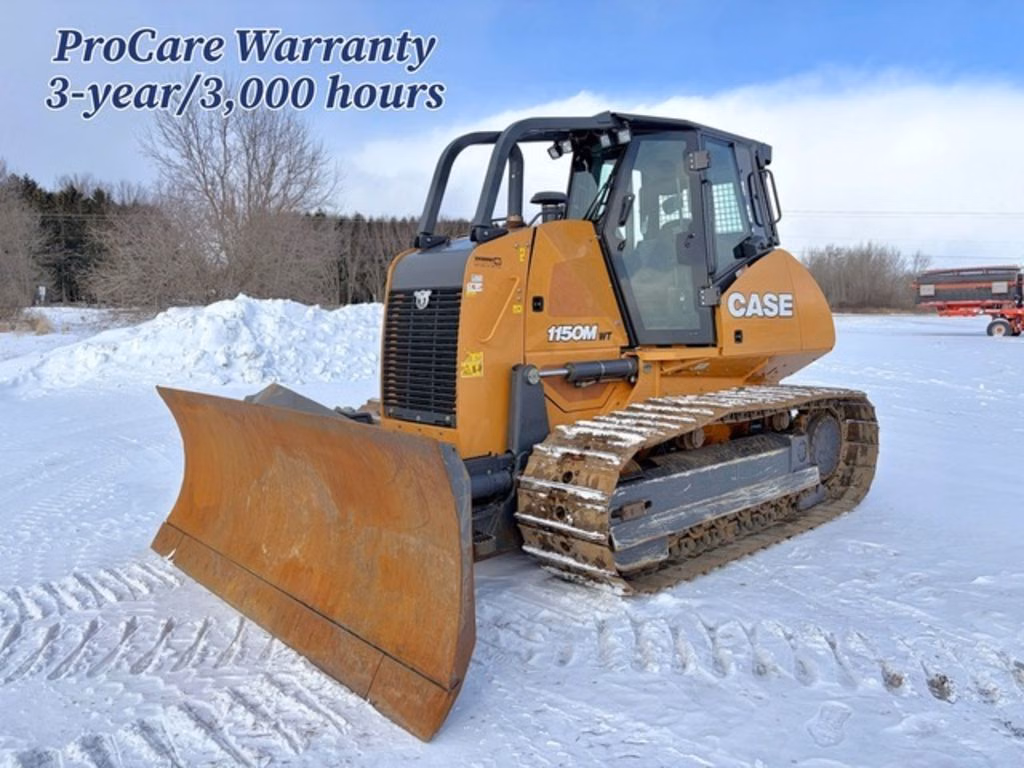

J.I. Case 1150M
J.I. Case 1150M — M Series · 138 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
138 hp
Weight
31592 to 31618 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. Case (a part of CNH)Reference
BulldozerReference
FactoriesCalhoun, Georgia, USAReference
FactoriesBurlington, Iowa, USAReference
DrivecrawlerReference
Final drivesplanetaryReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)102.9 kWReference
Engine (net)95.0 kWReference
FPTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Power (net)95.0 kWReference
Power (gross)102.9 kWReference
Air cleanerdryReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity16.4 LReference
Coolant capacity28.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Capacities
Fuel321.7 LReference
Exhaust fluid (DEF)53.0 LReference
PTO & Hydraulics
Hydraulic system193.0 LReference
Capacity193.0 LReference
Pressure195.1 barReference
Pump flow132.1 lpmReference
Dimensions
Weight31592 to 31618 poundsReference
22-inch tracksReference
XLT dozer length508 cmReference
WT dozer length508 cmReference
Height (ROPS)294 cmReference
Height (cab)294 cmReference
Operating weight14330 kgReference
Operating weight14341 kgReference
Gauge182 cmReference
Gauge203 cmReference
J.I. Case 1150M attachments
bladeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
J.I. Case 1150M Tracks
Width55 cmReference
Length on ground260 cmReference
Area on ground2.9 m²Reference
Width66 cmReference
Area on ground3.4 m²Reference
Width76 cmReference
Area on ground4.0 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
