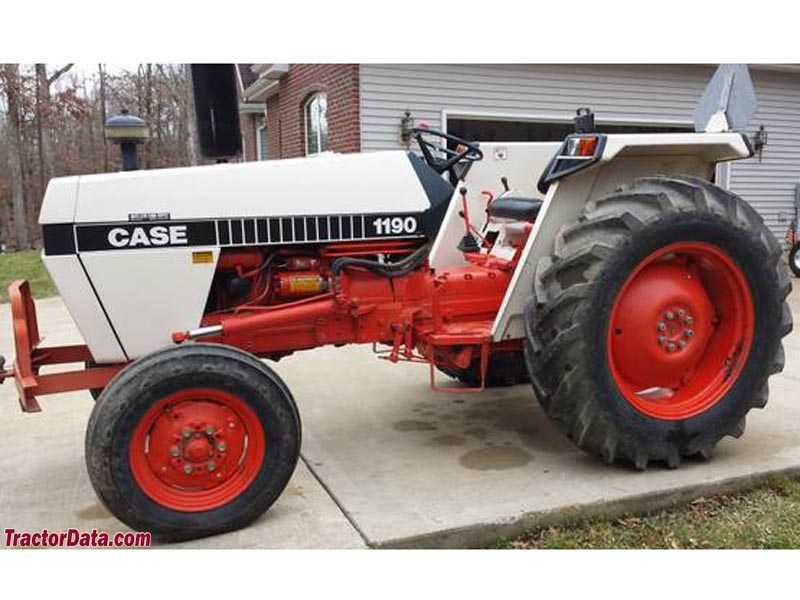

J.I. Case 1190
J.I. Case 1190 — 90 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
25.8 kW
Weight
2095 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price was $17,200 in 1983Reference
Two-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post ROPS.Reference
Engine
J.I. Case 2.7L 3-cyl dieselReference
Drawbar (tested)25.8 kWReference
J.I. CaseReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.2 LReference
Coolant capacity8.5 LReference
Power at rated engine speed32.1 kWReference
Max power25.8 kWReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Oil capacity27.3 LReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
PTO (tested)32.1 kWReference
Hydraulic system27.3 LReference
Typeopen centerReference
Capacity27.3 LReference
Valves1 or 2Reference
Pump flow27.4 lpmReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Power at rated PTO speed28.7 kWReference
Capacities
Fuel60.6 LReference
Dimensions
Wheelbase195 cmReference
Weight2095 kgReference
Front tire6.00x16Reference
Rear tire13.6x28Reference
Ag front6.00x16Reference
Ag rear13.6x28Reference
Length307 cmReference
Height (exhaust)213 cmReference
Shipping weight2095 kgReference
Max weight3175 kgReference
Clearance (front axle)40 cmReference
J.I. Case 1190 attachments
front-end loaderReference
1190 Serial Numbers
Location:Serial number stamped into the top of the tractor's frame on the right side, next to the engine.Reference
198011030101Reference
198111031792Reference
198211033166Reference
198311035592Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps26Reference
Battery volts12Reference
Test results
Diesel 12-speed 2WDMarch 27 - April 9, 1981Link: Nebraska Tractor Test 1378 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Fuel use10.6 l/hourReference
Gear 4-1 used for power test.Reference
Max pull2095 kgReference
Gear 1-3 used for pull test.Reference
Speeds
With 13.6x28 rear tires.Reference
