Tractor · 1983Unverified

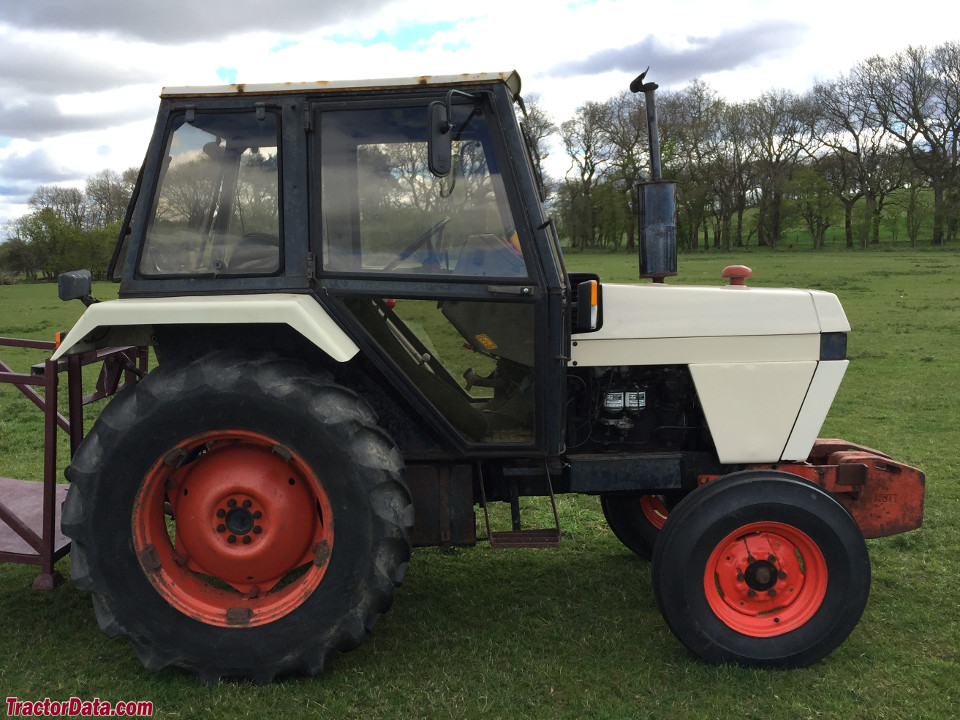

J.I. Case 1194
J.I. Case 1194 — 94 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
25.8 kW
Weight
2109 kg
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Utility tractorReference
Built in Meltham Mills, Huddersfield, EnglandReference
Original price was $17,100 in 1984Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Drum brakesReference
Cab standard.Reference
Engine
J.I. Case 2.7L 3-cyl dieselReference
Fuel tank99.9 LReference
Engine36.5 kWReference
Drawbar (tested)25.8 kWReference
J.I. CaseReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 114 mmReference
Power36.5 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque167.1 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity6.3 LReference
Coolant capacity8.5 LReference
Power at rated engine speed32.1 kWReference
Max power25.8 kWReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Oil capacity24.4 LReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
PTO (tested)32.1 kWReference
Typeopen centerReference
Pressure175.8 barReference
Valves1Reference
Pump flow26.5 lpmReference
Steering flow7.6 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)988 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed28.7 kWReference
Dimensions
Wheelbase196 cmReference
Weight2109 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag rear12.4-32Reference
Ag rear14.9-24Reference
Width177 cmReference
Height (cab)238 cmReference
Front tread132 to 182 cmReference
Rear tread142 to 193 cmReference
J.I. Case 1194 attachments
front-end loaderReference
1194 Serial Numbers
Location:On frame, right side of engineReference
198311038050Reference
198411038493Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420Reference
Battery CCA550 (heavy-duty)Reference
Battery volts12Reference
Battery AH96Reference
Battery AH128 (heavy-duty)Reference
Test results
Diesel 12-speed 2WDMarch 27 - April 9, 1981Link: Nebraska Tractor Test 1378 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Fuel use10.6 l/hourReference
Gear 4-1 used for power test.Reference
Max pull2095 kgReference
Gear 1-3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
